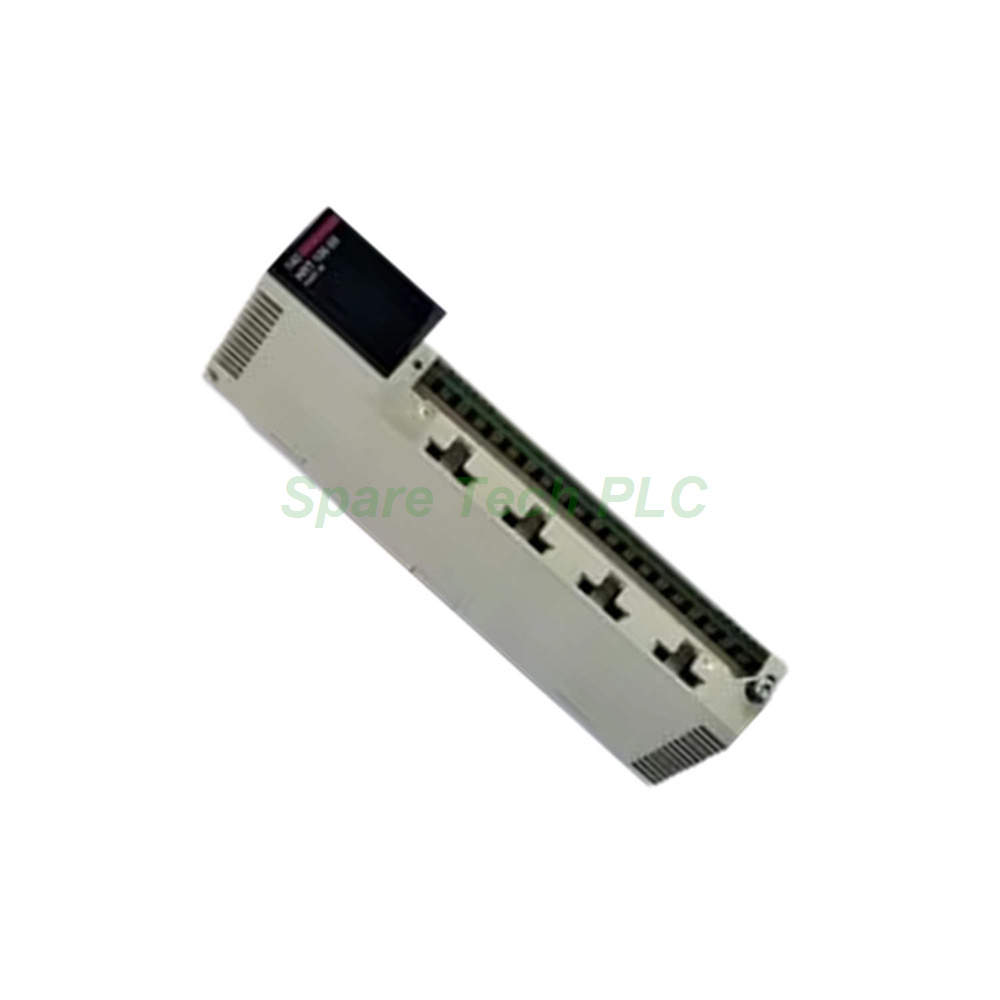

Schneider Electric 140HRT10000 Interface Module for Modicon Quantum
The 140HRT10000 belongs to Schneider Electric’s Modicon Quantum product line. This interface module focuses on reliable communication and smooth data integration. You can use it to connect different parts of your control system effectively.
Key Technical Specifications
The 140HRT10000 operates within an ambient temperature range of 0°C to 60°C. This wide range makes it suitable for many industrial settings. The module uses natural cooling, so you do not need external fans or cooling devices.
Furthermore, the operating humidity rating reaches 80% maximum without condensation. Storage humidity also stays at 80% under the same non-condensing condition. The module works without derating at altitudes up to 1000 meters above sea level.
The device meets CE standards for safety and performance. Its protection class is IP20. This rating means the 140HRT10000 is safe for dry, indoor locations where minimal dust or tool contact may occur.
Mechanical and Environmental Features
The housing uses metal material for added strength. Metal construction helps the module resist physical stress better than plastic alternatives. Additionally, the design supports mounting through screws and holes, making installation simple and secure.
Specifically, the 140HRT10000 performs well in clean environments without corrosive chemicals. The maximum ambient temperature of 60°C gives you flexibility in control cabinets with moderate heat buildup. However, avoid placing the module near high-output heat sources.
Frequently Asked Questions (FAQ)
1. What is the main purpose of the 140HRT10000?
This interface module handles communication and data integration for Modicon Quantum systems. It connects different control components reliably.
2. Can I use the 140HRT10000 outdoors?
No. The IP20 protection class only suits dry indoor environments. Outdoor use would expose the module to moisture and dust.
3. Why does the 140HRT10000 use natural cooling?
Natural cooling eliminates moving parts like fans. This design improves reliability and reduces maintenance needs over time.
4. What happens if the temperature exceeds 60°C?
The module may overheat and lose communication stability. Permanent damage could occur if high temperatures continue for long periods.
5. Does the 140HRT10000 work with other Modicon series?
It is specifically designed for the Modicon Quantum line. Compatibility with other series is not guaranteed. Always check your system’s documentation first.
