Modicon Quantum 140ERT85410IAT SOE Module

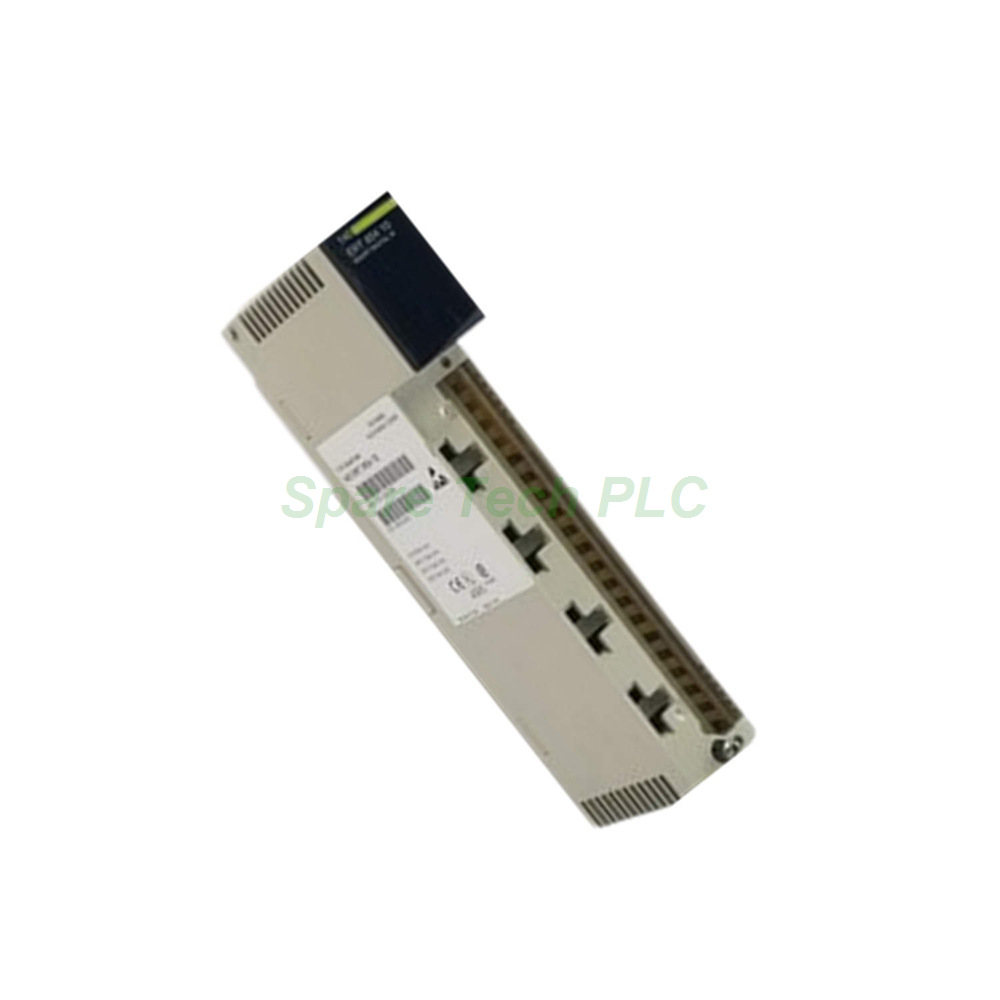

Schneider 140ERT85410IAT Sequence of Events Module

Product Introduction

The 140ERT85410IAT from Schneider Electric belongs to the Modicon Quantum automation platform. This module specializes in capturing sequence of events data. It records precise timing for input changes and output changes. Additionally, it supports alarm handling for critical process conditions.

Manufacturers use this module when millisecond accuracy matters. For instance, it helps diagnose intermittent faults in high speed lines. Therefore, the 140ERT85410IAT improves troubleshooting efficiency in complex machines.

You can manually activate certain functions. This gives operators more control during testing or maintenance. Furthermore, the module integrates smoothly with existing Quantum I/O structures.

Technical Specifications

The 140ERT85410IAT focuses on event tracking rather than traditional I/O counts. It monitors both input and output state changes. Each change receives a timestamp with high precision. This timing data helps you reconstruct exactly what happened before a fault.

Alarm detection is a core feature. The module flags abnormal conditions automatically. Manual activation allows operators to trigger events or tests on demand. These capabilities make the 140ERT85410IAT valuable for safety critical processes.

The module supports three main application areas. First, material handling systems benefit from tracking sensor activations. Second, packaging machines use event sequences to optimize timing. Third, textile equipment relies on precise event ordering for quality control.

Operating Conditions

The ambient operating temperature ranges from 0 to 40 degrees Celsius. Storage temperature ranges from 0 to 50 degrees Celsius. This narrow range differs from standard I/O modules. Therefore, you must ensure proper cabinet ventilation.

Maximum operating humidity is 80 percent relative humidity, non condensing. Storage humidity also stays at 80 percent maximum. Condensation is not allowed in either case. Keep the module dry at all times.

Operating altitude reaches up to 1000 meters above sea level. Storage altitude has the same 1000 meter limit. This restriction means the 140ERT85410IAT is not suitable for high altitude installations. Most factory floors fall within this range.

The module requires a clean indoor environment. No corrosive chemicals should be present. Exposure to solvents, acids, or alkaline vapors will damage the electronics. Install the module in a controlled panel environment.

Environmental Limitations Compared to Standard Modules

Standard Quantum I/O modules typically operate from 0 to 60 degrees Celsius. They also tolerate altitudes up to 5000 meters. The 140ERT85410IAT has tighter limits. Operating temperature stops at 40 degrees Celsius. Altitude stops at 1000 meters.

This difference exists because of the high precision timing circuitry. Temperature stability affects clock accuracy. Therefore, keep the module away from heat sources like large drives or transformers.

Similarly, altitude affects air cooling efficiency. At 1000 meters and above, standard modules may still work. However, the 140ERT85410IAT requires denser air for proper thermal management. Respect these limits for reliable event timing.

Frequently Asked Questions

1. Can the 140ERT85410IAT replace a standard digital input module?
   No. This module is designed for event timing, not general purpose I/O. Use standard input modules for normal control tasks. Add this SOE module only for diagnostic purposes.

2. Why does this module have lower temperature and altitude limits?
   High precision timing requires stable operating conditions. Temperature changes affect crystal oscillator accuracy. Altitude affects cooling efficiency. Respect these limits to maintain timing precision.

3. How accurate is the time stamping on the 140ERT85410IAT?
   Typical accuracy is within one millisecond. Exact specifications depend on your configuration and backplane timing. Consult the Quantum SOE manual for detailed performance data.

4. Does this module work with all Modicon Quantum CPUs?
   Most Quantum CPUs support SOE functionality. However, older CPUs may lack the required firmware. Check your CPU model against Schneider Electric's compatibility list before ordering.

5. Can I use this module outdoors or in unheated warehouses?
   No. The operating temperature range is 0 to 40 degrees Celsius. Outdoor or unheated spaces often fall outside this range. Use the module only in temperature controlled indoor panels.
