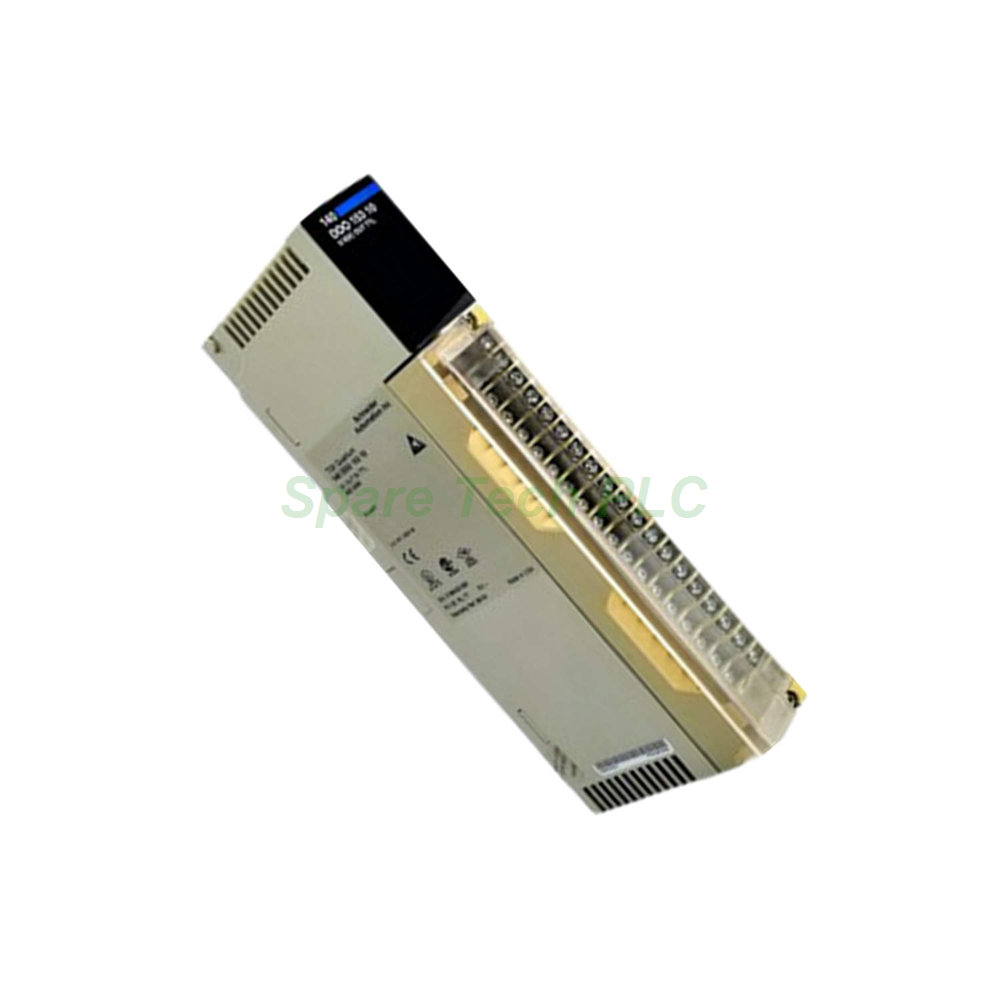

Modicon Quantum 140DDO15310C TTL Output Module

Schneider 140DDO15310C Discrete Output Module

Product Introduction

The 140DDO15310C from Schneider Electric belongs to the Modicon Quantum automation platform. This module delivers 32 TTL positive sink discrete outputs. Each channel operates at 5 V DC and supports source currents up to 75 mA per point.

You need two output words for addressing. This simplifies integration into larger control architectures. Additionally, the internal pullup resistor is rated at 440 ohms. It ensures stable signal levels even with long cable runs.

Manufacturers use this module for digital signal distribution to TTL compatible devices. For instance, it drives LED indicators, counters, or logic circuits. Therefore, the 140DDO15310C bridges PLC logic to low voltage digital loads.

Technical Specifications

The 140DDO15310C offers four isolated groups of eight channels each. Each group withstands 500 Vrms isolation for one minute. Consequently, cross group interference stays minimal.

Output voltage sits at 5 V DC nominal. The guaranteed voltage state 1 is less than or equal to 0.2 V. Absolute maximum output reaches 15 V decaying pulse within 0.0013 seconds. Surge current handling is 750 A for 0.5 ms between points. This protects against sudden electrical spikes.

Response times are fast. State 0 to 1 takes less than or equal to 250 microseconds resistive. State 1 to 0 also takes less than or equal to 250 microseconds resistive. Meanwhile, maximum load current per module is less than or equal to 2.4 A. Each group handles less than or equal to 600 mA, while each point handles less than or equal to 75 mA.

Power dissipation equals 4 W. Bus current requirement is 350 mA. Maximum supply current reaches 0.4 A. These values help you calculate your system power budget accurately.

Protection includes transient voltage suppression and an internal fuse. A blown fuse triggers a fault indication. Loss of field power also triggers a fault LED. Therefore, troubleshooting becomes straightforward.

Environmental and Mechanical Data

The module operates between 0 and 60 degrees Celsius ambient temperature. Storage temperature ranges from -40 to 85 degrees Celsius. Relative humidity tolerates 95 percent without condensation. Additionally, operating altitude reaches up to 5000 meters.

Protective treatment uses conformal coating. This coating resists moisture and dust. Moreover, certifications include UL 508, CSA C22.2 No 142, FM Class 1 Division 2, and GOST. These meet international safety standards.

EMC resistance is robust. Electrostatic discharge withstands 4 kV contact and 8 kV air. Electromagnetic field resistance reaches 9.1 V/m from 80 to 2000 MHz. Thus, the 140DDO15310C performs reliably near motors or radio transmitters.

Net weight is only 0.45 kg. Dimensions are 16.3 cm height, 4.5 cm width, and 31.2 cm length. This compact footprint saves space in crowded control cabinets.

Installation Guidelines

First, ensure the backplane supplies 5 V DC within 4 to 5.5 V range. The module draws 350 mA from the bus. Next, insert the 140DDO15310C into any standard Modicon Quantum I O slot. Secure it with the built in locking mechanism.

Then, wire outputs using appropriate gauge wires. Each group shares a common return. Respect polarity for TTL positive sinking outputs. Furthermore, keep signal wires away from high power cables. This reduces noise coupling.

Finally, configure the addressing in your PLC program. Use two consecutive output words. One word controls channels 0 to 15, the other channels 16 to 31. Test each channel with a resistive load before connecting sensitive TTL inputs.

Common Applications

The 140DDO15310C works well in semiconductor handling equipment. It also suits printed circuit board testers. Many automation engineers use it for controlling LED arrays or optocouplers. Additionally, it drives small solid state relays for higher voltage switching.

Because of its conformal coating, this module excels in food processing or chemical plants. Humidity or mild contaminants will not degrade performance. For instance, bottling lines benefit from its fast response time. Similarly, packaging machines use it to fire solenoids through interface circuits.

Frequently Asked Questions

1. Does the 140DDO15310C work with 24V DC loads?
   No. This module provides only 5V TTL signals. For 24V loads, use a different output module or add interface relays.

2. What happens if one output channel shorts to ground?
   The internal fuse protects the module. However, the entire group may shut down. Replace the fuse after removing the short.

3. Can I use this module with a non Schneider PLC backplane?
   No. The 140DDO15310C follows the Modicon Quantum proprietary bus. It requires a Schneider Electric Quantum backplane.

4. How do I know if the conformal coating is damaged?
   Visually inspect for peeling or bubbles. Coating damage may reduce moisture protection. Reapply the same coating material if needed.

5. What is the maximum cable length for reliable TTL signals?
   Keep cables under 10 meters. Longer runs may cause signal degradation due to voltage drop and noise. Use shielded cables for lengths above 3 meters.
