Schneider 140DDI85300 Quantum Discrete Input Module

Schneider 140DDI85300 Modicon Quantum 32-Channel DC Input Module

Product Introduction

The 140DDI85300 is a high-density discrete input module designed for the Modicon Quantum automation system. It provides 32 input channels organized into four isolated groups, each accepting DC voltages from 10 to 60 volts. This wide operating range makes the module compatible with various field devices, including proximity sensors, limit switches, and pushbuttons. The positive logic (sink) configuration ensures straightforward wiring with standard DC power supplies. Furthermore, the module delivers a fast 4 ms response time, which supports high-speed counting and time-critical control applications. With robust isolation ratings and full compliance with international standards, the 140DDI85300 guarantees reliable performance in demanding industrial settings.

Key Technical Specifications

Input Characteristics and Voltage Ranges

The 140DDI85300 accepts a broad DC input voltage span from 10 V to 60 V, with guaranteed ON-state thresholds varying by nominal voltage. For 12 V systems, the ON voltage ranges from 9 to 12 V; for 24 V, it spans 11 to 24 V; for 48 V, it covers 34 to 48 V; and for 60 V, it extends from 45 to 60 V. Meanwhile, the OFF-state voltages are clearly defined to prevent false triggering: below 1.8 V for 12 V, below 5 V for 24 V, below 10 V for 48 V, and below 12.5 V for 60 V. The absolute maximum input voltage reaches 75 V, offering a safety margin against transient overvoltages. Each channel draws current proportional to the applied voltage, ranging from 1 mA at 60 V up to 30 mA at 24 V, which ensures compatibility with diverse sensor outputs.

Channel Grouping and Addressing

The 32 inputs are organized into four groups of eight channels each, providing flexible wiring arrangements and simplifying troubleshooting. This module requires 2 input words of addressing space within the Quantum rack, making it efficient for large I/O configurations. Moreover, the grouping allows for group-level isolation, which enhances system reliability by containing faults within a single group.

Response Time and Switching Frequency

The 140DDI85300 delivers a consistent 4 ms response time for both OFF-to-ON and ON-to-OFF transitions, ensuring deterministic behavior in control loops. The maximum switching frequency is rated at 100 Hz, which accommodates moderate-speed counting and position sensing applications. Therefore, this module works well in packaging machinery, conveyor systems, and material handling equipment.

Isolation and Protection

This module provides excellent electrical isolation to protect the control system from field wiring faults. The isolation between any input group and the bus is rated at 2500 Vrms for 1 minute, while isolation between groups is 700 Vrms for 1 minute. Such high isolation levels prevent ground loops and shield the CPU from damaging surges. Additionally, the power dissipation is calculated as 1 W plus 0.25 W for each active input, allowing you to estimate thermal load within the cabinet.

Mechanical and Environmental Specifications

Power Consumption and Physical Dimensions

The 140DDI85300 draws 300 mA from the 5 V DC bus, which is relatively low for a 32-channel module. Its standard format fits any slot in a Modicon Quantum chassis, and the compact dimensions (16.3 x 4.5 x 31.2 cm) optimize panel space. The net weight is only 0.295 kg (0.650 lb), making it lightweight for easy handling during installation.

Environmental Ratings and Certifications

This module carries an IP20 protection rating, suitable for installation in protected control cabinets. It complies with EN/IEC 61131-2, UL 508, CSA C22.2 No 142, and is certified for hazardous locations (Class 1, Division 2). The operating temperature ranges from 0 °C to 60 °C (32 °F to 140 °F) , while storage allows -40 °C to 85 °C (-40 °F to 185 °F). Furthermore, it withstands 95% relative humidity without condensation and operates at altitudes up to 5,000 meters (16,404 ft). For electromagnetic immunity, it resists 4 kV contact discharge and 8 kV air discharge (IEC 801-2), plus 9.1 V/m radiated fields from 80 to 2000 MHz (IEC 801-3).

Local Status Indication

The 140DDI85300 features 33 LEDs for clear visual diagnostics. One green LED indicates active bus communication, while 32 individual green LEDs show the ON/OFF status of each input channel. Consequently, maintenance staff can quickly identify wiring issues or sensor faults without needing a programming terminal.

Installation Guidelines

Installing the 140DDI85300 is a simple process. First, ensure the rack power supply is turned off before inserting the module into any standard slot of the Modicon Quantum backplane. Push the module firmly until the locking mechanism engages. Next, connect the field wiring to the removable terminal block, observing the correct polarity for positive logic (sink) configuration. Each group shares a common return, so plan your wiring accordingly to avoid exceeding the group's current capacity. After wiring, apply power and check the green Active LED to confirm communication with the CPU. Finally, test each input by actuating the connected field devices and verifying the corresponding channel LED illuminates. For optimal performance, keep the module away from high-heat sources and ensure adequate ventilation within the cabinet.

Packaging List

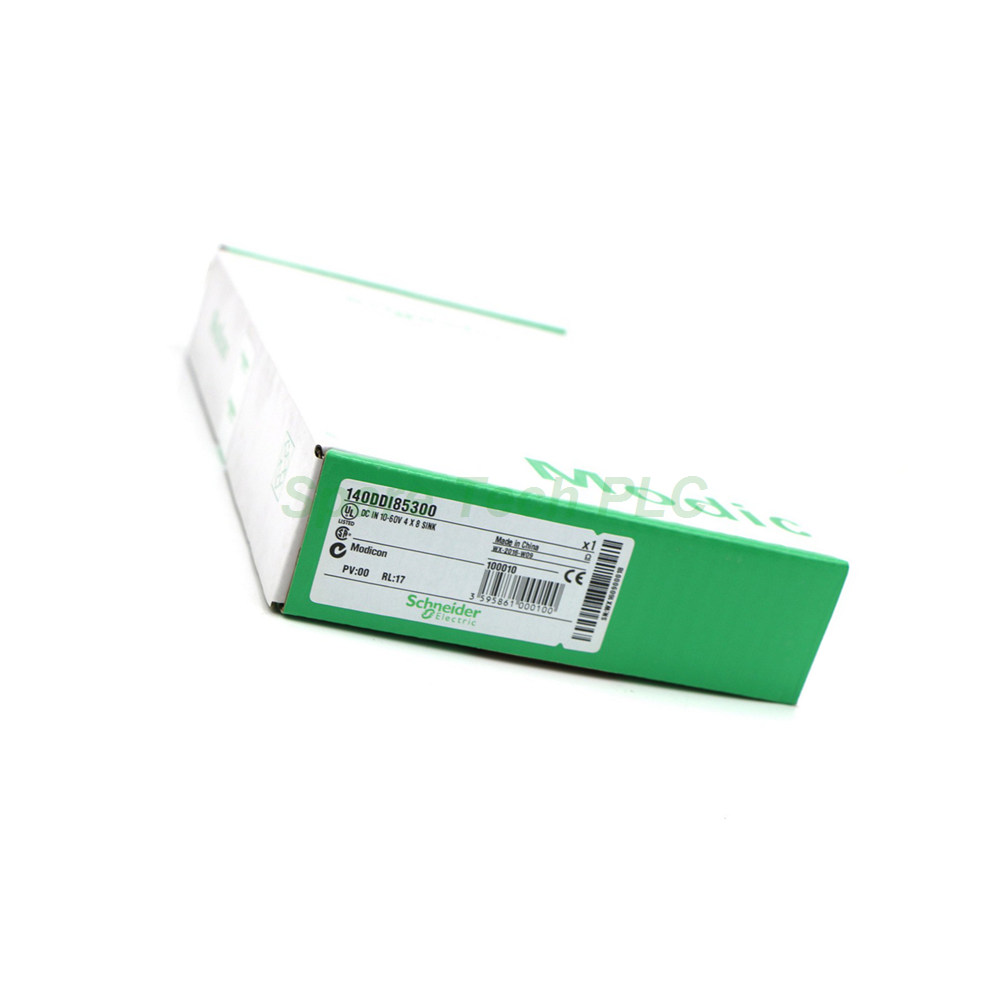

The shipping package for the 140DDI85300 includes:

• One 140DDI85300 discrete input module

• One 32-position removable terminal block (screw type)

• One printed quick-start guide (multilingual)

• One plastic anti-static bag for safe handling

Note: Field wiring cables, mounting hardware, and configuration software are sold separately.

Shipping Information

All orders are dispatched via FedEx, UPS, or DHL with full tracking and insurance coverage. Standard delivery typically takes 3-7 business days, depending on the destination. Expedited shipping options are available upon request.

Frequently Asked Questions

1. Can the 140DDI85300 accept both NPN and PNP sensor outputs?
The 140DDI85300 uses positive logic (sink), meaning it works with PNP (sourcing) sensors. For NPN sensors, you would need a different module or an interposing relay.

2. What happens if I apply voltage above 75 V to an input?
Exceeding the absolute maximum voltage of 75 V may damage the input circuit permanently. We recommend installing surge suppressors or external fuses for protection.

3. How do I connect a 2-wire proximity sensor to this module?
Connect the sensor's positive lead to the input terminal and the negative lead to the group's common terminal. Ensure the sensor's leakage current is below the OFF-state threshold to avoid false triggering.

4. Can I use this module in a redundant Quantum system?
Yes. The 140DDI85300 works in standard Quantum racks, and redundant systems typically use dual racks with separate I/O modules. Consult your system integrator for specific redundancy configurations.

5. Is the response time adjustable through software?
No. The 4 ms response time is fixed by hardware design. For faster response, consider using the 140DDI85300 with a high-speed counter module or a different I/O family.
