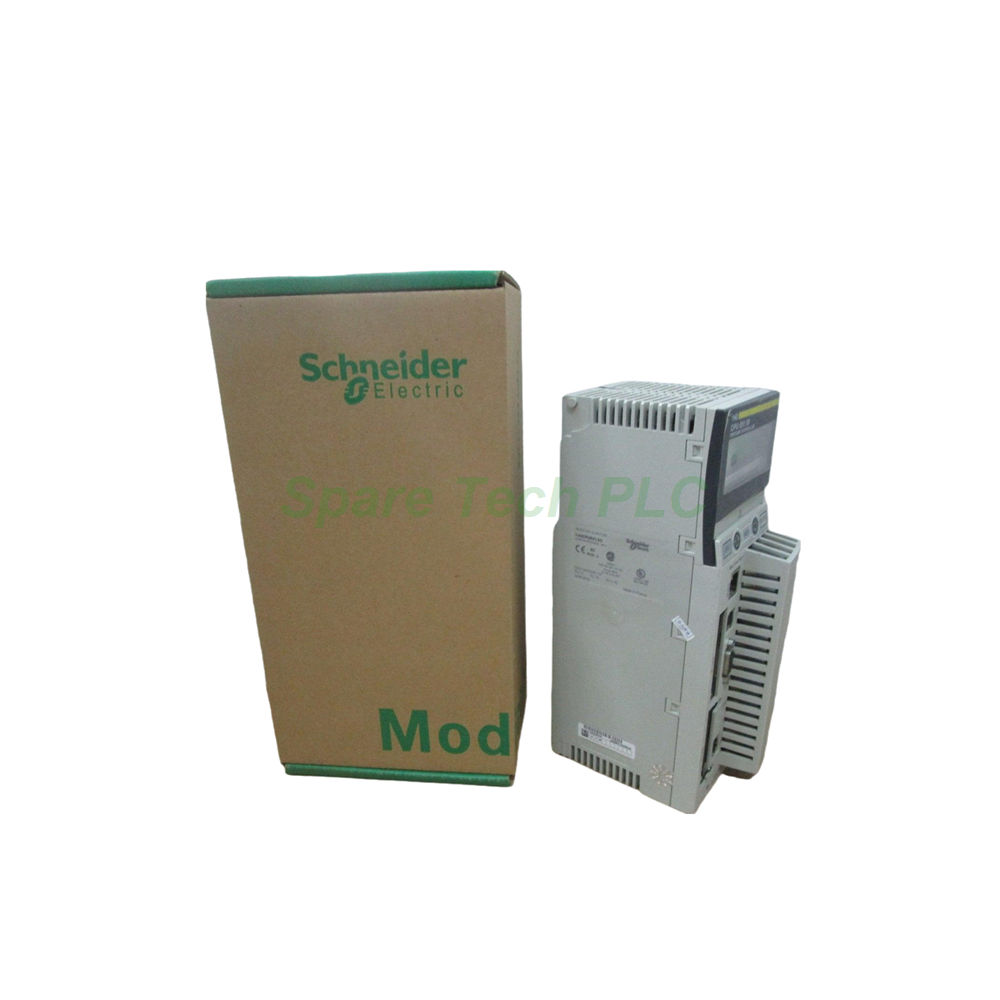

The 140CPU65150 is a powerful Unity processor designed for the Modicon Quantum automation platform, delivering robust control capabilities for medium to large industrial applications. Operating at a clock frequency of 166 MHz, this CPU provides outstanding execution speed, processing 10.28 Kinstructions per millisecond for Boolean logic and 10.07 Kinst/ms for mixed Boolean and numerical operations. The 140CPU65150 comes with 768 kB of internal RAM and supports memory expansion via PCMCIA cards, offering up to 7168 kB for program storage and 8 MB for file storage. Furthermore, it features integrated Modbus Plus, Ethernet TCP/IP, Modbus, and USB connectivity, making it a versatile controller for modern automation architectures. With support for up to 31 remote I/O stations and extensive distributed I/O capabilities, this processor excels in complex, distributed control environments.

Key Technical Specifications

Processing Performance and Memory

The 140CPU65150 runs at 166 MHz, delivering exceptional processing power for demanding control algorithms. Its internal RAM of 768 kB accommodates large application programs, while the PCMCIA expansion slot allows program memory to grow to 7168 kB and file storage to 8 MB. This flexibility ensures the 140CPU65150 can handle evolving application requirements without hardware replacement. The processor supports multiple task structures, including one cyclic/periodic master task, one periodic fast task, 128 I/O interrupt tasks, 128 interrupt tasks, 32 timer interrupt tasks, and four auxiliary tasks. Such extensive task management enables precise real-time control across diverse processes.

Communication Capabilities

This Unity processor offers comprehensive built-in communication ports. It includes one Modbus Plus port (SUB-D 9 connector), one Ethernet TCP/IP port (RJ45), one Modbus port (RJ45), and one USB port for programming and diagnostics. Additionally, the 140CPU65150 supports up to six optional communication modules, including Ethernet, Modbus, Modbus Plus, Profibus DP, and Sy/Max. The maximum connection counts are impressive: 6 Ethernet TCP/IP local connections, 6 Modbus Plus local connections, 6 Profibus DP local connections, 1 USB, and 1 Modbus RS232/485 connection. Consequently, this processor serves as an excellent Ethernet router within the control network.

I/O Capacity and Station Support

The 140CPU65150 supports an extensive I/O footprint. For local I/O, the processor accommodates up to 26 slots across various rack configurations (2, 4, 6, 10, or 16 slots). It handles up to 31 remote I/O stations using S908 remote I/O and up to 31 Ethernet Quantum remote I/O stations, plus 16 Ethernet X80 remote I/O stations. For distributed I/O via Modbus Plus, it supports 63 stations. The discrete I/O capacity reaches 31,744 inputs and 31,744 outputs for remote configurations, while analog I/O supports 1,984 inputs and 1,984 outputs for S908 remote I/O. Furthermore, the 140CPU65150 supports application-specific I/O including accurate time stamping, serial links, high-speed interrupt inputs, and counter functions.

System Overhead and Bus Current

The processor maintains efficient system overhead, with a fast task overhead of 0.2 ms and a master task overhead of 1 ms. This low overhead ensures responsive control even under heavy processing loads. The bus current requirement is 2160 mA at 5 V DC, which is typical for a high-performance Quantum CPU. The key switch memory port offers convenient on/off protection for program memory, preventing unauthorized modifications.

Mechanical and Environmental Specifications

Physical Dimensions and Weight

The 140CPU65150 comes in a standard module format compatible with all Quantum racks. Its package dimensions measure 11.0 x 18.5 x 32.5 cm, while the net weight is approximately 1.434 kg (3.161 lb) . This robust construction ensures durability in industrial environments.

Environmental Ratings and Certifications

This processor carries comprehensive certifications including UL, CE, CSA, GOST, and marine approvals (Misc Marine). It also meets HazLoc standards for hazardous locations. The operating temperature ranges from 0 °C to 60 °C (32 °F to 140 °F) , with storage temperatures from -40 °C to 85 °C (-40 °F to 185 °F). Relative humidity tolerance reaches 95% without condensation, and the operating altitude extends up to 5,000 meters.

Local Status Indication

The 140CPU65150 provides clear diagnostic feedback through two LEDs. A green LED indicates Ethernet activity (COM), while a red LED signals Ethernet collisions. These indicators assist network troubleshooting and verify communication status at a glance.

Installation Guidelines

Installing the 140CPU65150 requires careful attention to rack configuration and power requirements. Begin by inserting the processor into the designated CPU slot of the Quantum rack—typically the leftmost slot for optimal backplane communication. Ensure the rack power supply can deliver the required 2160 mA bus current, especially when populating multiple high-current modules. Connect the Modbus Plus network using the SUB-D 9 connector with proper termination resistors at both ends. For Ethernet connectivity, use a standard CAT5e or better cable with the RJ45 port. The Modbus port connects to field devices or programming terminals via the RJ45 connector. Finally, use the USB port for direct programming access with Unity Pro software. Before powering up, verify the key switch position—set it to "memory port on" for normal operation or "off" to protect the program. After power application, monitor the COM LED to confirm network activity.

Packaging List

The shipping package for the 140CPU65150 includes:

• One 140CPU65150 Unity processor module

• One protective dust cap for the SUB-D 9 connector

• One printed quick-start guide (multilingual)

• One anti-static protective bag

Note: Programming software (Unity Pro), communication cables, and PCMCIA memory cards are sold separately.

Shipping Information

All orders are dispatched via FedEx, UPS, or DHL with comprehensive tracking and insurance. Standard delivery typically takes 3-7 business days depending on the destination. Express shipping options are available upon request.

Frequently Asked Questions

1. Can the 140CPU65150 be used in a redundant hot-standby configuration?
Yes. The 140CPU65150 supports Quantum hot-standby redundancy when paired with a second processor and appropriate synchronization modules, ensuring seamless failover for critical processes.

2. What is the maximum program size this CPU can handle?
The internal RAM provides 768 kB, but with a PCMCIA expansion card, the program memory can extend to 7168 kB, accommodating very large automation applications.

3. Does this processor support the latest Unity Pro software versions?
Yes. The 140CPU65150 works with Unity Pro software versions that support Quantum platforms. We recommend using the latest version for full feature compatibility.

4. How many remote I/O drops can I connect via Ethernet?
The 140CPU65150 supports up to 31 Ethernet Quantum remote I/O drops and 16 Ethernet X80 remote I/O drops, providing extensive distributed I/O capabilities.

5. What is the purpose of the USB port on this processor?
The USB port serves as a direct programming and diagnostics interface, allowing fast upload/download of applications and real-time monitoring without requiring network configuration.
