Schneider 140DDI15310 32-Channel DC Input Module

140DDI15310 Modicon Quantum Discrete Input Module

Product Introduction

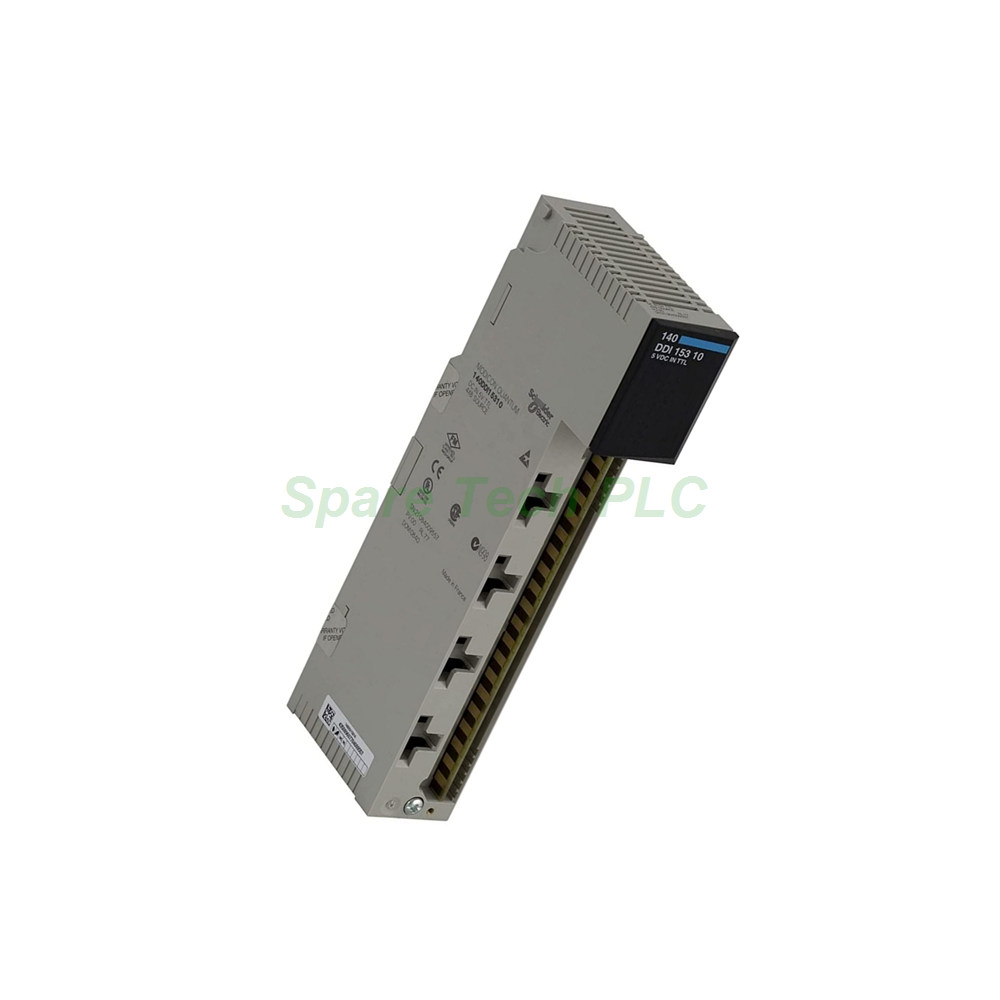

The Schneider Electric 140DDI15310 is a high-density discrete input module engineered for the Modicon Quantum automation platform. Specifically, it delivers 32 input channels that are organized into four distinct groups of eight. Furthermore, this module employs negative logic, which makes it compatible with a wide range of DC sensors and proximity switches.

What sets the 140DDI15310 apart is its exceptional speed and density. For instance, the response time from state 0 to state 1 reaches just 250 microseconds. Moreover, the module incorporates built-in input protection, which safeguards against voltage transients and overcurrent conditions. Consequently, this unit proves ideal for high-speed counting, position sensing, and general-purpose discrete monitoring.

In addition, the addressing requirement of only two input words simplifies system configuration. Therefore, the 140DDI15310 integrates seamlessly into complex control architectures without consuming excessive memory resources.

Technical Specifications

Input Characteristics
To begin with, the module offers 32 discrete input channels. These channels divide into four groups, with each group containing 8 individually isolated inputs. Meanwhile, the input logic follows a negative (sink) configuration – meaning the input activates when the signal drops to the DC common (0V). Additionally, the nominal input voltage is 5V DC, with an allowable range between 4.5V and 5.5V DC.

Electrical Ratings
First, the input current rating stands at 4 mA per channel. Next, the input impedance measures 7500 Ohms, which ensures minimal loading on field sensors. Moreover, the maximum leakage current should not exceed 200 mA, preventing false triggering. Furthermore, the absolute maximum input voltage reaches 15V – exceeding this threshold may cause permanent damage.

Addressing and Memory
Specifically, the module requires 2 input words for addressing in the rack configuration. Therefore, it occupies two consecutive input registers in the system memory map. This efficient addressing scheme makes the 140DDI15310 easy to program and integrate.

Response Times
For speed, the turn-on time from state 0 to state 1 measures ≤ 250 µs. Similarly, the turn-off time from state 1 to state 0 measures ≤ 500 µs. Consequently, this module captures fast-changing signals such as encoder pulses or high-speed proximity sensor outputs.

Protection Features
The module includes built-in input protection against overvoltage and transient spikes. Additionally, the internal circuitry limits current to safe levels during fault conditions. Therefore, connected field devices and the module itself remain safe from electrical damage.

Power Dissipation
The total power dissipation is rated at 5W. Meanwhile, this figure assumes all 32 inputs are simultaneously energized. Thus, adequate ventilation within the control cabinet helps maintain stable operating temperatures.

Mechanical and Environmental Parameters

Physical Dimensions
In terms of size, the module measures 100 mm in height, 40 mm in width, and 130 mm in depth. Therefore, it occupies only one standard slot in the Modicon Quantum backplane – preserving space for other I/O modules.

Weight
The net weight is 0.45 kg (0.99 lbs). Meanwhile, the shipping weight – including packaging – reaches approximately 0.55 kg (1.21 lbs).

Temperature Ranges
For operation, the ambient temperature ranges from 0°C to 60°C (32°F to 140°F). For storage, it withstands temperatures from -40°C to 85°C (-40°F to 185°F). Thus, the 140DDI15310 performs reliably across diverse climate conditions.

Humidity and Altitude
The relative humidity tolerance reaches 95% without condensation. In addition, the maximum operating altitude extends to 5000 meters (16,404 feet). Consequently, this module suits high-elevation installations such as mountain processing plants.

Certifications and Standards
The module carries UL 508 and CSA C22.2 No 142 certifications for North American compliance. Additionally, it holds FM Class 1 Division 2 approval for hazardous locations. Furthermore, CE marking covers European market requirements.

EMC Immunity
For electrostatic discharge, it withstands 4 kV contact and 8 kV air discharges per IEC 801-2. Meanwhile, for electromagnetic fields, it resists 9.1 V/m (10 V/m) over 80–2000 MHz per IEC 801-3. Therefore, it operates stably in electrically noisy industrial environments.

Installation Guidance

First, ensure the Modicon Quantum rack is completely powered down before installation. Next, insert the 140DDI15310 into any available standard slot. However, pay attention to addressing requirements – this module needs two input words in the rack configuration.

After physical placement, wire your field sensors to the removable terminal block. Since this module uses negative logic (sink), connect the positive side of your 5V DC supply to the sensor. Then, connect the sensor output to the module input terminal. When the sensor activates, it pulls the input to DC common, signaling an ON state.

Moreover, distribute input wiring across the four groups to simplify troubleshooting. Each group has its own return path, so a fault in one group does not affect the others. Finally, use shielded twisted-pair cables for long runs to minimize noise pickup.

Packaging List

Your shipment of the 140DDI15310 includes the following items:

• Schneider Electric 140DDI15310 discrete input module (1 unit)

• Removable terminal block (pre-installed on the module)

• Anti-static protective bag for safe handling

• Quick-start installation reference card

• Mounting screws (2 pieces, pre-attached)

Note: Field wiring, sensors, external power supplies, and termination accessories are not included. Please order these separately.

Shipping and Delivery

We dispatch all orders through FedEx, UPS, or DHL – selecting the best carrier based on your destination. Each package is carefully cushioned and tracked throughout transit. Typical delivery times range from 3 to 7 business days internationally. Expedited shipping options are available upon request.

Frequently Asked Questions (FAQ)

Q1: Can I use the 140DDI15310 with 24V DC sensors?
No. The 140DDI15310 operates strictly at 5V DC (4.5–5.5V range). Using 24V sensors will damage the module. For 24V applications, consider the 140DDI35300 or 140DDI85300 modules instead.

Q2: What is the difference between "negative logic" and "positive logic"?
Negative logic means the input activates when the signal drops to the DC common (0V). Positive logic activates when the signal rises to a high voltage. The 140DDI15310 uses negative logic – verify that your sensors match this configuration.

Q3: Can I mix inputs from different voltage sources within the same module?
No. All 32 inputs share a common voltage reference. Therefore, you must use a single 5V DC supply for all connected field devices.

Q4: How do I know if an input channel is defective?
The module does not include per-channel status LEDs. However, you can monitor the input status through your PLC programming software. Additionally, check the module's active LED and system diagnostics for fault indications.

Q5: What happens if I exceed the absolute maximum voltage of 15V?
Exceeding 15V will likely damage the input circuitry permanently. The internal protection handles brief transients, but sustained overvoltage conditions will destroy the module. Always verify your sensor power supply before connecting.
