Schneider 140DDO88500 12-Channel DC Output Module

140DDO88500 Modicon Quantum DC Output Module

Product Introduction

The Schneider Electric 140DDO88500 is a high-density discrete output module for the Modicon Quantum automation platform. Specifically, it provides 12 output channels arranged in two isolated groups of six. Furthermore, this module uses negative logic – commonly called sink output – which ensures compatibility with many DC actuators and solenoids.

What makes the 140DDO88500 particularly robust is its comprehensive protection suite. For instance, each output group includes short-circuit protection and varistor-based overvoltage clamping. Moreover, internal fusing adds an extra layer of security against sustained faults. These features collectively safeguard both the module and your connected field devices.

In addition, the wide voltage range of 24V to 125V DC gives you exceptional flexibility. Therefore, you can integrate the 140DDO88500 with various load types without worrying about compatibility issues. Consequently, this module is a popular choice for automotive assembly lines and material handling systems.

Technical Specifications

Output Characteristics
To begin with, the module offers 12 discrete output channels. These channels divide into two groups, with each group containing 6 individually isolated outputs. Meanwhile, the output logic follows a negative logic (sink) configuration – meaning the output switches the load to the DC common (0V). Additionally, the output voltage range spans from 24V to 125V DC, with limits between 19.2V and 156.2V DC.

Current Ratings
First, each point (channel) handles up to 0.75A at temperatures between 0°C and 40°C. Next, each group supports a maximum of 3A under 0°C to 60°C conditions. Moreover, the entire module can deliver up to 6A across all 12 channels simultaneously. Furthermore, the surge current capability reaches 4A for up to 1 ms, which effectively handles inrush from inductive loads.

Response Times
Specifically, the turn-on time measures 1 ms typical from state 0 to state 1. Similarly, the turn-off time also takes 1 ms from state 1 to state 0. Therefore, these fast switching speeds support high-speed control loops and precise timing applications.

Load and Protection Features
For protection, the module integrates short-circuit detection that limits excessive current automatically. Additionally, a varistor per group provides overvoltage clamping, which suppresses voltage spikes from inductive load switching. Meanwhile, load inductance has no limit when using an external freewheeling diode across the load. Furthermore, an internal 4A fuse per group offers backup protection against sustained overloads. However, the switching frequency should not exceed 50 Hz for reliable operation.

Tungsten Load Capacity
For tungsten loads, the capacity reaches 41W at 115V and 46W at 130V. Meanwhile, at 24V, it handles up to 8W. These ratings make the 140DDO88500 suitable for incandescent indicator applications.

Fault Indication and Diagnostics
A red LED labeled "F" illuminates when an external fault such as overcurrent occurs. Meanwhile, 16 green LEDs display the real-time status of each output channel. In addition, a green "Active" LED confirms that communication with the backplane bus is present. Therefore, diagnostics become straightforward and intuitive.

Isolation Ratings
Between channels and the backplane bus, isolation reaches 2500 Vrms for 1 minute. Furthermore, between output groups, isolation measures 1200 Vrms for 1 minute. Consequently, each group can operate at different voltage potentials without interference.

Power Consumption
The bus current draw measures 375 mA when 6 outputs are energized. Moreover, it increases to 650 mA when all 12 outputs are on. Additionally, power dissipation follows the formula: 1 W + (0.77 × number of active outputs). For example, with all 12 channels active, dissipation equals approximately 10.24W.

Mechanical and Environmental Parameters

Physical Dimensions
In terms of size, the module measures 100 mm in height, 40 mm in width, and 130 mm in depth. Therefore, it occupies only one standard slot in the Modicon Quantum backplane.

Weight
The net weight is 0.45 kg (0.99 lbs). Meanwhile, the shipping weight – including packaging – reaches approximately 0.52 kg (18.2 oz).

Temperature Ranges
For operation, the ambient temperature ranges from 0°C to 60°C (32°F to 140°F). For storage, it withstands temperatures from -40°C to 85°C (-40°F to 185°F). Thus, the 140DDO88500 performs reliably across diverse climate conditions.

Humidity and Altitude
The relative humidity tolerance reaches 95% without condensation. In addition, the maximum operating altitude extends to 5000 meters (16,404 feet). Consequently, this module suits high-elevation installations such as mountain mining facilities.

Certifications and Standards
The module carries UL 508 and CSA C22.2 No 142 certifications for North American compliance. Additionally, it holds FM Class 1 Division 2 approval for hazardous locations. Furthermore, C-tick (Australia) and RMRS (Russian Maritime Register) broaden its application scope. Moreover, GOST certification covers Russian market requirements.

EMC Immunity
For electrostatic discharge, it withstands 4 kV contact and 8 kV air discharges per IEC 801-2. Meanwhile, for electromagnetic fields, it resists 9.1 V/m (10 V/m) over 80–2000 MHz per IEC 801-3. Therefore, it operates stably in electrically noisy industrial environments.

Installation Guidance

First, ensure the Modicon Quantum rack is completely powered down before installation. Next, insert the 140DDO88500 into any available standard slot. However, pay attention to addressing requirements – this module needs one input word and one output word in the rack configuration.

After physical placement, wire your field devices to the removable terminal block. Since this module uses negative logic (sink), connect the positive side of your DC supply directly to the load. Then, connect the negative (common) side to the output terminal. When the output turns on, it completes the circuit to common. For inductive loads, install a freewheeling diode across the load to suppress back-EMF.

Moreover, distribute the load current evenly across the two groups. Each group has its own fuse, so a fault in one group does not affect the other. Finally, use appropriately sized wiring – typically 0.5 mm² to 1.5 mm² – to handle the expected current safely.

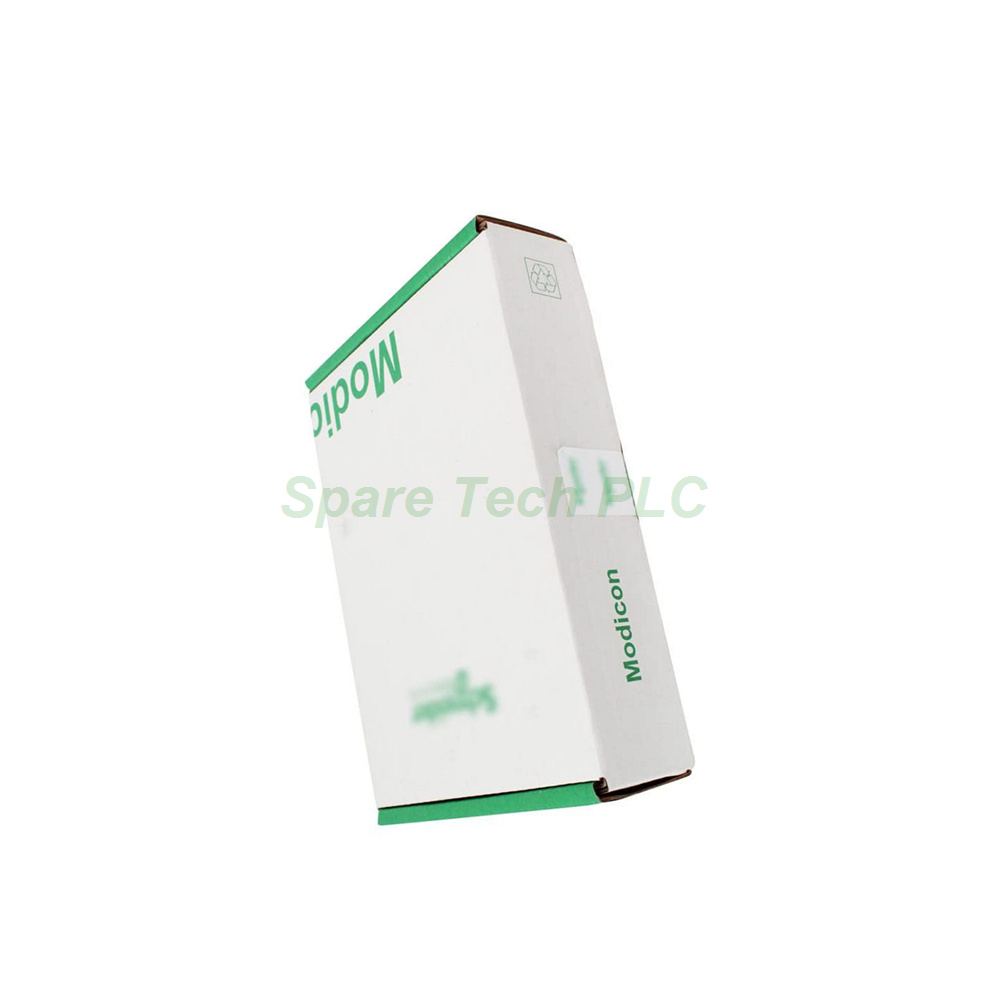

Packaging List

Your shipment of the 140DDO88500 includes the following items:

• Schneider Electric 140DDO88500 discrete output module (1 unit)

• Removable terminal block (pre-installed on the module)

• Anti-static protective bag for safe handling

• Quick-start installation reference card

• Mounting screws (2 pieces, pre-attached)

Note: Field wiring, external fuses, freewheeling diodes, and terminal lug accessories are not included. Please order these separately.

Shipping and Delivery

We dispatch all orders through FedEx, UPS, or DHL – selecting the best carrier based on your destination. Each package is carefully cushioned and tracked throughout transit. Typical delivery times range from 3 to 7 business days internationally. Expedited shipping options are available upon request.

Frequently Asked Questions (FAQ)

Q1: Can I use the 140DDO88500 with 12V DC loads?
No. The 140DDO88500 requires a minimum voltage of 19.2V DC. Operating at 12V will not reliably turn on the outputs. Consider a different module for low-voltage applications.

Q2: What is the difference between "sink" (negative logic) and "source" logic?
Sink logic means the output switches the load to the DC common (negative terminal). Source logic switches the load to the positive supply. The 140DDO88500 is a sink module – verify that your field devices are wired accordingly.

Q3: What happens if one output shorts?
The internal 4A fuse protects that specific group. If a short occurs, the fuse opens and takes the entire 6-channel group offline. The red Fault LED (F) turns on. Replace the fuse after clearing the fault.

Q4: Can I connect outputs from different groups to different voltage supplies?
Yes. Each group is isolated from the other, so you can power group 1 with 24V DC and group 2 with 125V DC simultaneously. This flexibility is a key advantage of the 140DDO88500.

Q5: Does this module support PWM (pulse-width modulation) output?
Not directly. The switching frequency is limited to 50 Hz, so it cannot produce high-speed PWM signals. It is best suited for discrete on/off control applications. For PWM, use a dedicated analog or high-speed output module.
