This Bently Nevada 330901-00-10-05-02-00 is a compact 3300 NSv proximity probe featuring a 1/4-28 UNF thread without armor. It includes a 0.5-meter FEP coaxial cable and a miniature ClickLoc connector. Its AISI304 stainless case, PPS tip, and lightweight design make it ideal for space-constrained vibration monitoring applications.

This Bently Nevada 330901-00-15-05-02-00 is a compact 3300 NSv proximity probe with a 1/4-28 UNF thread and no armor. It features a 0.5-meter FEP coaxial cable and a miniature ClickLoc connector. Its AISI304 stainless case and PPS tip deliver reliable vibration monitoring in space-constrained installations.

This Bently Nevada 330901-00-09-70-02-CN is a 3300 NSv proximity probe with a 1/4-28 UNF thread and no armor. It features a 7.0-meter FEP coaxial cable and a miniature ClickLoc connector. Its AISI304 stainless case, PPS tip, and country-specific approval (CN) make it suitable for long-reach industrial sensing applications.

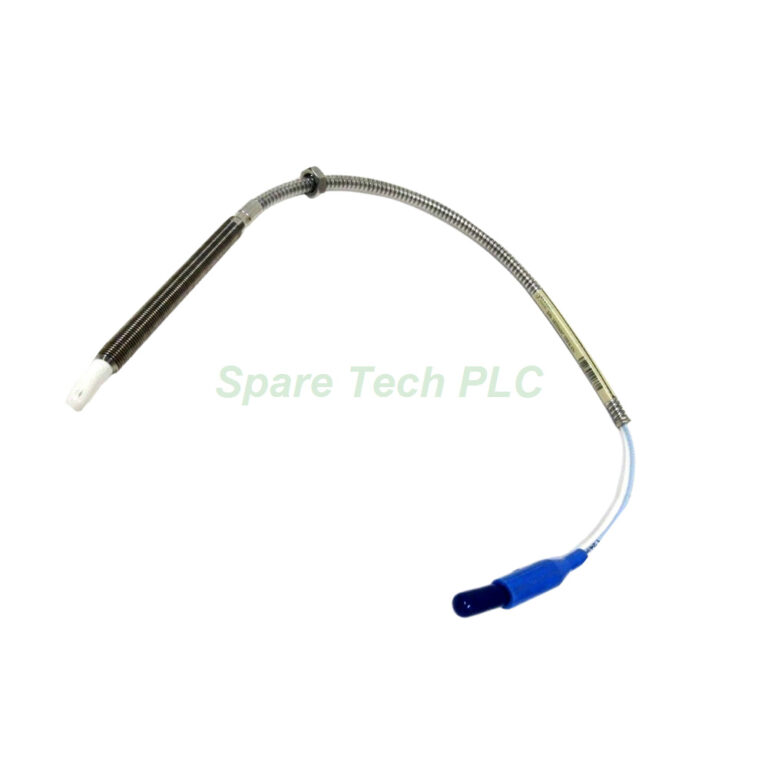

This Bently Nevada 330909-10-99-10-11-CN is a 3300 NSv proximity probe featuring a 1.0-inch unthreaded length, armor, and a 1-meter FluidLoc cable. Its 3/8-24 UNF thread, AISI304 stainless case, and PPS tip ensure robust performance. This model also includes a connector protector and carries country-specific approval (CN).

This Bently Nevada 330909-00-99-10-02-00 is a 3300 NSv proximity probe with armor and a 1-meter FEP cable. It features a 3/8-24 UNF thread, AISI304 stainless steel case, and PPS tip. Designed for reliable shaft vibration and position monitoring in turbines, compressors, and pumps.3300 NSv Proximity Probe 330909-00-99-10-02-00 Product Introduction The Bently Nevada 330909-00-99-10-02-00 belongs to the trusted 3300 NSv series of proximity probes. This model specifically offers a 3/8-24 UNF threaded case with integral armor for added cable protection. Its total length reaches 1.0 meter (39 inches), and it uses a miniature coaxial ClickLoc connector for secure, quick installation. Furthermore, this sensor provides dependable, non-contact measurement of shaft vibration and position. It is a critical component for predictive maintenance and machine protection systems.Technical Specifications The 330909-00-99-10-02-00 probe is built for precision and durability. Its case uses AISI304 stainless steel (SST) , while the probe tip is constructed from polyphenylene sulfide (PPS) . The cable is a 75 Ω coaxial type with fluoroethylene propylene (FEP) insulation, ensuring signal integrity. For this 1.0-meter version, the DC resistance from the center conductor to the outer conductor (RPROBE) is 5.3 ± 0.7 ohms. Additionally, the probe features a Viton O-ring seal designed to manage differential pressure between the tip and case. However, please note that these probes are not pressure tested before shipment.Mechanical and Environmental Parameters This sensor operates reliably in demanding conditions. Its operating and storage temperature ranges are both from -52°C to +177°C (-62°F to +351°F) . Nevertheless, avoid exposing the probe to temperatures below -34°C (-30°F) for long periods to prevent premature seal failure. For installation, the maximum recommended torque for the 3/8-24 probe case is 11.3 N•m (100 in•lb) , while the maximum rated torque is 33.9 N•m (300 in•lb). For the first three threads, use 7.5 N•m (66 in•lb) . The maximum length of thread engagement is 0.563 inches.Installation Guidelines When installing the 3300 NSv probe, proper torque application is essential for reliable operation. First, ensure the mounting surface is clean and the threads are undamaged. Then, screw the probe into the housing by hand until it is finger-tight. Next, use a torque wrench to apply the recommended torque of 11.3 N•m to the probe case. For the first three threads, apply a lower torque of 7.5 N•m. Specifically, avoid over-tightening, as this can damage the threads or the internal components. For optimal performance, maintain the correct air gap as specified for your application. Finally, securely fasten the ClickLoc connector to complete the installation.Temperature Classification Schedule The Bently Nevada 330909 probe meets various temperature classifications for hazardous areas.For EPL Ga and Gc: It covers T1 to T5 classifications from -55°C up to +232°C.For EPL Dc: It offers classifications from T280°C down to T90°C based on the ambient temperature. Therefore, this probe is versatile for many different operating environments. Additionally, its immunity to 60 Hz magnetic fields up to 300 Gauss is excellent. For instance, at a 1.0 mm gap, the Proximitor sensor output is 0.007, the probe is 0.002, and the extension cable is 0.001 mil pp/gauss.Compliance and Certifications The 330909-00-99-10-02-00 complies with key international standards. It meets the FCC Part 15 requirements. Furthermore, it adheres to the European Community EMC Directive 2014/30/EU and follows standards EN 61000-6-2 and EN 61000-6-4. This probe is also RoHS compliant, conforming to Directive 2011/65/EU. Consequently, you can use it confidently in industrial environments with strict regulatory demands.Packaging List 1 x Bently Nevada 330909-00-99-10-02-00 3300 NSv Proximity Probe1 x Mounting instruction sheet (basic)Shipping Method: FedEx, UPS, DHLFrequently Asked Questions (FAQ) 1. What is the total length of the Bently Nevada 330909-00-99-10-02-00 probe? The total length option for this model is 1.0 meter, which is equivalent to 39 inches. This is indicated by the "10" in the product number.2. What type of connector is used on this 3300 NSv probe? This specific probe uses a miniature coaxial ClickLoc connector. This is a standard, reliable connection type for Bently Nevada sensors, ensuring a secure and quick attachment.3. Is the 330909 probe suitable for high-temperature applications? Yes, the probe operates in temperatures from -52°C to +177°C. However, its temperature classification varies; for example, it is rated T1 for ambient temperatures up to 232°C. Always check the specific classification for your environment.4. What is the recommended installation torque for the 330909-00-99-10-02-00? The recommended torque for the 3/8-24 probe case is 11.3 N•m (100 in•lb) . For the first three threads, the recommended torque is 7.5 N•m (66 in•lb) . Use these values to prevent damage.5. Does the probe come with a cable armor? Yes, this model includes armor. This is specified by the "with armor" description in the product details, providing extra protection for the coaxial cable.

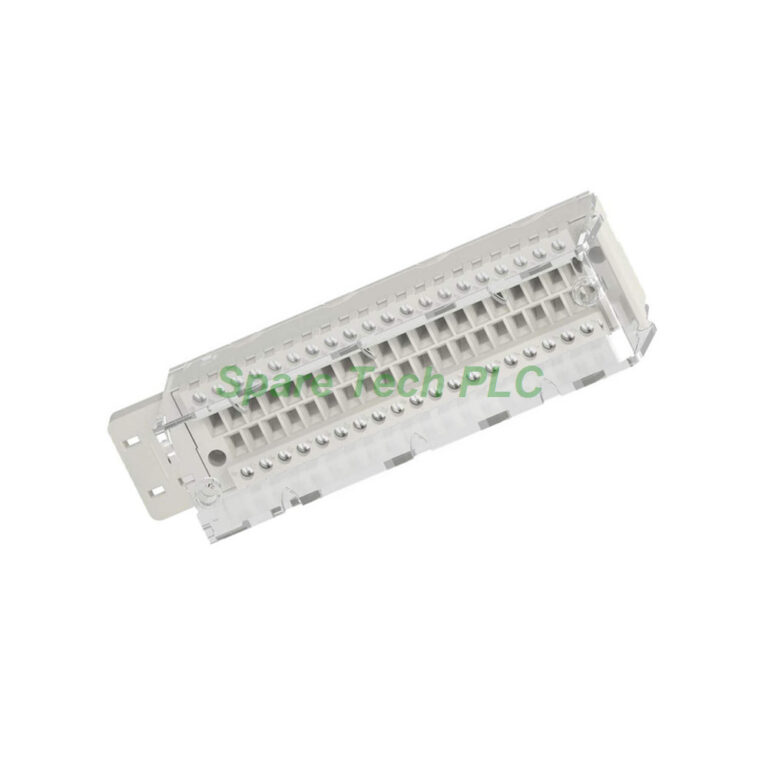

The Schneider Electric BMXFTB4000 is a 40-terminal removable cage clamp block for Modicon X80 modules. Its compact gray housing ensures secure wiring in control cabinets. This block offers IP20 protection and operates from 0°C to 60°C for reliable field connections.

The Schneider Electric 990NAD21930 is a Modbus Plus drop cable for Modicon and Altivar drives. It features a 6-metre length with a SUB-D 9 connector on one end and flying leads on the other. This cable enables reliable junction box connections in industrial networks.

The Schneider Electric 170ARM37030 is a discrete relay I/O base for the Modicon Momentum platform. It combines 10 digital inputs and 8 relay outputs in a compact package. Operating from 24 to 230V AC, this base offers flexible integration for diverse automation tasks.

The Schneider Electric 140DDO35300C is a discrete output module for the Modicon Quantum platform. It provides 32 outputs across 4 isolated groups with positive source logic. This module handles 16A total load and includes comprehensive fault protection for reliable industrial control.

The Bently Nevada 330500-01-01 is a rugged piezo-velocity sensor for reliable machinery vibration monitoring. It delivers a 3.94 mV/mm/s sensitivity and operates across a broad frequency range. This model features a 1/2-20 UNF mounting thread and carries CSA/US approval for hazardous areas.

The Bently Nevada 330500-02-04 Velomitor Piezo-velocity Sensor delivers reliable absolute vibration measurements. This model features a sensitivity of 100 mV/in/s (3.94 mV/mm/s) and an M8 x 1 mounting thread. Its 316L stainless steel, hermetically-sealed case ensures durability in the harshest industrial environments.

The Bently Nevada 991-25-70-01-CN 991 Thrust Transmitter converts proximity probe signals into a 4-20 mA output for axial thrust monitoring. This model features a 25-0-25 mils bi-directional range and a 7.0-meter system length. It accepts a 3300 NSv proximity probe and mounts on a standard DIN rail.
