MDO54 GE Nexus 16-Channel Digital Output Module

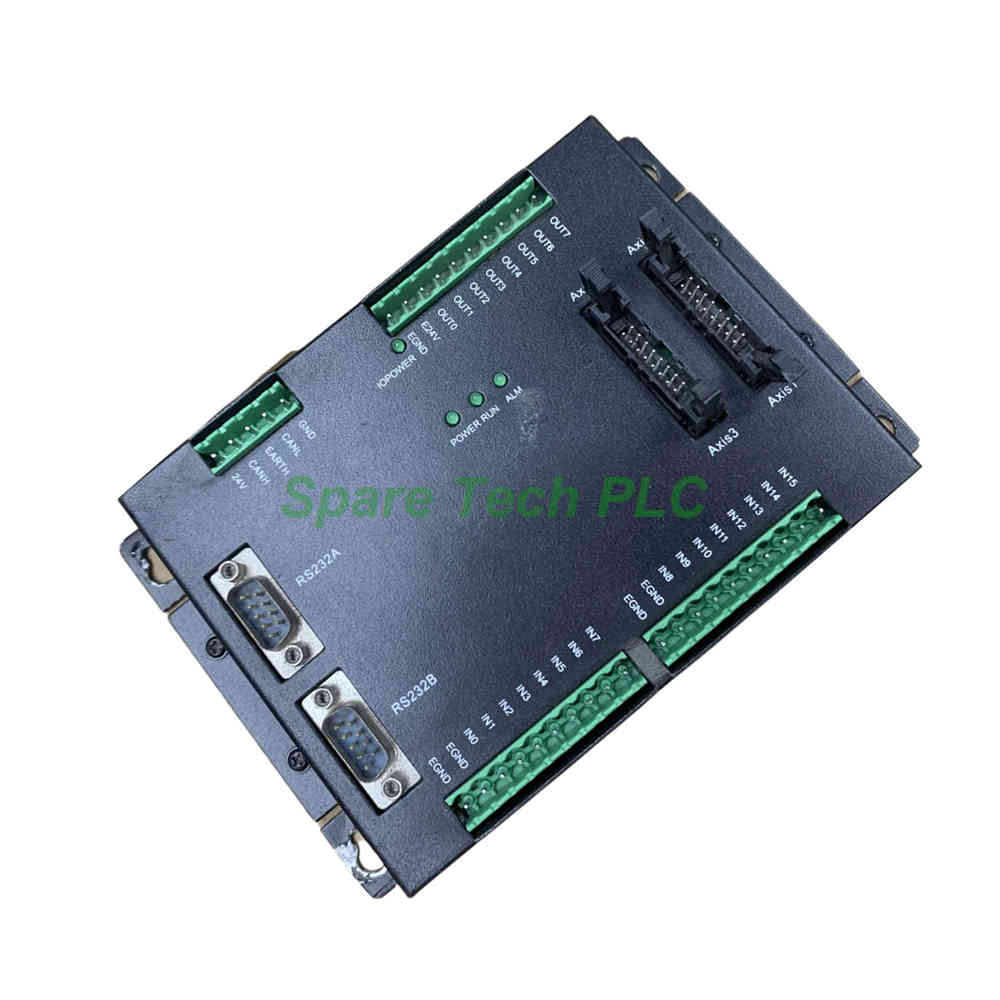

GE MDO54 Nexus Series Digital Output Module

Product Introduction

The GE MDO54 belongs to the Nexus series and functions as a low-side digital output module. This unit provides 16 channels, each delivering 24V DC at 100mA to energise external relay coils or interposing devices. Unlike direct switching modules, the MDO54 is specifically optimised to work with companion high-capacity relay boards. When paired with these boards, the system achieves impressive contact ratings: 16A@400V AC (resistive), 10A@220V DC (resistive), 3.6A@110V DC (inductive), and 2A@220V DC (inductive). Each output includes a dedicated LED for instant status verification. Additionally, the MDO54 delivers 3000VAC isolation between channels and the system bus, making it suitable for motor control centres, switchgear, and high-voltage process applications.

Technical Specifications

Output Characteristics
The module offers 16 independent digital outputs, each sourcing 24V DC at 100mA. The output type is specified as a solid-state drive intended for relay coil activation. The GE MDO54 does not contain built-in power relays; instead, it serves as a low-power control interface. When connected to the matching external relay board, the combined assembly delivers substantial contact capacity. For resistive AC loads, the rating reaches 16A@400V AC. For resistive DC loads, the capacity is 10A@220V DC. Inductive DC loads are handled at 3.6A@110V DC or 2A@220V DC. This modular approach gives engineers flexibility to replace only the relay board without disturbing the control logic.

Indication and Diagnostics
Every output channel features a dedicated green LED that illuminates when the output is commanded ON. This visual feedback simplifies commissioning and field troubleshooting. Furthermore, the MDO54 includes three system-level LEDs: RUN indicates module health, COM shows serial bus activity, and FLT signals internal faults. Together, these indicators enable rapid fault localisation without specialised tools.

Isolation and Safety
Isolation ratings are exceptionally high and comparable to the MDO53. Channel-to-channel isolation reaches 1000VAC, preventing cross-talk between different output circuits. Channel-to-ground isolation stands at 2500VAC, while the system bus isolation achieves 3000VAC. This triple-layer protection safeguards the host controller from destructive surges and transients originating in the field. Therefore, the MDO54 works safely in environments with high voltage switching.

Communication and Bus
The module connects to the Nexus backplane via a redundant high-speed intelligent serial bus at 1Mbps. A female DB-9 connector serves as the physical interface. This redundant bus topology ensures continuous operation even during single-path failures. Meanwhile, the embedded 32-bit processor manages output state updates with deterministic timing and monitors for short-circuit conditions on each channel.

Power Consumption
Typical power draw is a modest 1.3W when all outputs are de-energised. At maximum load with all 16 channels active, consumption rises to 4W. The GE MDO54 accepts a single 24V DC supply (21.6–26.4V range), which powers both the logic circuits and output drivers.

Mechanical and Environmental Parameters

Physical Dimensions
The module measures 209mm in height, 129.5mm in width, and 51mm in depth. Its standard form factor fits all Nexus series racks.

Terminal Connections
A single-row European-style removable terminal block accepts 2.5mm² wire, supporting dual-wire terminations. Each output terminal provides a +24V DC source and a return path for the external relay coil. The detachable design accelerates field wiring and module exchange.

Environmental Limits
Operating temperature ranges from 0°C to 60°C, with relative humidity between 10% and 90% (non-condensing). Vibration resistance covers 10–500Hz at acceleration not exceeding 10m/s². Industrial dust tolerance follows the Nexus standard: particles larger than 0.5µm limited to fewer than 18,000 per litre.

Regulatory Compliance
The MDO54 complies with CFR 47 FCC Part 15: 2009, ANSI C63.4-2003, EN 61326-1: 2006, CISPR 11: 2007, and IEC 61000-4-2/3/4/5/6/8/11. It carries CE certification as part of the complete GE Nexus system.

Installation Guidance

Mounting Instructions
Secure the GE MDO54 to the rack using the provided screw kit. Align the backplane connectors carefully before seating the module. Tighten screws progressively to avoid warping the PCB.

Wiring to External Relay Boards
Connect each output channel to the coil terminals of the external relay board. The MDO54 provides a 24V DC sourcing output; therefore, the relay coil common must be connected to the return (0V) terminal. For proper operation, verify that the external relay board is designed for 24V DC coil voltage and draws no more than 100mA per channel.

Output Protection
Although the MDO54 includes short-circuit protection, GE recommends installing external freewheeling diodes across inductive relay coils. This practice suppresses back-EMF spikes and extends the life of both the module and the external relay contacts.

Bus and Power Connection
Connect the DB-9 port to the system bus using a shielded serial cable. Apply 24V DC power to the designated input terminals. The module draws maximum current during simultaneous output activation, so size the power supply accordingly.

Packaging List

• GE MDO54 digital output module × 1

• Removable terminal block (single-row, European-style) × 1

• Screw mounting kit (screws and washers) × 1 set

• Product label with serial number × 1

• Quick installation guide (printed) × 1

Shipping Method: FedEx, UPS, DHL

Frequently Asked Questions

Q1: Does the MDO54 include built-in relays for direct load switching?
No. The GE MDO54 provides 24V DC/100mA solid-state outputs designed to drive external relay boards. For direct load switching, please consider the MDO53 module instead.

Q2: What external relay board is compatible with the MDO54?
The MDO54 is designed to work with GE's matching high-capacity relay termination boards. These boards provide the contact ratings of 16A@400V AC and 10A@220V DC as specified.

Q3: Can I connect the outputs directly to a PLC input?
Yes. The 24V DC/100mA output is compatible with standard PLC digital inputs. However, note that the MDO54 is optimised for relay driving; for direct PLC interfacing, other modules may be more cost-effective.

Q4: What happens if an output is short-circuited to ground?
The GE MDO54 includes per-channel short-circuit protection. The affected output will limit current to a safe level and report the fault via the status register. After removing the short, normal operation resumes automatically.

Q5: Is the MDO54 suitable for high-speed pulse output applications?
No. The MDO54 is designed for standard ON/OFF control of relay coils. For high-speed pulse or PWM applications, consider a dedicated solid-state output module with faster switching characteristics.
