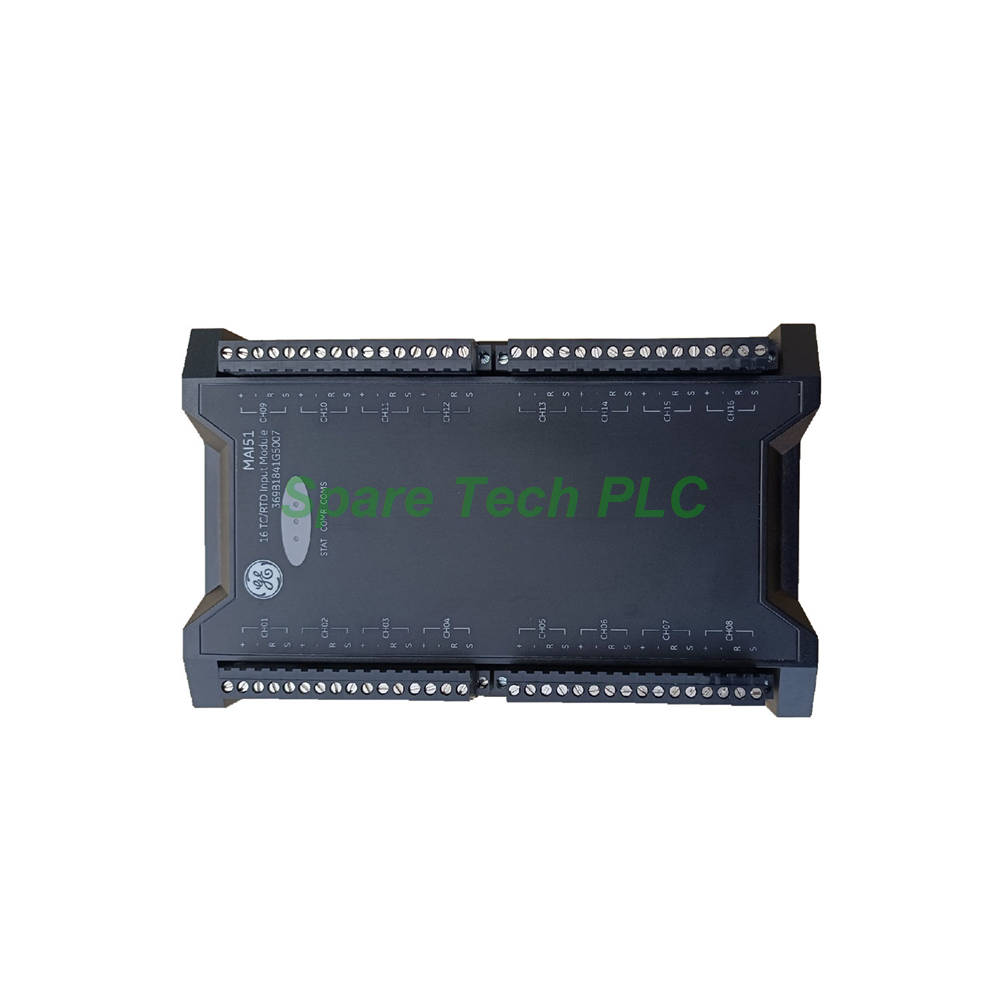

GE MAI51 Nexus Series TC/RTD Analog Input Module

Product Introduction

The GE MAI51 belongs to the Nexus series and functions as a specialised analog input module for temperature sensors. This unit delivers 16 differential inputs, each configurable for thermocouple (TC) types E, J, K, N, R, S, T, B, or RTD types Pt10, Pt100, Cu100, and Cu50. Built-in cold-junction compensation and linearisation eliminate external signal conditioners. The MAI51 achieves a maximum measurement error of just 0.2% and provides ±10% over-range detection. With redundant 24V DC power, 1500VAC system isolation, and CE certification, this module excels in boiler monitoring, turbine exhaust measurement, and process heating control.

Technical Specifications

Input Characteristics
The module offers 16 analog input channels grouped in two banks of eight. Each channel independently supports either thermocouple or RTD sensors. For TC inputs, the GE MAI51 accepts types E, J, K, N, R, S, T, and B, covering temperatures from -270°C to +1820°C depending on the type. For RTD inputs, the module supports Pt10, Pt100, Cu100, and Cu50, in both 2-wire and 3-wire configurations. The 3-wire mode automatically compensates for lead resistance, improving measurement accuracy over long cable runs.

Analog-to-Digital Conversion
A high-performance 32-bit embedded processor manages the 16-bit ADC, which samples eight channels per conversion group. The MAI51 achieves a common-mode rejection ratio exceeding 120dB and a differential-mode rejection ratio above 60dB. These figures effectively suppress electrical noise from motors, transformers, and switching power supplies. Furthermore, the measurement error remains within ±0.2% of full scale across the entire operating temperature range.

Over-Range Detection and Alarm
Software-based over-range detection triggers when the input exceeds ±10% of the nominal range. The GE MAI51 flags these conditions in the status registers, enabling predictive maintenance and early fault detection. However, note that this alarm function applies to RTD and TC inputs only, not to voltage or current modes.

Isolation and Protection
Isolation ratings are robust and comprehensive. Channel-to-channel isolation stands at 250VAC, preventing crosstalk between adjacent temperature sensors. Channel-to-ground isolation reaches 500VAC, while the system bus isolation is rated at 1500VAC. This triple-layer design protects the main controller from field-side transients, making the MAI51 reliable in high-voltage environments.

Communication and Bus
The module communicates over a redundant high-speed intelligent serial bus at 1Mbps through a female DB-9 connector. This redundant architecture ensures uninterrupted data transfer even during single-path failures. Meanwhile, front-panel LEDs indicate module status (RUN), communication activity (COM), and fault conditions (FLT) for rapid diagnostics.

Power Requirements
Dual 24V DC inputs (±10%) support 1:1 redundancy, enhancing system availability. The GE MAI51 draws a maximum of 1.8W, with typical consumption below 2W. The operating voltage range spans 21.6–26.4V DC. This low power draw reduces heat generation within the rack.

Mechanical and Environmental Parameters

Physical Dimensions
The module measures 209mm in height, 129.5mm in width, and 51mm in depth. Its compact form factor fits standard Nexus series racks.

Terminal Connections
A single-row European-style removable terminal block accepts 2.5mm² wire, supporting dual-wire terminations. For 3-wire RTDs, three terminals per channel accommodate the excitation, sense, and return leads. This detachable design simplifies field wiring and future maintenance.

Environmental Limits
Operating temperature ranges from 0°C to 60°C, with relative humidity between 10% and 90% (non-condensing). Vibration resistance covers 10–500Hz at acceleration not exceeding 10m/s². Industrial dust tolerance follows the same standard: particles larger than 0.5µm limited to fewer than 18,000 per litre.

Regulatory Compliance
The MAI51 complies with CFR 47 FCC Part 15: 2009, ANSI C63.4-2003, EN 61326-1: 2006, CISPR 11: 2007, and IEC 61000-4-2/3/4/5/6/8/11. It carries CE certification as part of the complete GE Nexus system.

Installation Guidance

Mounting Instructions
Secure the GE MAI51 to the rack using screw-type mounting. Ensure the backplane connectors align properly before seating the module. Tighten screws in a cross pattern to maintain even pressure on the PCB.

Thermocouple Wiring
Use the correct thermocouple extension wire matching the TC type (e.g., type K wire for K inputs). Connect the positive lead to the channel terminal and the negative lead to the common return. Maintain polarity carefully, as reversed connections produce negative temperature readings. The MAI51 provides built-in cold-junction compensation using an onboard sensor.

RTD Wiring
For 2-wire RTDs, connect both leads to the designated terminals and install a shorting jumper on the sense terminal. For 3-wire RTDs, connect all three leads to their respective terminals. The GE MAI51 automatically compensates for lead resistance when properly wired. Use shielded twisted-pair cable for all RTD connections to minimise noise pickup.

Bus and Power Connection
Connect the DB-9 female port to the system bus using a shielded serial cable. Apply both 24V DC supplies simultaneously for full redundancy. Each supply must deliver at least 0.1A continuously.

Packaging List

• GE MAI51 TC/RTD analog input module × 1

• Removable terminal block (single-row, European-style) × 1

• Screw mounting kit (screws and washers) × 1 set

• Product label with serial number × 1

• Quick installation guide (printed) × 1

Shipping Method: FedEx, UPS, DHL

Frequently Asked Questions

Q1: Can the MAI51 accept both thermocouples and RTDs simultaneously on different channels?
Yes. Each of the 16 channels is independently configurable. You can mix TC and RTD sensors across the module without hardware changes.

Q2: What is the maximum cable length supported for thermocouple inputs?
The GE MAI51 supports TC cable runs up to 100 metres with proper shielding. For longer distances, use a transmitter or isolator to maintain signal integrity.

Q3: Does the module provide cold-junction compensation for thermocouples?
Yes. The MAI51 includes an onboard temperature sensor that measures the terminal block temperature. This value automatically compensates each TC channel's reading.

Q4: How does the 3-wire RTD connection improve accuracy?
The 3-wire configuration allows the MAI51 to measure and cancel the resistance of both lead wires. This eliminates errors caused by cable length and temperature-related resistance changes in the leads.

Q5: Why does the ±10% over-range alarm not apply to voltage inputs?
The MAI51 is specifically designed for TC and RTD inputs. The over-range function is optimised for these temperature sensor characteristics. Voltage and current modes are not supported on this module at all.
