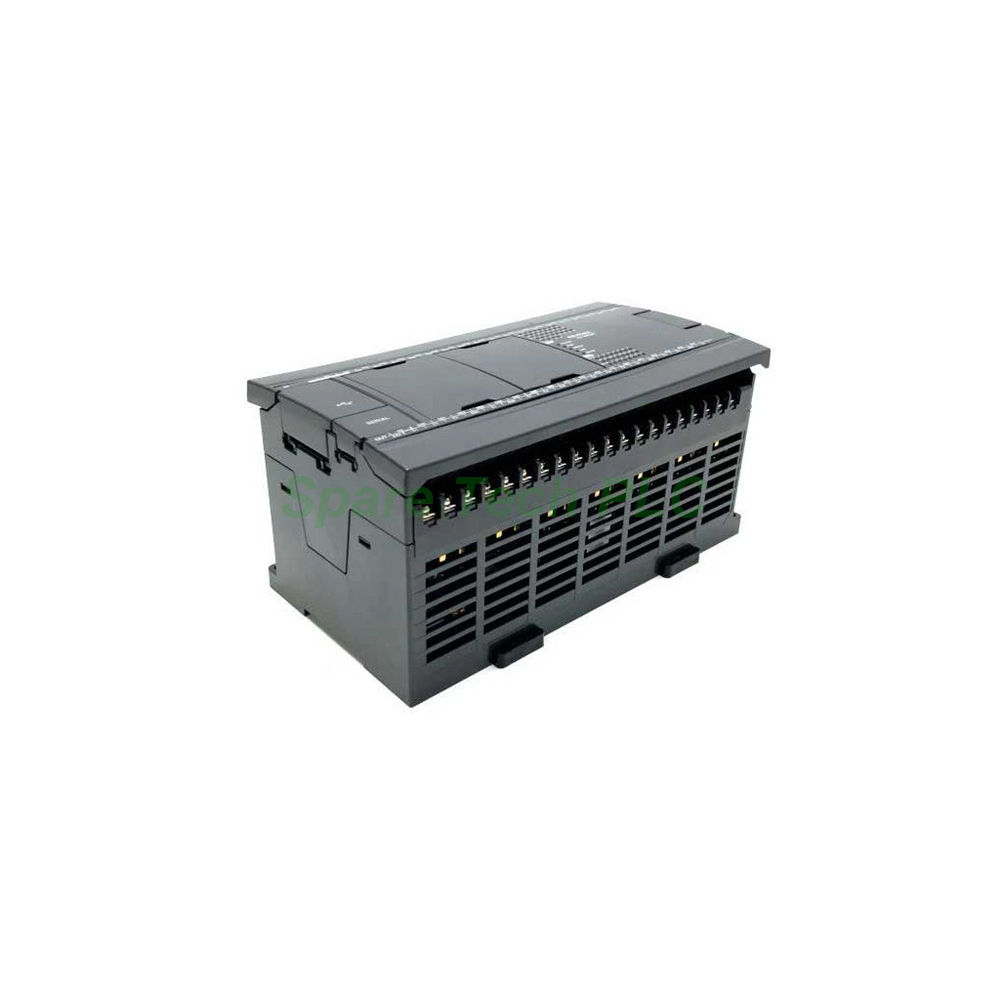

The KV-N60DT belongs to the Keyence KV Nano series, a compact all-in-one terminal block type PLC. This model serves as a base unit with an integrated 24 VDC power supply. It provides 36 input points and 24 transistor sink output points, making it suitable for fast switching applications. Engineers often select the KV-N60DT when they need high-speed transistor outputs rather than relay contacts. The MOSFET sink output design suits DC loads such as solenoids, indicators, and small drives.
The processing core of the KV-N60DT handles complex logic with ease. It supports a program capacity of 16k steps and executes basic instructions in as little as 50 ns. Furthermore, the unit accepts expanded ladder logic, KV Script, and mnemonic programming. For motion tasks, this PLC provides 3-axis positioning pulse output up to 100 kHz. Additionally, two high-speed counter inputs are available for 32-bit automatic reset operations. These counters reach 100 kHz in single-phase mode and 50 kHz with phase difference.
The base unit includes the built-in I/O terminals. However, users can attach up to 8 expansion units via the backplane. This configuration allows the system to reach a maximum of 256 I/O points (excluding the base unit). Communication is handled through a built-in RS-232C port using a modular connector. This port supports KV STUDIO programming and no-protocol serial communication. For additional networking, optional communication modules can be installed.
The KV-N60DT operates on a nominal supply of 24 VDC with ±10% tolerance. It also provides a 24 VDC output power supply with a 0.6 A capacity for external sensors. The output type is MOSFET transistor (sink/NPN), rated at 30 VDC and 0.5 A per point. Environmental robustness is a key feature. The unit operates within 0 to +55 °C and withstands storage temperatures from -25 to +75 °C. It also resists humidity from 5 to 95% RH without condensation. The unit weighs approximately 0.75 kg.
First, mount the KV-N60DT on a DIN rail inside a control cabinet. Next, connect the 24 VDC supply to the designated terminals with correct polarity. Then wire the 36 input points and 24 transistor sink output points to field devices. For expansion, attach backplane modules before powering up. Finally, connect the RS-232C modular plug to a PC running KV STUDIO and download the program. Always verify terminal torque and keep signal cables away from power lines. Therefore, startup checks should include I/O forcing tests and output load verification.
1 × Keyence KV-N60DT PLC unit
1 × Terminal block cover
1 × Instruction sheet
1 × Original carton
Shipping via Fedex, UPS, DHL.
Q1: What I/O count does the KV-N60DT offer?
A: It provides 36 input points and 24 transistor sink output points on the base unit.
Q2: Can I expand the KV-N60DT with extra modules?
A: Yes, the backplane accepts up to 8 expansion units for 256 additional I/O points.
Q3: What is the output rating of this PLC?
A: Each MOSFET sink output handles 30 VDC at 0.5 A per point.
Q4: Which programming software works with this model?
A: Keyence KV STUDIO supports the KV-N60DT through the built-in RS-232C port.
Q5: What supply voltage does the KV-N60DT require?
A: It runs on a nominal 24 VDC supply with ±10% tolerance.
| Brand Name | |
| Model No. | KV-N60DT |
| Product Type | Programmable Logic Controller |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
