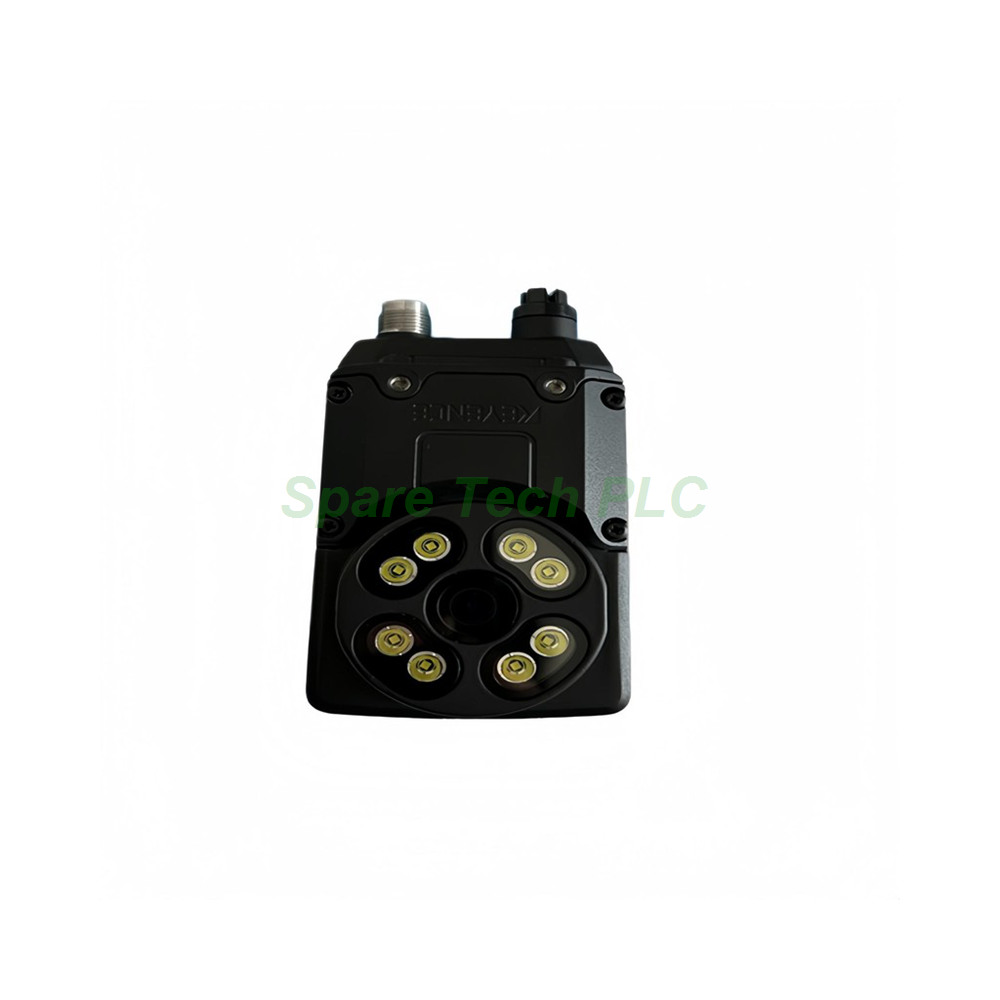

Keyence IV3-600MA Monochrome Smart Camera

Keyence IV3-600MA AI Vision Sensor

Product Introduction

The Keyence IV3-600MA belongs to the IV3 Series of AI-powered vision sensors. It pairs a monochrome CMOS image sensor with built-in AI tools for industrial inspection. The unit supports 65 tools and two operating modes: Standard mode and Sorting mode. Furthermore, it communicates through EtherNet/IP, PROFINET, and TCP/IP protocols.

This sensor works at installation distances from 50 mm to 3000 mm. At 50 mm, the field of view measures 51 x 38 mm. At 3000 mm, it expands to 2730 x 2044 mm. The IV3-600MA also includes infrared LED illumination with pulse lighting. As a result, it performs well in low-light or invisible-light inspection setups.

Technical Specifications

The image receiving element is a 1/2.9 inch monochrome CMOS sensor. It captures 1280 x 960 pixels. Exposure time ranges from 12 microseconds to 10 milliseconds. Additionally, focus adjustment is automatic, which reduces setup time. The Keyence IV3-600MA provides 65 inspection tools for flexible programming.

Communication interfaces include an M12 8-pin X-code female Ethernet port. This port supports 1000BASE-T and 100BASE-TX. A second M12 12-pin A-code male connector handles power and I/O. Protocols cover EtherNet/IP, PROFINET Class B, TCP/IP non-procedure communication, FTP client, and SFTP client.

Electrical Parameters

The supply voltage is 24 VDC with +25%/-20% tolerance, including ripple. Power consumption stays at 3.3 A or less without the AI lighting unit. With the AI lighting unit, it drops to 1.8 A or less. Both figures assume an output load.

Outputs use photo MOS relay type with N.O./N.C. switching. The maximum rating is 30 V at 50 mA. The sensor provides 6 inputs and 6 outputs. Among these, 3 pins are selectable as IN/OUT. PoE support includes Power Class 3, 4, and 6.

Mechanical and Environmental Data

The operating temperature range is 0 to +50°C without freezing. Relative humidity must stay between 35 and 85% RH without condensation. The protection rating is IP67, except when a polarizing filter is mounted. Vibration resistance covers 10 to 55 Hz at 1.5 mm double amplitude. Shock resistance reaches 500 m/s² in six directions.

The main unit case uses aluminum die-casting, PBT, and TPU. The indicator light cover is TPU. Ethernet and power connectors use aluminum die-casting and LCP. The front cover is acrylic with a hard coating. Weight is approximately 300 g without the AI lighting unit.

Installation Guide

First, select a mounting position that respects the 50 mm minimum distance. Next, secure the IV3-600MA using the appropriate bracket. Then, connect the M12 Ethernet cable to the X-code female port. After that, wire the power and I/O through the M12 12-pin A-code male connector.

Meanwhile, confirm that the supply voltage stays within 24 VDC tolerance. Besides, keep the sensor away from excessive vibration and shock. For IP67 protection, ensure all caps and connectors are tight. Finally, configure the focus and exposure through the Keyence software interface.

Packaging List

• 1 x Keyence IV3-600MA Vision Sensor

• 1 x Power Connector Waterproof Cap

• 1 x Ethernet Connector Waterproof Cap

• 1 x Quick Start Guide

Shipping is available via Fedex, UPS, and DHL. Please contact us for lead time and freight quotes.

FAQ

Q1: What is the field of view for the IV3-600MA?
A1: At 50 mm distance, it is 51 x 38 mm. At 3000 mm, it reaches 2730 x 2044 mm.

Q2: Does this sensor support color inspection?
A2: No. The IV3-600MA uses a monochrome CMOS sensor for grayscale imaging only.

Q3: Which communication protocols does it support?
A3: It supports EtherNet/IP, PROFINET Class B, TCP/IP, FTP client, and SFTP client.

Q4: What illumination does this model use?
A4: It uses infrared LED illumination with pulse lighting.

Q5: Is the IV3-600MA protected against dust and water?
A5: Yes. It carries an IP67 rating, except when a polarizing filter is mounted.
