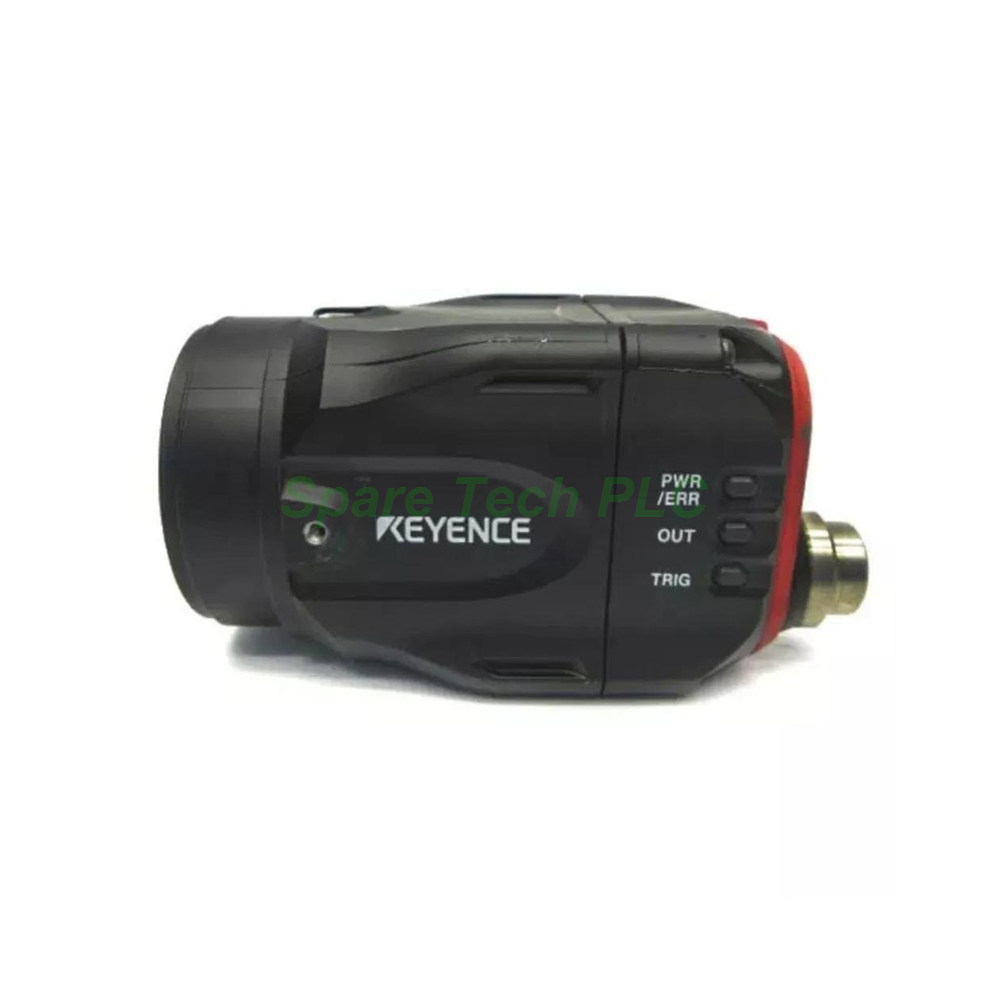

The IV-150M belongs to the Keyence IV Series of integrated vision sensors. This short-range monochrome model suits inspection tasks within 50 to 150 mm working distances. Its manual focus system gives operators direct control over image clarity. Furthermore, the built-in red LED illumination supports both pulse and DC lighting modes.
The Keyence IV-150M uses a 1/3 inch monochrome CMOS image sensor. It captures images at 752 (H) x 480 (V) pixels. The field of view changes with the installed distance. Specifically, at 50 mm the view measures 12 x 9 mm, while at 150 mm it expands to 36 x 27 mm.
This sensor provides 16 detection tools and one position adjustment tool. Besides shape detection, it supports color area and area tools. Users can store up to 32 programs through switch settings.
For network connectivity, the IV-150M includes an M12 4-pin connector. It supports 100BASE-TX and 10BASE-T Ethernet. Moreover, the device works with FTP client, EtherNet/IP, and PROFINET protocols. Communication expansion is not available on this model.
The unit runs on 24 VDC +/-10% supply voltage. Power consumption stays at 0.6 A or less. Outputs use open collector type with NPN/PNP switching. N.O./N.C. modes are also selectable, with a maximum rating of 26.4 V and 50 mA. In addition, six inputs (IN1 to IN6) and four outputs (OUT1 to OUT4) are provided.
The main unit case uses aluminium die-casting material. The packing is NBR, the front cover is acrylic, and the mounting adapter is POM. The sensor weighs approximately 270 g.
Operating temperature ranges from 0 to +50°C without freezing. Relative humidity should stay between 35 and 85% RH without condensation. The protection rating reaches IP67, except when a polarized filter attachment is mounted. Vibration resistance covers 10 to 55 Hz at 1.5 mm double amplitude. Shock resistance handles 500 m/s^2 three times in six directions.
First, mount the sensor using the POM adapter at the desired distance. Next, connect the M12 4-pin connector to your network cable. Then, adjust the manual focus until the target image appears sharp.
For lighting, choose pulse or DC mode based on your application speed. After that, configure up to 32 programs through the switch settings. Finally, verify input and output wiring before powering the 24 VDC supply.
1x Keyence IV-150M Vision Sensor
1x Mounting Adapter
1x M12 4-pin Connector
1x Quick Start Guide
Q1: What is the working distance of the IV-150M?
A: The installed distance ranges from 50 to 150 mm. The view size changes accordingly from 12 x 9 mm to 36 x 27 mm.
Q2: Does the Keyence IV-150M support color inspection?
A: No, this model is monochrome. It handles shape detection, color area, and area tools using grayscale imaging.
Q3: Which communication protocols does the IV-150M offer?
A: It supports FTP client, EtherNet/IP, and PROFINET through the M12 4-pin connector.
Q4: How many programs can the IV-150M store?
A: The sensor stores up to 32 programs via switch settings. It also includes 16 detection tools and one position adjustment tool.
Q5: What is the protection rating of the IV-150M?
A: The rating is IP67. However, this rating does not apply when a polarized filter attachment is mounted.
