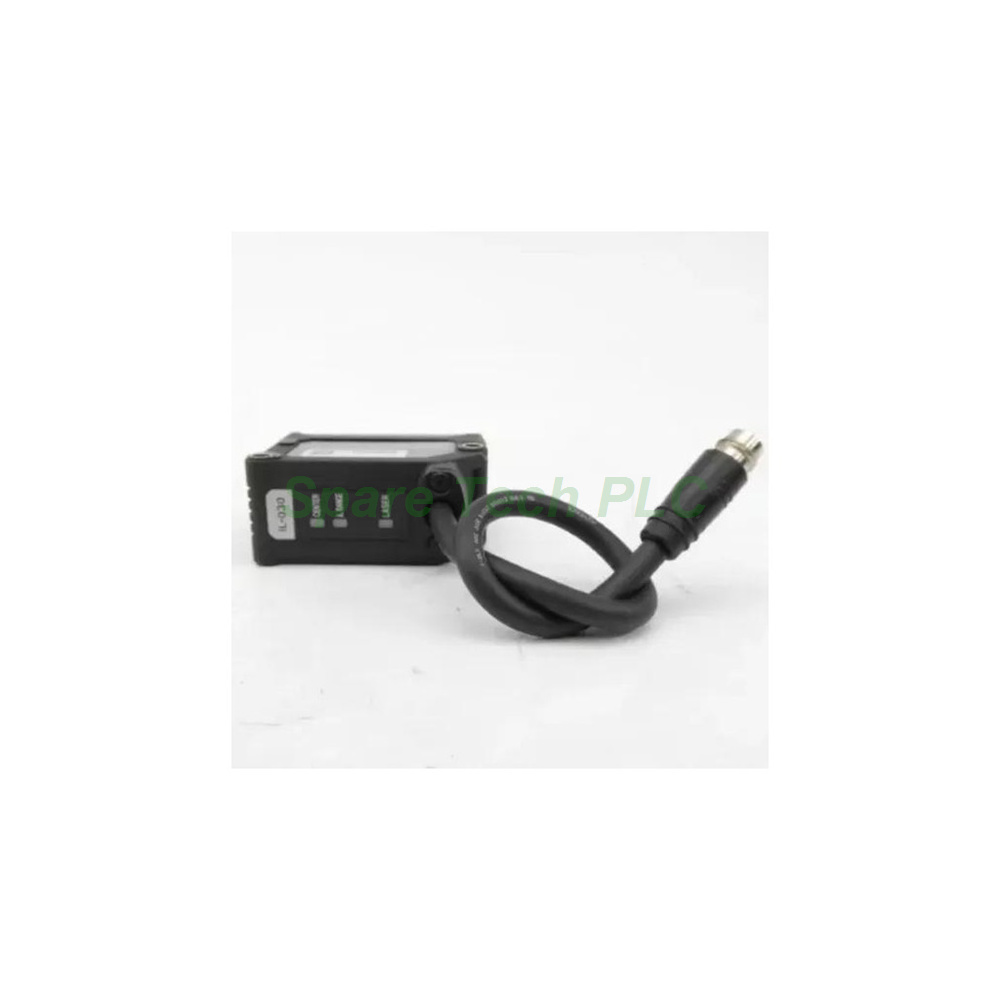

Keyence IL-600 CMOS Laser Sensor Head

Keyence IL-600 Long-Range Laser Sensor

Product Introduction

The Keyence IL-600 belongs to the well-known IL series of CMOS laser displacement sensor heads. Keyence designed this model for extra-long-range reflective measurement. It uses laser triangulation to detect distance with high stability. The reference distance sits at 600 mm. Furthermore, the measurement range covers 200 to 1000 mm. This wide span helps users handle large targets without moving the sensor. As a result, the IL-600 fits many automated production lines. It works as a sensor head only. Therefore, you must pair it with an IL series amplifier unit for power and output.

Technical Specifications

The Keyence IL-600 uses a red semiconductor laser with a 655 nm wavelength. This visible light helps with alignment during setup. The laser output reaches 560 µW. Meanwhile, the laser class stays at Class 2 under IEC 60825-1 and FDA CDRH Part1040.10. At the standard distance, the spot diameter is about ø1.6 mm. This small spot allows precise detection on tiny features.

Linearity changes across the range. Specifically, it reaches ±0.25 % of F.S. from 200 to 600 mm. Beyond that, from 200 to 1000 mm, linearity becomes ±0.5 % of F.S. Repeatability is 50 µm with a standard white diffuse target at 2 ms sampling. In addition, the sampling rate offers four selectable levels: 0.33, 1, 2 and 5 ms. Users can trade speed for stability as needed.

Temperature characteristics are rated at 0.08 % of F.S. per °C. This value helps predict drift in changing factory environments.

Communication and Electrical Notes

This sensor head has no built-in ports. Moreover, it supports no standalone protocols. Communication expansion is not available either. Instead, the unit connects directly to an IL series amplifier. That amplifier supplies power and handles all output signals. Therefore, the IL-600 carries no independent supply voltage rating. Power consumption is also not specified for the head alone. For wiring details, please refer to the amplifier manual.

Mechanical and Environmental Parameters

The Keyence IL-600 weighs about 135 g. Its compact body eases mounting on brackets and fixtures. The protection rating reaches IP67. This rating means resistance to dust and brief water immersion. Operating temperature ranges from -10 to +50 °C with no condensation or freezing. Relative humidity should stay between 35 and 85 % RH without condensation. Besides, storage temperature data is not available in the official list. Dimensions are also not published, so check the current datasheet for exact sizes.

Installation Guide

First, mount the sensor head on a stable bracket. Keep the head square to the target surface. Next, connect the cable to a compatible IL series amplifier. Then, set the sampling rate based on your speed needs. After that, align the red laser spot on the target. Finally, adjust the amplifier settings for zero and span. Avoid strong ambient light during alignment. Also, keep the lens clean to maintain accuracy.

Packaging List

• 1 × Keyence IL-600 Sensor Head

• 1 × Protective Lens Cap

• 1 × Mounting Bracket Set

• 1 × Cable Connector

• 1 × Quick Start Guide

Shipping

We ship worldwide via Fedex, UPS and DHL. Orders usually leave our warehouse within 1–2 business days. Tracking numbers go out once the parcel departs.

FAQ

Q1: What is the measurement range of the Keyence IL-600?
A: The IL-600 covers 200 to 1000 mm with a 600 mm reference distance.

Q2: Does the IL-600 work without an amplifier?
A: No. This sensor head needs an IL series amplifier for power and signal output.

Q3: What is the repeatability of this laser sensor head?
A: It reaches 50 µm with a standard white diffuse target at 2 ms sampling.

Q4: Can the IL-600 operate in wet areas?
A: Yes. Its IP67 rating protects against dust and brief water exposure.

Q5: Which shipping methods do you offer?
A: We use Fedex, UPS and DHL for all international deliveries.
