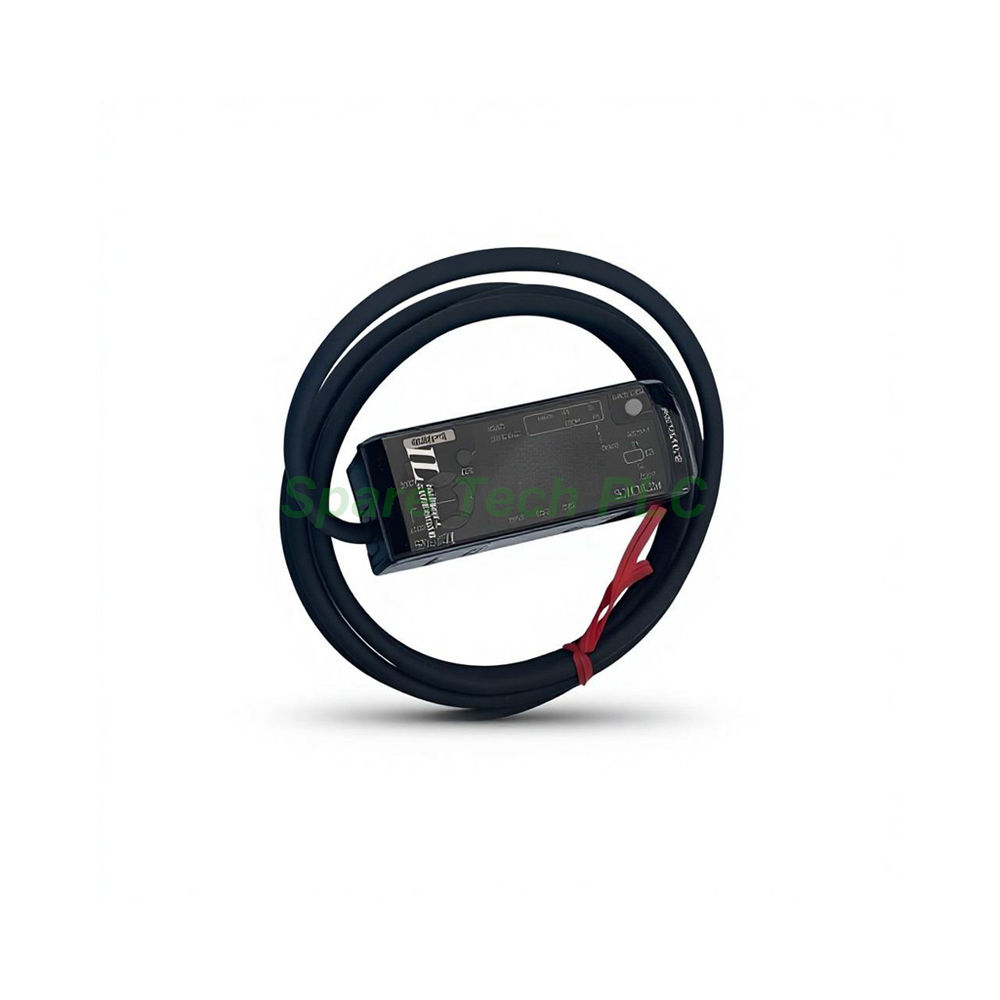

Keyence IL-1000 Analog Laser Amplifier Unit

Keyence IL-1000 Laser Sensor Amplifier

Product Introduction

The Keyence IL-1000 is a multi-function analog laser sensor amplifier unit. Keyence built this main unit for DIN-rail mounting inside control cabinets. It works with every IL series sensor head, so users can swap heads without changing the amplifier. A 6-digit display shows readings clearly. Furthermore, the minimum displayable unit depends on the connected head. For instance, it reaches 1 µm with the IL-S025 or IL-030. Meanwhile, the IL-300 shows 10 µm and the IL-600 shows 50 µm. The display refreshes about 10 times per second. As a result, the IL-1000 suits fast inline inspection and positioning tasks.

Technical Specifications

This amplifier unit delivers both judgment and analog outputs. Specifically, the judgment output uses an open collector design. Users can switch between NPN and PNP, and between N.O. and N.C. modes. Besides, an alarm output offers the same NPN/PNP changeover with N.C. logic.

For analog signals, the unit provides flexible choices. The voltage output supports ±5 V, 1 to 5 V, or 0 to 5 V. Its output impedance stays at 100 Ω. In addition, the current output covers 4 to 20 mA with a maximum load resistance of 350 Ω. Users select one analog type during setup. Therefore, the IL-1000 integrates easily with PLCs, recorders and motion controllers.

Electrical and Communication Notes

The supply voltage ranges from 10 to 30 VDC. Ripple of 10% (P-P) is acceptable, and the unit requires a Class 2 source. Power consumption stays at 2300 mW or less. At 30 V, current draw remains under 77 mA. This low draw helps in dense cabinet layouts.

This amplifier carries no built-in communication ports. Moreover, it supports no standalone protocols. However, communication expansion is possible through optional IL series communication units. Those units are sold separately. As a result, users can add Ethernet or other fieldbus links later without replacing the amplifier.

Mechanical and Environmental Parameters

The Keyence IL-1000 weighs about 150 g including attachments. Its DIN-rail mount saves panel space and speeds up installation. Operating temperature ranges from -10 to +50 °C without condensation or freezing. Relative humidity should remain between 35 and 85 % RH with no condensation. However, the protection rating is not published for this unit. Storage temperature data is also unavailable. Please keep the amplifier inside a clean, dry cabinet for best results.

Installation Guide

First, snap the IL-1000 onto a standard DIN rail inside your cabinet. Next, connect the sensor head cable to the amplifier input. Then, wire the supply voltage between 10 and 30 VDC. After that, choose your analog output type: voltage or current. Finally, set the judgment output logic to match your PLC input. Keep signal cables away from motor lines to reduce noise. Also, verify the display reading against a known target before running production.

Packaging List

• 1 × Keyence IL-1000 Amplifier Unit

• 1 × DIN-Rail Mounting Clip

• 1 × Terminal Block Cover

• 1 × Quick Start Guide

Shipping

We ship worldwide through Fedex, UPS and DHL. Most orders dispatch within 1–2 business days. Tracking details arrive as soon as the parcel leaves our warehouse.

FAQ

Q1: Which sensor heads work with the Keyence IL-1000?
A: It supports all IL series sensor heads, including the IL-600 and IL-300.

Q2: What analog outputs does the IL-1000 provide?
A: It offers ±5 V, 1 to 5 V, or 0 to 5 V voltage, plus 4 to 20 mA current.

Q3: Can I add communication to this amplifier unit?
A: Yes. Optional IL series communication units add network connectivity.

Q4: What is the supply voltage for the IL-1000?
A: The unit runs on 10 to 30 VDC with 10% ripple, Class 2.
