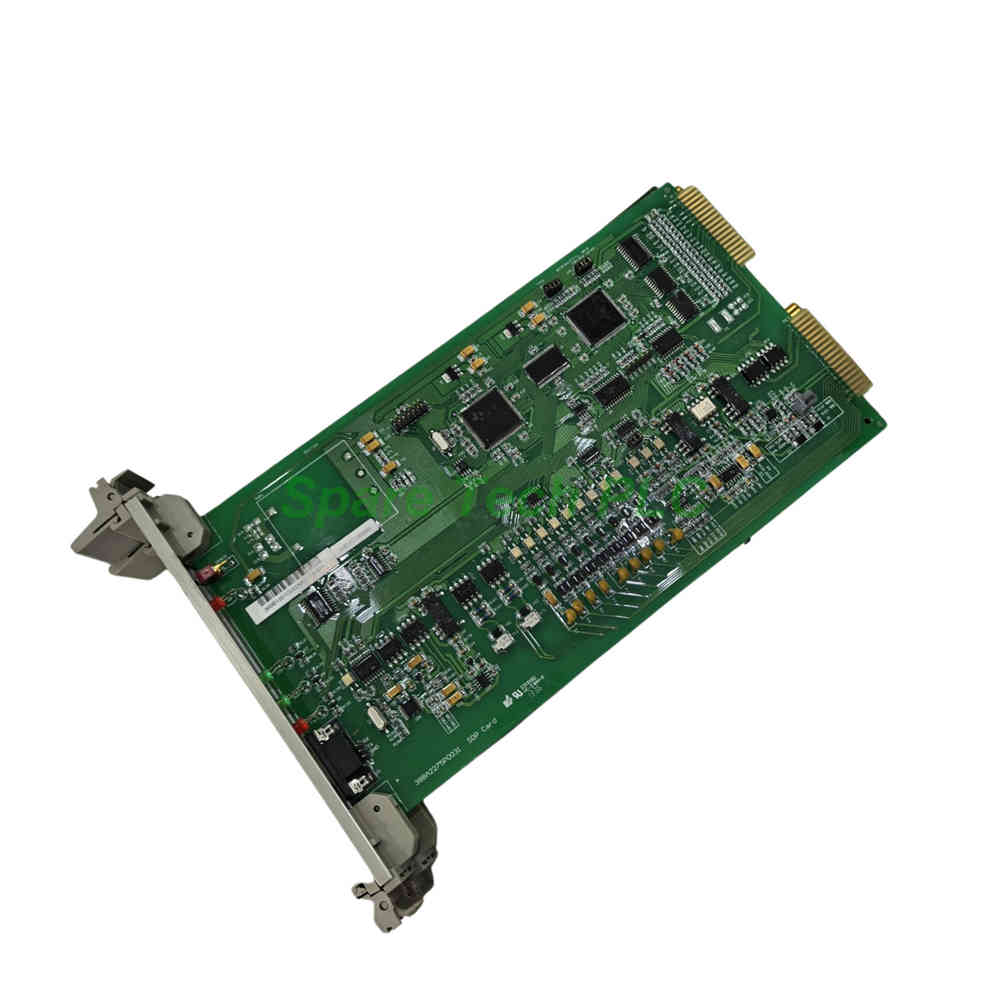

GE 369B1868G0008 Analog Output Terminal Board

369B1868G0008 GE Nexus Analog Output Module

Product Introduction

The GE 369B1868G0008 serves as a critical analog output interface within the GE Nexus series. Its primary role is to bridge the digital domain of a programmable logic controller (PLC) with the analog world of field actuators. Specifically, it translates processed digital values into continuous control signals for devices like electro-hydraulic servo valves and variable frequency drives. Consequently, this board ensures smooth and precise regulation of process variables such as speed, pressure, and flow. Moreover, the unit incorporates a dedicated CPU and system memory, which classifies it as an intelligent I/O module. Unlike standard passive boards, this smart design allows the 369B1868G0008 to handle complex control tasks independently, while still communicating seamlessly with the main PLC backplane.

Technical Specifications

The core of the GE 369B1868G0008 is its high-performance D/A conversion engine. It employs a 16-bit resolution digital-to-analog converter, which guarantees fine granularity and high accuracy in signal reproduction. This board offers three selectable output ranges to match various actuator requirements: 0 to +10V DC, -10 to +10V DC, and the industry-standard 4 to 20 mA current loop. For safety and noise immunity, every output channel includes optical coupler isolation that separates the control logic from the field power. Additionally, the module features a built-in signal conditioning stage that filters and amplifies the raw D/A output. This stage ensures stable signal delivery even over long cable runs. Furthermore, the 369B1868G0008 includes diagnostic LEDs for channel status and fault detection, which greatly simplifies troubleshooting.

Intelligent Processing Capabilities

What truly distinguishes this GE module is its onboard intelligence. The GE 369B1868G0008 houses its own microprocessor, local memory, and a dedicated system bus interface. Therefore, it can execute pre-programmed scaling, linearization, and ramping functions without burdening the main PLC's processor. For instance, you can configure the unit to auto-convert engineering units directly into output counts. Meanwhile, the board supports real-time read-back of the actual output value, enabling closed-loop verification within the I/O subsystem. This feature is especially valuable in safety-critical loops where output fidelity is paramount. Because of its intelligent architecture, the 369B1868G0008 also integrates smoothly with high-level control strategies like PID and motion profiles.

Application Scenarios

This analog output terminal board finds extensive use in heavy industries and process automation. Specifically, it excels in turbine governor systems, where precise valve positioning is mandatory. Additionally, it is a reliable choice for metallurgical plants managing rolling mill speed controls. In the chemical sector, the GE 369B1868G0008 frequently drives proportional control valves for reactant flow regulation. Its rugged design also suits offshore platforms and power generation stations, where environmental stress is high. Besides these, the module pairs well with variable frequency drives used in pumping and fan applications, delivering the 4-20mA signals they require. For original equipment manufacturers, this GE board provides a standardized analog output solution that reduces integration time. Ultimately, any application that demands high-fidelity analog actuation will benefit from the 369B1868G0008.

Mechanical and Environmental Parameters

From a physical standpoint, the GE 369B1868G0008 adopts a compact DIN-rail mountable form factor. Its dimensions are optimized for standard industrial cabinets, and the terminal block uses screw-clamp wiring for secure field connections. The board operates reliably within a temperature range of -20°C to +60°C and can withstand humidity up to 95% non-condensing. Moreover, it meets stringent vibration and shock resistance standards, making it suitable for high-machinery environments. The unit draws minimal power from the backplane, typically less than 5W, which reduces thermal stress inside the enclosure. Additionally, all external wiring ports are clearly labeled for polarity and range selection, minimizing installation errors.

Installation Guidelines

To install the GE 369B1868G0008, first ensure the main PLC chassis is de-energized. Next, secure the board onto the DIN rail using the integrated clips. After that, connect the 24V DC auxiliary power if required by your specific configuration. Then, wire the output channels to your actuators using shielded twisted-pair cables to preserve signal integrity. For current outputs, remember to set the range selection jumper to the 4-20mA position. Meanwhile, for voltage outputs, choose either the 0-10V or ±10V jumper setting accordingly. Once all wiring is complete, verify the connections against the terminal map printed on the board's silkscreen. Finally, power up the system and perform a loop check using a multimeter to confirm the output matches the commanded digital value.

Packaging List

• 1 x GE 369B1868G0008 Analog Output Terminal Board

• 1 x 20-pin ribbon cable for backplane connection

• 1 x terminal block connector (pre-wired)

• 1 x quick-start guide (hardcopy)

• 1 x mounting clip set (spare)

Note: Shipping is handled via Fedex, UPS, or DHL, depending on your regional service availability.

Frequently Asked Questions (FAQ)

Q1: What output ranges does the 369B1868G0008 support?
A1: The GE 369B1868G0008 supports three standard ranges: 0-10V DC, -10 to +10V DC, and 4-20 mA. You select the desired range via onboard jumpers.

Q2: Can this board work without a main PLC?
A2: No, the 369B1868G0008 is a slave I/O module. It requires connection to a GE Nexus backplane and a host PLC for command data and power.

Q3: How do I verify if my output is correct?
A3: Use a multimeter at the terminal block to measure voltage or current. Then, compare it with the digital value sent from the PLC. The board's built-in read-back feature also helps.

Q4: Is the 369B1868G0008 compatible with older GE PLC systems?
A4: Yes, this board is designed for the GE Nexus series, which includes several legacy PLC models. However, always check your specific backplane compatibility before installation.

Q5: What is the maximum cable length for the analog output?
A5: For 4-20mA signals, you can run up to 300 meters. For voltage outputs, keep cables shorter than 30 meters to minimize noise pickup and voltage drop.
