FANUC A06B-6096-H305 3-Axis Servo Amplifier 3.1kW

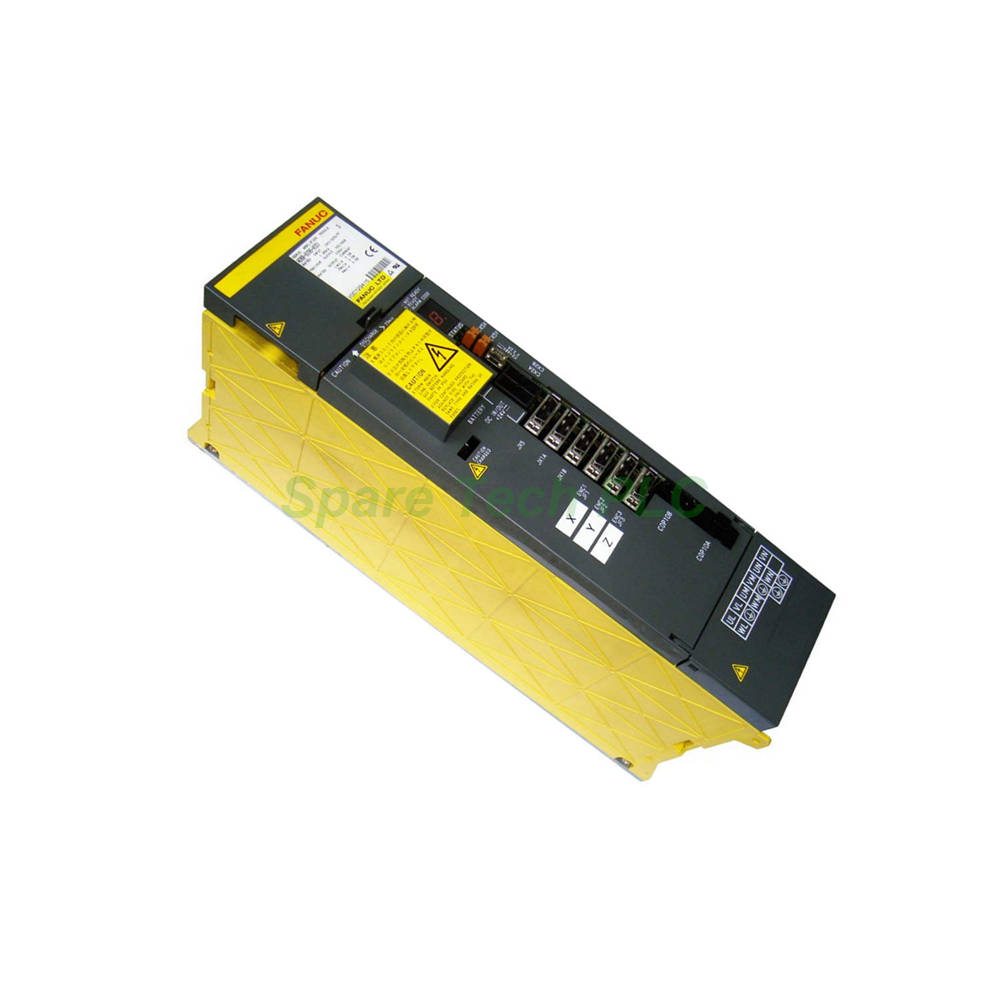

FANUC A06B-6096-H305 Three-Axis Servo Amplifier Overview

This servo amplifier provides coordinated motion control for complex CNC machinery. The FANUC A06B-6096-H305 supports three independent axes, making it ideal for multi-tasking machining centers. Its substantial power output ensures stable operation under heavy cutting loads. Additionally, this unit incorporates rugged construction to withstand challenging industrial conditions.

Technical Specifications and Power Ratings

The A06B-6096-H305 delivers a total power rating of 3.1 kW for demanding applications. It requires an input voltage between 283-325V and produces a maximum output of 230V. The output current distribution is axis-specific for flexibility. Specifically, the L-axis and M-axis each provide 3 Amps, while the N-axis delivers a higher 12.5 Amps.

Furthermore, this servo amplifier operates within a temperature range of 0 to 40 degrees Celsius. It also tolerates a maximum altitude of 1000 meters above sea level. The unit handles vibrations up to 5G, ensuring reliable performance in moving machinery. Consequently, the A06B-6096-H305 suits both precision finishing and heavy roughing operations.

Mechanical and Environmental Endurance

Weighing 8.62 kg, this three-axis drive maintains a compact footprint for cabinet mounting. Its robust housing protects internal components from workshop contaminants. The operating temperature limit of 40°C ensures safe use in most indoor production environments. Meanwhile, the 5G vibration tolerance allows installation on moving machine elements. This durability reduces the risk of failure from mechanical shock or ambient heat.

Installation and Integration Guidance

Installing the A06B-6096-H305 requires careful attention to power and axis connections. First, mount the unit securely on a flat, vibration-damped surface. Next, connect the 283-325V power supply with proper cable gauges for each axis. Additionally, confirm that ambient temperatures stay below 40 degrees Celsius during operation. Finally, wire each axis output according to the L, M, and N current ratings. For best results, use shielded cables to minimize electrical noise interference.

Application in Multi-Axis CNC Systems

This servo amplifier excels in CNC machining centers with multiple moving axes. It simultaneously controls the X, Y, and Z axes for synchronized tool movements. The distinct current output for the N-axis supports heavier loads like spindle drives. Moreover, the FANUC A06B-6096-H305 integrates with both milling and turning center controls. This versatility makes it a preferred choice for complex part manufacturing. Its 3.1 kW capacity handles medium-to-heavy duty cutting cycles efficiently.

Packaging List

• 1 x FANUC A06B-6096-H305 Servo Amplifier

• 1 x Axis connection terminal block set

• 1 x Product installation guide (digital version)

• 1 x Power input connector kit

• 1 x Anti-static protective packaging

Frequently Asked Questions (FAQ)

1. Can the A06B-6096-H305 control more than three axes?
No, this model is specifically designed for three-axis control. For additional axes, consider using multiple amplifiers or a higher-axis model.

2. What is the difference between the N-axis and the L/M axes?
The N-axis provides a higher output current of 12.5 Amps, whereas the L and M axes supply 3 Amps each. Therefore, the N-axis typically drives larger motors or spindles.

3. Is this amplifier suitable for high-altitude installations above 1000 meters?
FANUC specifies operation up to 1000 meters above sea level. Above this altitude, cooling efficiency may decrease, so derating or additional cooling may be required.

4. What cooling method does the A06B-6096-H305 use?
This unit relies on forced air cooling through its internal fan system. Ensure proper clearance around the ventilation openings for adequate airflow.

5. What are the shipping options for this product?
We ship this servo amplifier via FedEx, UPS, or DHL. Tracking information will be provided upon dispatch.
