FANUC A06B-6124-H208 2-Axis Servo Amplifier 400V

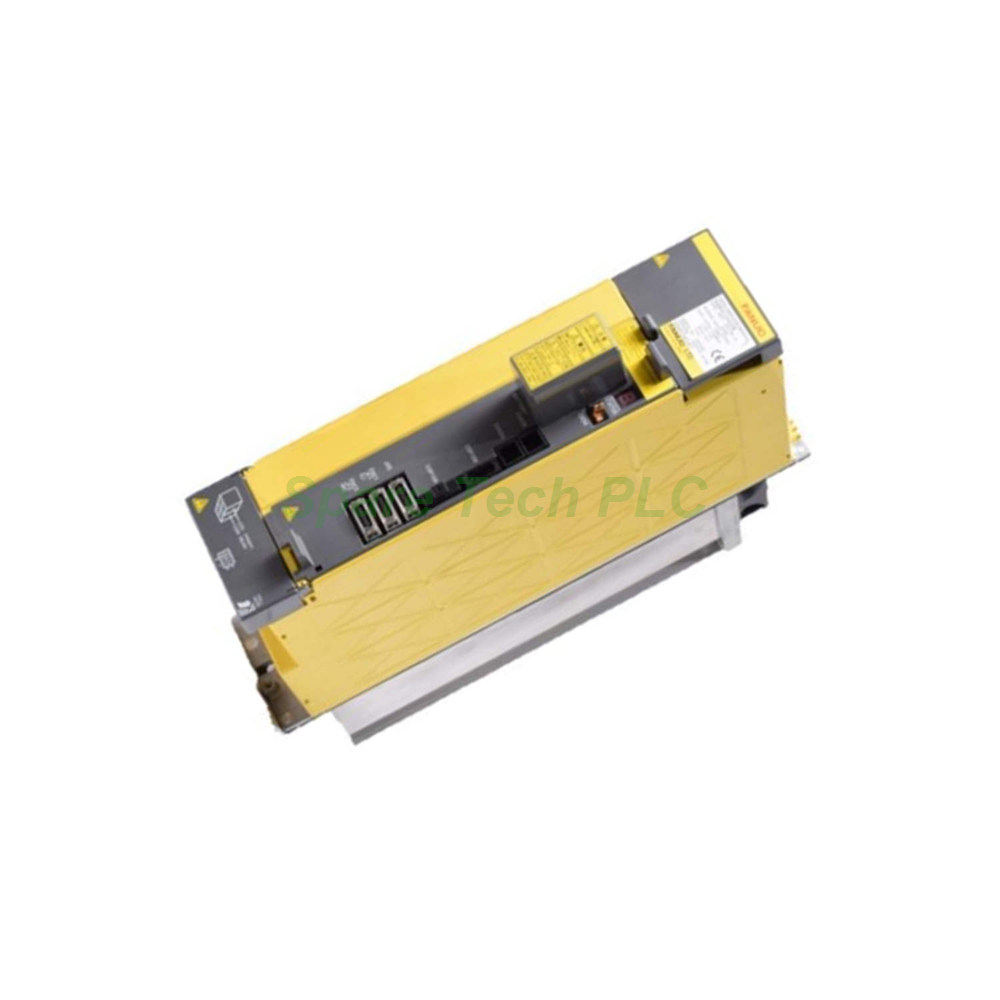

FANUC A06B-6124-H208 Two-Axis Servo Amplifier Overview

This servo amplifier module provides precise motion control for multi-axis CNC machinery. The FANUC A06B-6124-H208 supports two independent axes within a single compact enclosure. Its high-voltage design suits large machining centers and heavy industrial equipment. Furthermore, this unit incorporates robust protection and resilience against power fluctuations.

Technical Specifications and Power Ratings

The A06B-6124-H208 operates on a three-phase main power supply from 400 VAC to 480 VAC. It also requires a single-phase control supply of 200 VAC to 240 VAC for internal logic. The allowable voltage deviation ranges from -15% to +10%, accommodating load-induced variations. This flexibility ensures stable operation even in unstable grid conditions.

Moreover, this dual-axis amplifier delivers differentiated current outputs for versatile motor control. The first axis provides a rated output current of 13 A with a nominal limit of 40 A. Meanwhile, the second axis offers a rated current of 19 A and a limit of 80 A. This configuration allows the A06B-6124-H208 to drive both smaller positioning motors and larger spindle motors simultaneously.

Dynamic Response and Power Continuity

The module guarantees an instantaneous power failure recovery time of just 3 ms. This rapid response prevents unexpected machine stops during brief grid interruptions. Consequently, it maintains production continuity in high-speed machining operations. The power frequency range of 50/60 Hz ±1 Hz ensures global compatibility with regional power standards.

Environmental Resilience and Operating Conditions

This servo amplifier operates reliably in ambient temperatures from 0 to 55°C. For storage, it withstands temperatures between -20 and 60°C, offering flexibility for seasonal shutdowns. The humidity tolerance reaches 90% RH or below, provided condensation does not occur. Additionally, the unit handles operational vibration below 0.5G, which protects internal components from mechanical stress.

Installation and System Integration

Installing the A06B-6124-H208 requires careful attention to both main and control power connections. First, mount the unit securely in a well-ventilated cabinet with clearance for airflow. Next, connect the three-phase 400-480V main supply using appropriate cable gauges. Then, wire the single-phase 200-240V control supply to the designated terminals. Finally, connect each axis output to its respective servo motor. For optimal performance, ensure the ambient temperature stays below 55°C and vibration remains under 0.5G.

Application in High-Voltage CNC Systems

This servo amplifier primarily serves large CNC machining centers and heavy-duty automation lines. Its two-axis design reduces cabinet space while simplifying wiring complexity. The 400V voltage class matches standard industrial power distribution in many regions. Moreover, the FANUC A06B-6124-H208 integrates with both milling and turning applications. The asymmetric current ratings (13A and 19A) allow optimized pairing of motors based on load requirements. This versatility makes it a cost-effective solution for multi-axis control systems.

Packaging List

• 1 x FANUC A06B-6124-H208 Servo Amplifier Module

• 1 x Main power terminal connector set

• 1 x Control power terminal connector set

• 1 x Axis output connector kit

• 1 x Product installation and wiring manual (digital copy)

Frequently Asked Questions (FAQ)

1. Can the A06B-6124-H208 drive two motors with different power ratings?
Yes, this module features asymmetric current outputs. One axis provides 13A (40A limit) while the other provides 19A (80A limit), accommodating different motor sizes.

2. What happens if the main power voltage drops below 400V?
The unit allows a -15% deviation, meaning it can tolerate voltages down to approximately 340V. However, sustained undervoltage may reduce output performance.

3. How does the 3ms power failure guarantee benefit my operations?
This ensures the amplifier recovers quickly from brief grid interruptions. Consequently, your CNC machine avoids unexpected stops and production downtime.

4. Is this module suitable for high-humidity environments?
It operates normally at 90% RH or below, provided condensation is absent. Therefore, climate-controlled shop floors are recommended for long-term reliability.

5. What are the shipping options for this servo amplifier?
We ship this item via FedEx, UPS, or DHL. All orders include tracking information and insurance coverage.
