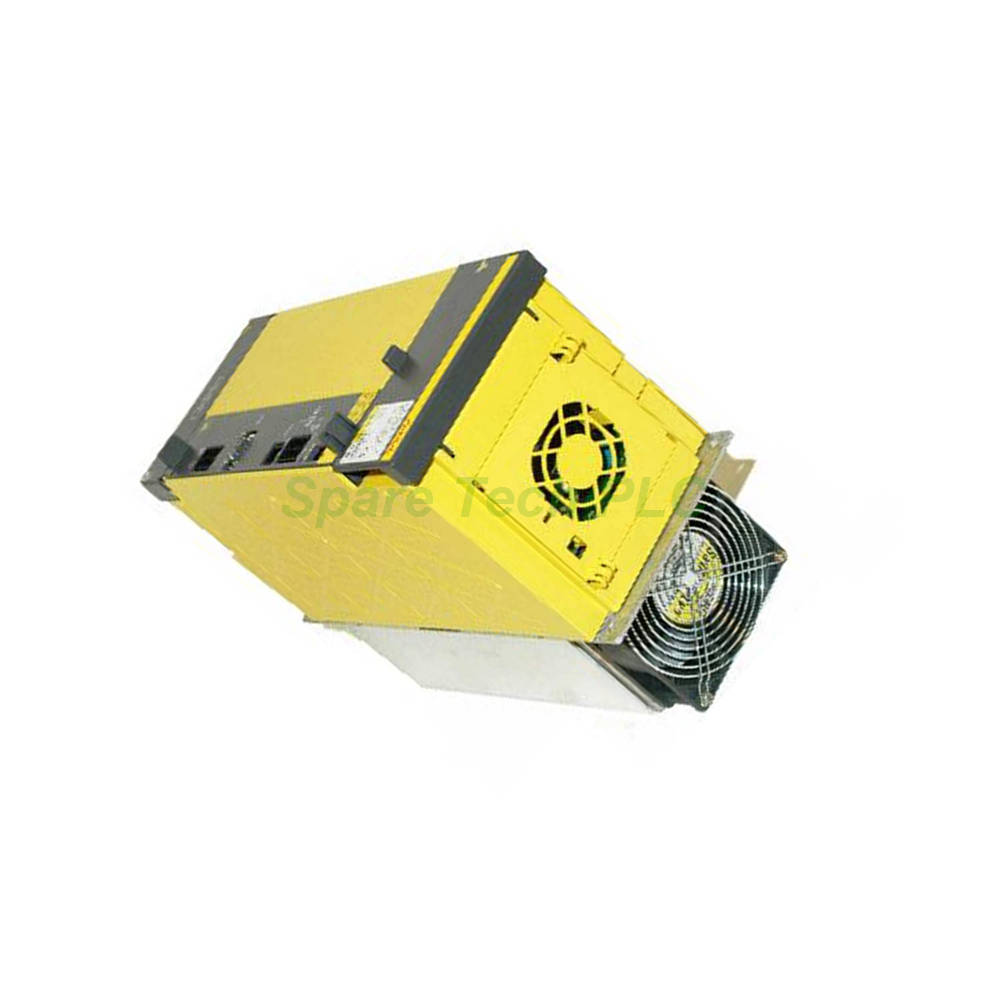

FANUC A06B-6110-H026 Power Supply Module 29.8kW

FANUC A06B-6110-H026 Power Supply Module Overview

This power supply module provides stable DC energy for FANUC servo systems and controls. The FANUC A06B-6110-H026 accepts three-phase AC input and converts it to regulated DC output. Its high power capacity supports multiple servo amplifiers in a single cabinet. Furthermore, this unit incorporates advanced power correction technology for optimal energy usage.

Technical Specifications and Electrical Performance

The A06B-6110-H026 operates with a 3-phase input configuration. Its input voltage range spans from 200 to 240 VAC with an input frequency of 50/60 Hz. At 200V, the input current reaches 106 A to support heavy loads. The DC output voltage ranges between 283-339 VDC, providing stable power for connected drives.

Moreover, this module delivers a rated output power of 29.8 kW for continuous operation. It supplies a rated output current of 26 A and can peak at 31 A for short durations. The efficiency rating stands at 92%, which minimizes heat generation and energy waste. Additionally, the power factor correction reaches 0.98, ensuring clean and stable power delivery to the system.

Mechanical Dimensions and Installation

The unit weighs 11.34 kg, making it manageable for single-person installation. Its compact dimensions are 190 mm (width) x 290 mm (height) x 170 mm (depth). This footprint allows flexible placement within standard 19-inch racks or control cabinets. The module's robust construction protects internal components from vibration and minor impacts.

Integration with Servo Systems

This power supply module is specifically designed to pair with FANUC servo amplifiers. It delivers the required DC bus voltage for multiple axis drives simultaneously. The high output current of 26 A supports medium to large servo configurations. Therefore, the A06B-6110-H026 is commonly used in machining centers, press lines, and robotic cells. Its 29.8 kW capacity ensures sufficient headroom for peak power demands during acceleration.

Operating Environment and Safety Features

The module operates reliably in ambient temperatures from 0°C to 40°C. It includes built-in overcurrent and overvoltage protection circuits for safety. The 92% efficiency reduces internal heat, extending component lifespan. Meanwhile, the power factor correction minimizes harmonic distortion on the AC mains. These features collectively enhance system stability and reduce operational costs.

Packaging List

• 1 x FANUC A06B-6110-H026 Power Supply Module

• 1 x AC input terminal connector set

• 1 x DC output terminal connector set

• 1 x Product installation and wiring guide

• 1 x Anti-static protective packaging

Frequently Asked Questions (FAQ)

1. Can the A06B-6110-H026 run on single-phase power?
No, this module specifically requires a 3-phase input. Operating on single-phase may cause insufficient power delivery and trigger protection faults.

2. What is the maximum output current this module can provide?
The rated continuous output current is 26 A, with a maximum peak of 31 A. However, the peak duration should be limited to avoid overheating.

3. Is this power supply compatible with non-FANUC servo drives?
While designed for FANUC systems, the DC output voltage range of 283-339 VDC may suit other drives. Always verify compatibility before installation.

4. What is the significance of the 92% efficiency rating?
Higher efficiency means less energy is lost as heat. This reduces cooling requirements and lowers electricity costs over the product's lifetime.

5. What shipping methods are available for this module?
We ship this item via FedEx, UPS, or DHL. All shipments include tracking and insurance coverage.
