FANUC A06B-6079-H208 Servo Amplifier 230V 80A

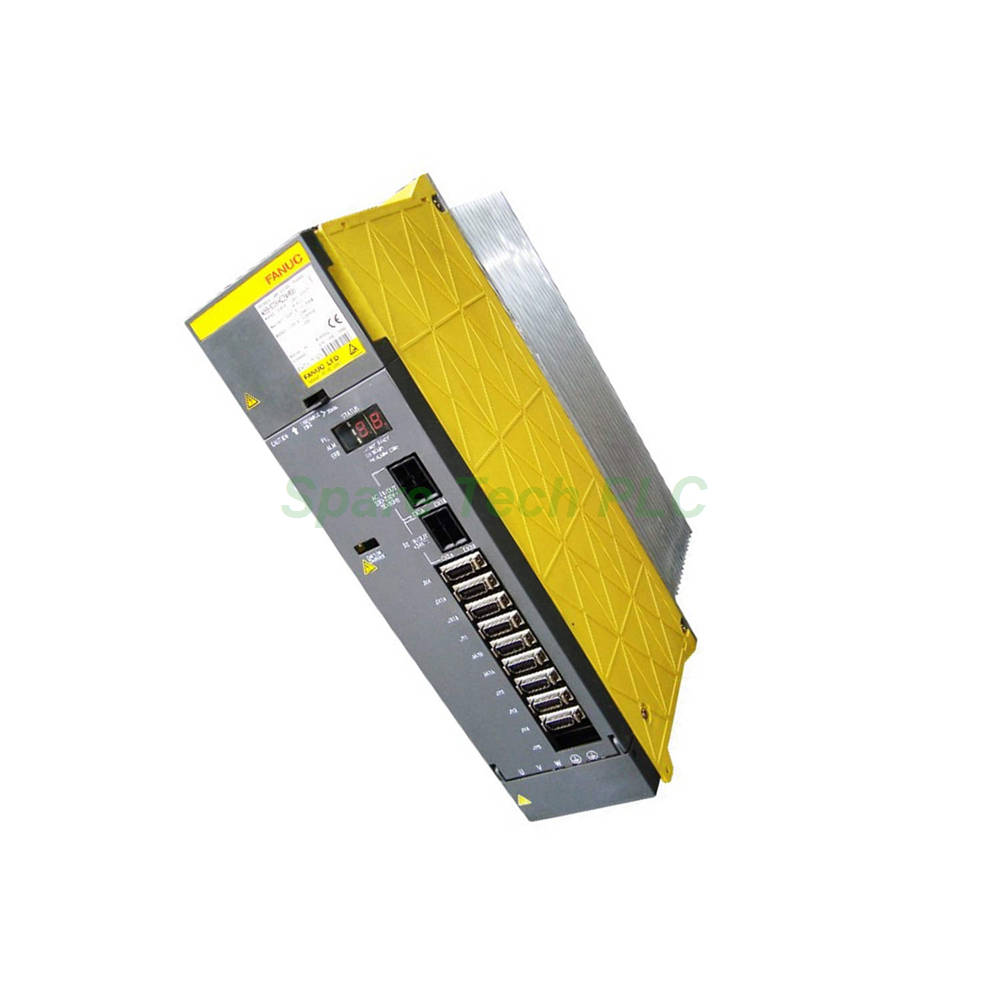

FANUC A06B-6079-H208 Servo Amplifier

Product Introduction

The FANUC A06B-6079-H208 is a high-performance dual-axis servo amplifier engineered specifically for CNC system applications. This robust drive belongs to the trusted FANUC A06B product line, known for its reliability in machining centers, turning machines, and other precision metalworking equipment. It operates on a 230V AC input and delivers a rated current range of 2-80A per axis, providing ample power for demanding servo motor control. With PWM interface compatibility and comprehensive protection features, the A06B-6079-H208 ensures efficient and stable operation in critical manufacturing environments.

Key Technical Specifications

Power and Input Characteristics

The FANUC A06B-6079-H208 requires a 230V AC input supply at either 50 or 60 Hz. This standard voltage level ensures compatibility with most industrial power systems worldwide. The unit employs a PWM (Pulse Width Modulation) control interface, which enables precise speed and torque regulation for connected servo motors. This modulation technique provides efficient power delivery with minimal heat generation, contributing to the amplifier's overall reliability.

Output Current and Dual-Axis Capability

This servo amplifier supports dual-axis operation, making it an efficient solution for CNC systems requiring coordinated motion on two axes. Each axis delivers a rated current range from 2 to 80 Amps, accommodating both small and large servo motors. The A06B-6079-H208 effectively manages spindle drives, feed axes, or auxiliary motion functions simultaneously. This dual-axis design reduces cabinet space requirements and lowers overall system cost compared to using two separate single-axis amplifiers.

Protection and Thermal Management

Reliability remains paramount in the A06B-6079-H208 design. It includes comprehensive protection circuitry against overload, overcurrent, and overvoltage conditions. These safeguards prevent damage to the amplifier and connected motors during abnormal operating conditions. The unit features an air-cooled design that facilitates efficient heat dissipation, ensuring stable operation even under continuous high-load conditions. This passive cooling approach eliminates the need for complex liquid cooling systems, simplifying installation and maintenance.

Environmental and Mechanical Parameters

Operating Conditions

The FANUC A06B-6079-H208 operates within a temperature range of 0°C to 55°C. This broad thermal tolerance suits demanding factory floor environments, from climate-controlled machine shops to high-ambient production areas. The unit is designed for vertical or wall-mounted installation, providing flexibility in control cabinet layout. Its orientation promotes natural airflow for effective cooling.

Physical Dimensions and Weight

This servo amplifier weighs approximately 6.80 kg (15.00 lbs), which requires proper mounting support but remains manageable for a single technician during installation. Its compact form factor facilitates efficient space utilization in crowded panels. The robust construction ensures durability in industrial environments with vibration and temperature fluctuations.

Installation and Commissioning Guide

Proper installation of the FANUC A06B-6079-H208 demands careful planning and adherence to FANUC guidelines. First, mount the amplifier vertically on a flat, grounded surface inside the control cabinet using appropriate hardware. Ensure adequate clearance around the unit for proper airflow and heat dissipation. Next, connect the primary 230V AC power supply to the designated input terminals, observing correct phase and grounding. Then wire the servo motor cables to the L-axis and M-axis output terminals, matching the pin assignments specified in the technical manual. After power connections, connect the PWM control signals from the CNC controller to the respective input ports. Finally, verify all protection systems are functional before attempting motion commands. Always perform initial startup with the motor decoupled to confirm correct direction and response.

Packaging List

When you receive your FANUC A06B-6079-H208, the package contains the following items:

• A06B-6079-H208 servo amplifier unit (1 pc)

• Mounting screws and brackets (pre-installed)

• Terminal cover (attached)

• Quick reference guide (printed sheet)

• Factory test certificate (summarizing functional checks)

Note: Power cables, motor cables, control signal cables, and communication cables are sold separately.

Shipping and Logistics

All orders for the FANUC A06B-6079-H208 ship via world-class carriers including FedEx, UPS, and DHL. We handle each package with proper anti-static and shock-proof materials to prevent transit damage. Tracking numbers will be provided within 24 hours after dispatch. For international shipments, we manage all customs documentation to ensure smooth delivery to your destination.

Frequently Asked Questions

Q1: What CNC controllers are compatible with the A06B-6079-H208?
The FANUC A06B-6079-H208 works with FANUC CNC systems, including Series 0i, 30i, and 31i controllers that support PWM interface for servo control. It also integrates with compatible third-party CNC systems.

Q2: Can I use this amplifier with single-axis configuration?
Yes. While the A06B-6079-H208 is a dual-axis drive, you can configure it to operate with only one axis connected. Simply leave the unused axis outputs disconnected and configure the parameters accordingly.

Q3: What do the rated current values 2-80/80 A mean?
The notation 2-80/80 A indicates each axis supports a rated current range from 2A minimum to 80A maximum. This wide range accommodates various servo motor sizes, from small feed motors to large spindle drives.

Q4: How do I reset the amplifier after a fault condition?
After addressing the root cause of the fault—such as clearing an overload or resetting an overcurrent condition—cycle power to the A06B-6079-H208 or send a reset command through the CNC controller. Most fault conditions clear automatically once the trigger is resolved.

Q5: What are the common applications for the A06B-6079-H208?
This servo amplifier is widely used in CNC machining centers, milling machines, turning centers, and grinding machines. Its dual-axis capability makes it particularly suitable for applications requiring coordinated motion between two axes, such as X-Y tables or dual-spindle configurations.
