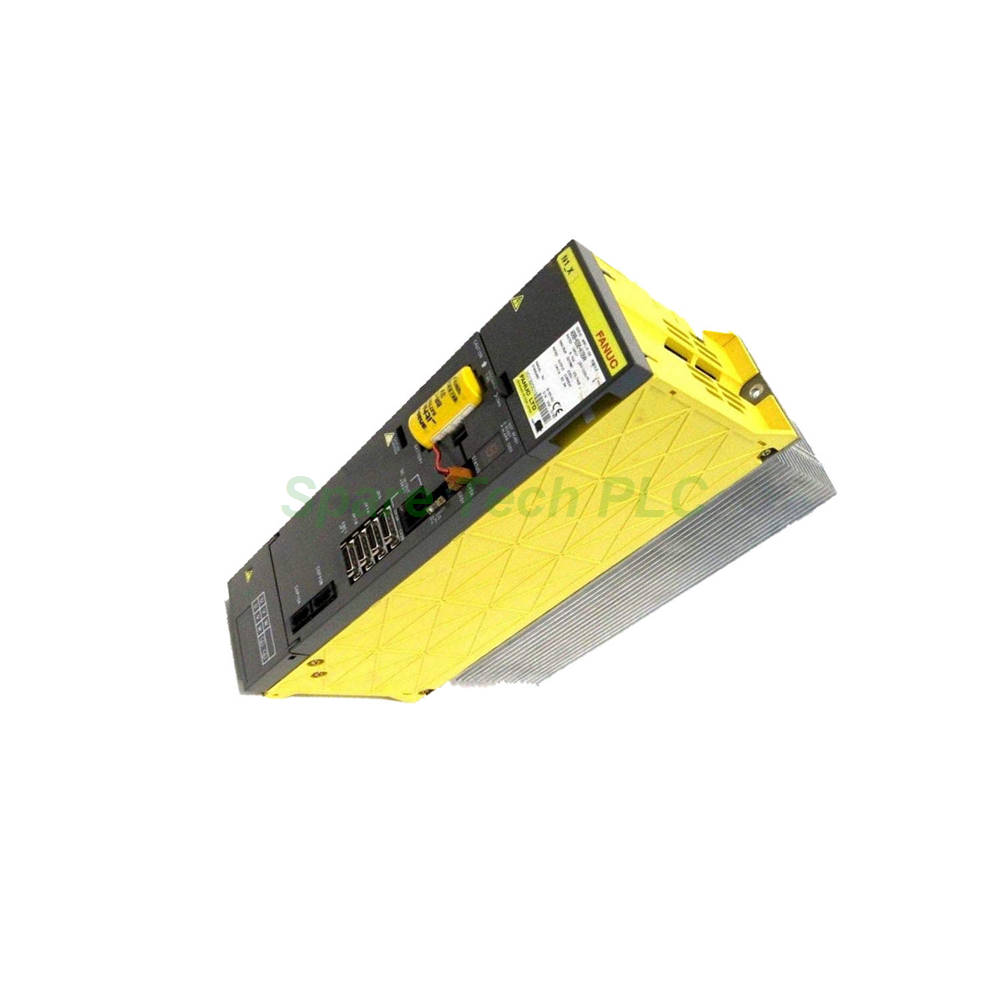

The FANUC A06B-6096-H205 is a high-performance servo amplifier engineered for precise motor control in automated systems. This unit belongs to the trusted FANUC A06B product line, known for its reliability in CNC machinery, robotics, and motion control applications. It operates on a 200-230V AC input and supports both analog and digital control inputs for flexible integration. With robust protection features and compact dimensions, the A06B-6096-H205 delivers consistent power delivery to servo motors in demanding manufacturing environments.
The FANUC A06B-6096-H205 requires a 200-230V AC input supply at either 50 or 60 Hz. This wide input voltage range ensures compatibility with standard industrial power systems worldwide. The unit accepts both analog and digital control inputs, providing flexibility when integrating with various CNC controllers and motion systems. This dual-input capability simplifies retrofitting or upgrading existing equipment without extensive rewiring.
This servo amplifier delivers distinct output currents for two axes. Specifically, the L-axis provides 5.9 Amps, while the M-axis delivers 12.5 Amps. These current ratings ensure sufficient power to drive servo motors for spindle control, feed axes, or auxiliary motion functions. The A06B-6096-H205 matches the power requirements of mid-range FANUC servo motors commonly used in machining centers and robotic cells.
Reliability stands at the forefront of this amplifier's design. It includes comprehensive protection circuitry against overcurrent, overvoltage, and thermal overload conditions. These safeguards prevent damage to the unit and connected motors during abnormal operating conditions. Additionally, built-in LED status indicators provide real-time feedback on operational status, fault conditions, and power availability. This visual monitoring capability significantly simplifies troubleshooting and reduces diagnostic time.
The FANUC A06B-6096-H205 operates within a temperature range of 0 to 40 degrees Celsius. This thermal tolerance suits typical factory floor conditions, from climate-controlled clean rooms to ambient workshop environments. Furthermore, the unit withstands maximum vibrations of 5G, ensuring stable performance even on moving machinery or near heavy processing equipment. It functions reliably at altitudes up to 1000 meters above sea level without derating.
With approximate dimensions of 200 x 75 x 235 mm, this servo amplifier maintains a compact footprint suitable for tight control cabinets. Its slim profile allows for efficient space utilization in crowded panels. The unit weighs 6.80 kg (15.00 lbs), which requires proper mounting support but remains manageable for a single technician during installation.
Proper installation of the FANUC A06B-6096-H205 requires careful planning and adherence to FANUC guidelines. First, mount the amplifier securely on a flat, grounded surface inside the control cabinet using appropriate hardware. Ensure adequate clearance around the unit for proper airflow and heat dissipation. Next, connect the primary 200-230V AC power supply to the designated input terminals, observing correct phase and grounding. Then wire the servo motor cables to the L-axis and M-axis output terminals, matching the pin assignments specified in the technical manual. After power connections, connect the analog or digital control signals from the CNC controller to the respective input ports. Finally, verify all LED indicators show normal status before attempting motion commands. Always perform initial startup with the motor decoupled to confirm correct direction and response.
When you receive your FANUC A06B-6096-H205, the package contains the following items:
A06B-6096-H205 servo amplifier unit (1 pc)
Mounting screws and brackets (pre-installed)
Terminal cover (attached)
Quick reference guide (printed sheet)
Factory test certificate (summarizing functional checks)
Note: Power cables, motor cables, control signal cables, and communication cables are sold separately.
All orders for the FANUC A06B-6096-H205 ship via world-class carriers including FedEx, UPS, and DHL. We handle each package with proper anti-static and shock-proof materials to prevent transit damage. Tracking numbers will be provided within 24 hours after dispatch. For international shipments, we manage all customs documentation to ensure smooth delivery to your destination.
Q1: What controllers are compatible with the A06B-6096-H205?
The FANUC A06B-6096-H205 works with FANUC CNC systems, including Series 0i, 30i, and 31i controllers. It also integrates with third-party motion controllers that provide analog or digital command signals.
Q2: Can I use this amplifier with a motor different from FANUC?
While the A06B-6096-H205 is optimized for FANUC servo motors, it may work with compatible third-party motors if the voltage, current, and feedback specifications match. However, FANUC recommends using matched FANUC motors for optimal performance and warranty compliance.
Q3: What do the LED status indicators on the A06B-6096-H205 mean?
The LEDs indicate power status, ready condition, and fault codes. A steady green light typically means normal operation, while flashing red or amber indicates specific fault conditions. Refer to the user manual for detailed fault code interpretation.
Q4: How do I reset the amplifier after a fault condition?
After addressing the root cause of the fault—such as clearing an overload or resetting an overcurrent condition—cycle power to the A06B-6096-H205 or send a reset command through the CNC controller. Most fault conditions clear automatically once the trigger is resolved.
Q5: What are the common applications for the A06B-6096-H205?
This servo amplifier is widely used in CNC machining centers, milling machines, turning centers, robotic arms, and automated assembly systems. Its dual-axis capability makes it particularly suitable for applications requiring coordinated motion between two axes.
| Brand Name | |
| Model No. | A06B-6096-H205 |
| Product Type | Servo Amplifier |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
