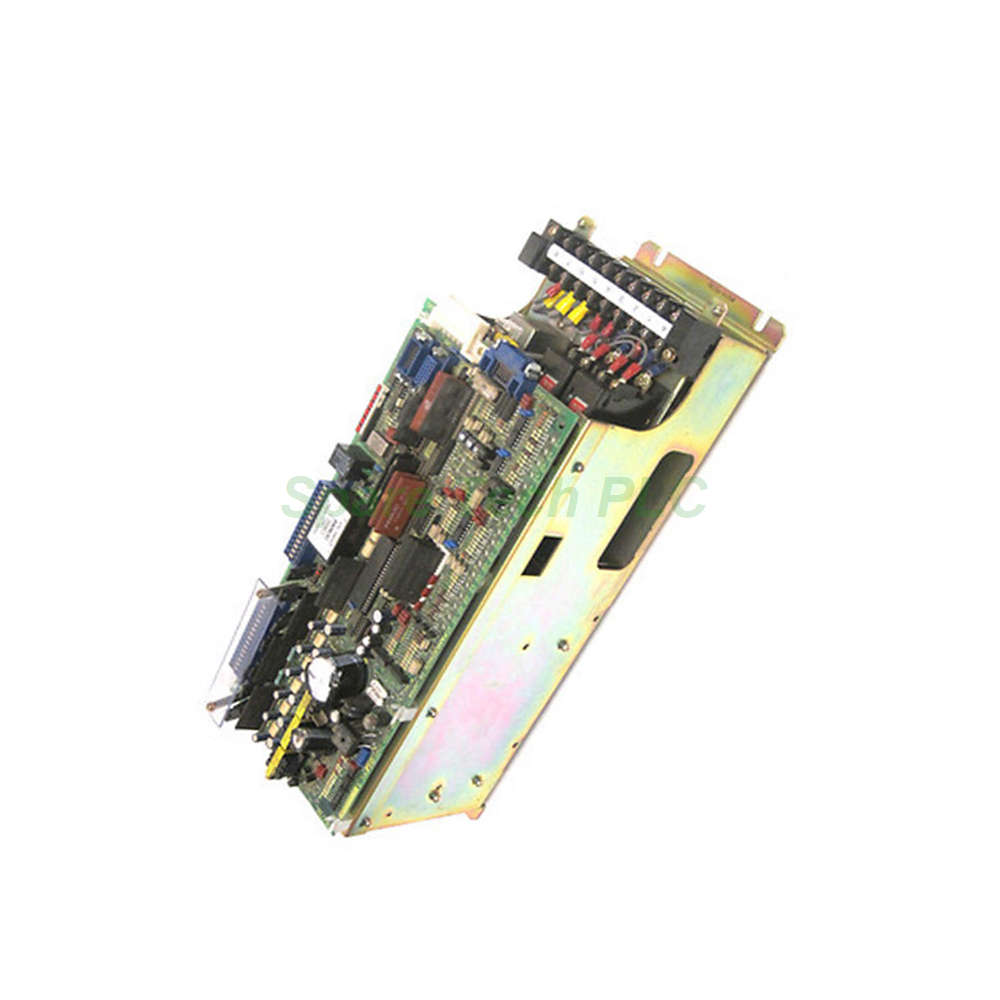

FANUC A06B-6050-H102 Servo Drive

A06B-6050-H102 FANUC Servo Drive for Rotary & Linear Motors

Product Introduction

The A06B-6050-H102 is a flexible servo drive from FANUC, designed to handle a wide variety of motion control tasks. This unit supports both rotary and linear motors, making it suitable for machining centers, transfer lines, and automated assembly systems. It also accommodates Model 0/5 configurations, which enhances its adaptability across different machine platforms. The drive operates within a 0 to 40 degrees Celsius temperature range, ensuring stable performance in typical factory environments. Additionally, its 5G vibration tolerance and 1000-meter altitude rating make it a dependable choice for diverse industrial settings.

Motor Compatibility and Application Scope

One of the key strengths of the A06B-6050-H102 is its support for both rotary and linear motor types. Rotary motors are commonly used for spindle drives, feed axes, and turntable positioning. Linear motors, on the other hand, excel in high-speed, high-precision applications like laser cutting and wafer inspection. This dual compatibility allows manufacturers to standardize on a single drive model for multiple machine types. Furthermore, the drive is well-suited for automotive production lines, where both motor types are frequently employed. This versatility reduces spare part inventories and simplifies training for maintenance staff.

Environmental and Mechanical Specifications

The drive operates effectively across a 0 to 40 degrees Celsius ambient temperature range, covering most indoor industrial conditions. It also tolerates up to 5G of vibration, which ensures reliable performance on high-speed machinery or equipment with mechanical oscillations. For high-altitude facilities, the unit is rated for use up to 1000 meters above sea level without derating. Weighing 8.62 kg, this compact drive facilitates easy mounting in crowded control cabinets. Its robust enclosure protects internal components from dust and minor impacts. These specifications collectively contribute to long service life and reduced unplanned downtime.

Control and Configuration Flexibility

The A06B-6050-H102 supports Model 0/5 drive configurations, offering engineers multiple setup options for different performance requirements. This feature allows the drive to match various motor sizes and load characteristics through parameter adjustments. Additionally, the unit integrates seamlessly with FANUC CNC controllers, enabling coordinated multi-axis operations. Its digital interface ensures fast communication and precise command execution. For retrofitting projects, this drive can replace older models with minimal wiring changes. Consequently, it serves as a practical upgrade path for modernizing existing production equipment.

Installation Best Practices

Proper installation is essential to maximize the performance and lifespan of this servo drive. First, mount the A06B-6050-H102 on a flat, vertical panel with sufficient clearance for airflow and maintenance access. Ensure the ambient temperature stays between 0 and 40 degrees Celsius during operation. Use shielded cables for all power and signal connections to reduce electromagnetic noise. Additionally, secure the grounding terminal to a low-impedance earth ground for safety and stability. Install a protective circuit breaker on the input power line as an added precaution. Following these steps will help achieve optimal drive performance and reliability.

Packaging and Shipping Details

Each package contains one A06B-6050-H102 servo drive unit, a user manual, and necessary mounting hardware. The drive is protected with anti-static material and placed in a durable cardboard box. All accessories are individually sealed and labeled for easy identification. We ship orders via FedEx, UPS, or DHL with comprehensive tracking information. Delivery times typically range from 3 to 7 business days depending on your location. Please inspect the contents immediately upon receipt and report any discrepancies or damage.

Frequently Asked Questions (FAQ)

1. Can this drive control both AC and DC motors?
No, the A06B-6050-H102 is designed exclusively for FANUC AC servo motors, both rotary and linear types.

2. What is the difference between Model 0 and Model 5 configurations?
Model 0 typically refers to basic performance settings, while Model 5 offers enhanced response and higher current capacity.

3. Is this drive suitable for robotic applications?
Yes, it works well in robotics, particularly for joint and linear axis control, provided the motor types are compatible.

4. How do I set up the drive for a linear motor?
You will need to adjust specific parameters for linear motor commutation and feedback scaling. Refer to the manual for detailed steps.

5. What maintenance does this drive require?
Regularly clean the cooling vents and check all cable connections. Also, monitor the ambient temperature to prevent overheating.
