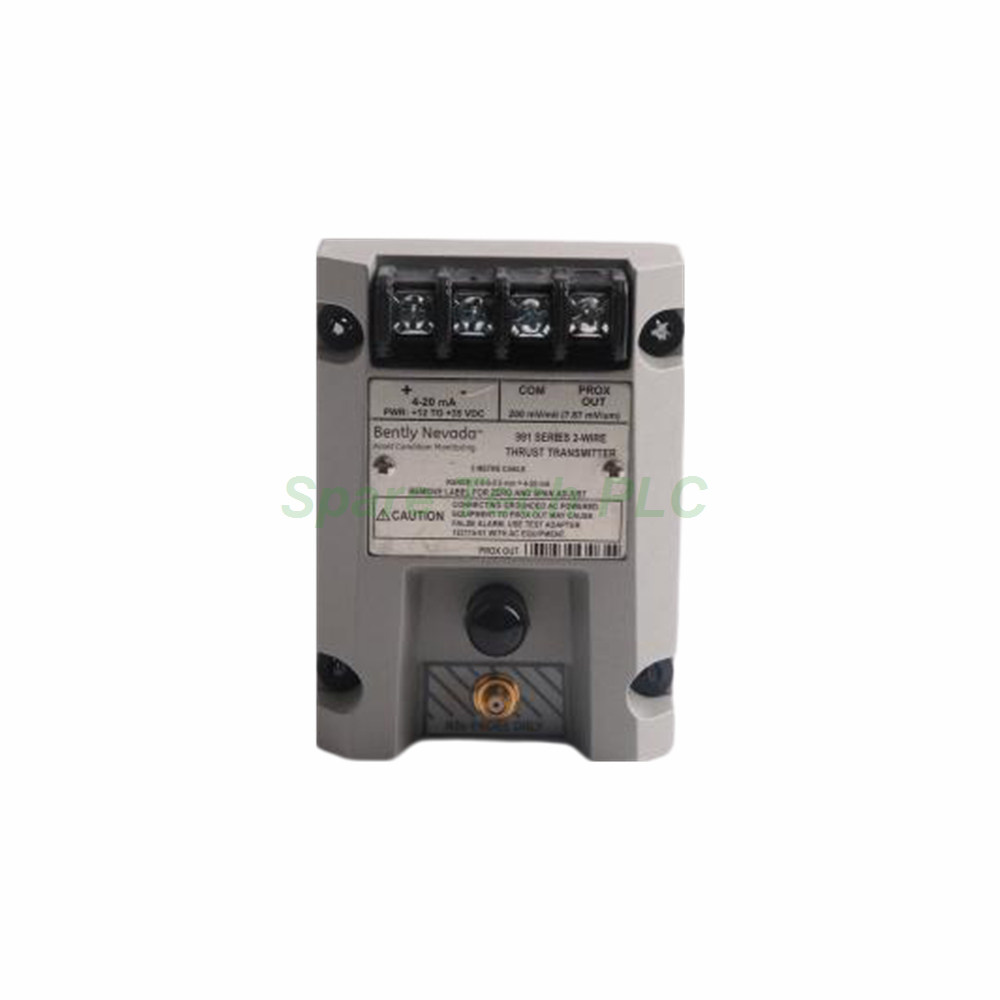

Industrial plants must monitor machinery health constantly to prevent catastrophic downtime and protect expensive equipment. Specifically, the Bently Nevada 991-06-50-01-00 transmitter plays a vital role by tracking the axial shaft position of high-speed rotating assets. This high-precision device interfaces directly with a non-contacting 3300 NSv proximity probe to deliver continuous, reliable machine diagnostics.
Furthermore, the 991-06-50-01-00 processes raw eddy current signals and converts them into a standard proportional current loop. Plant operators receive stable measurements through this streamlined process, which eliminates the need for intermediate monitors. Therefore, you can integrate this compact unit directly into your existing distributed control system (DCS) or programmable logic controller (PLC).
First, the engineering of the 991-06-50-01-00 ensures outstanding signal integrity under demanding operational conditions. The internal circuitry utilizes non-interacting external zero and span adjustments, which simplifies field calibration tasks significantly. Meanwhile, the device maintains a loop accuracy within ±1.5% across the full-scale range to guarantee dependable metrics.
Additionally, the transmitter incorporates a smart "Not OK" signal defeat function to protect your machinery from false data. The loop current automatically drops below 3.6 mA within 100 microseconds if the system detects a probe fault. Consequently, your control framework can quickly distinguish between an actual mechanical error and a minor instrument failure.
Regarding power infrastructure, this transmitter requires an external supply between +12 Vdc to +35 Vdc at its main terminals. It operates efficiently within a two-wire configuration, which minimizes complex wiring layouts during large-scale facility installations. For instance, the maximum allowable loop resistance reaches 1,000 Ohms when you power the unit at the maximum voltage level.
Moreover, the linear range spans from 0.25 mm to 1.65 mm for the raw proximity output signal. This specific model features a full-scale measurement option of 0.6-0-0.6 mm, which is ideal for precise thrust tracking. Finally, typical current limiting caps the output at 23 mA to shield downstream cards from accidental overcurrent damage.
Hardware durability remains a core benefit of the 991-06-50-01-00 thrust transmitter during long-term field deployment. Specifically, the compact housing weighs only 0.43 kg (0.9 lbm), which minimizes physical stress on internal control cabinet backplanes. The rugged enclosure protects sensitive components from dust and humidity commonly found in heavy industrial environments like petrochemical plants.
In addition, the unit performs reliably across a broad operating temperature range from -35°C to +85°C. If you need to store the device before active commissioning, it safely withstands storage temperatures between -51°C to +100°C. These resilient thermal properties guarantee stable performance whether your facility operates in extreme sub-zero climates or high-temperature processing zones.
Mounting the 991-06-50-01-00 takes very little time because the factory includes pre-installed 35 mm DIN-rail clips. Technicians can quickly snap the transmitter onto standard rails inside a local junction box or standard electrical panel. However, you must leave adequate physical clearance around the unit to ensure proper heat dissipation during continuous operation.
Next, connect the designated 3300 NSv proximity probe and its matching extension cable directly to the transmitter inputs. This specific ordering profile supports a total system length option of 5.0 meters (16.4 feet) for optimal flexibility. For the best noise immunity, you should route the signal wires away from high-voltage motor cables inside the conduit.
We manage your logistical requirements professionally by dispatching all factory orders through top-tier international express couriers. Specifically, we ship these precision sensor modules worldwide using trusted networks like Fedex, UPS, and DHL. This distribution strategy guarantees fast delivery times, door-to-door cargo tracking, and safe handling for your sensitive automation parts.
1 x Bently Nevada 991-06-50-01-00 Probe Vibration Transmitter
1 x Factory Installed 35 mm DIN-rail Mounting Clip Set
This module specifically measures axial position or thrust displacement on rotating machinery shafts to prevent mechanical damage.
The unit works seamlessly with one non-contacting 3300 NSv proximity probe and its corresponding extension cable.
The transmitter triggers a Not OK condition and drops the current output below 3.6 mA within 100 microseconds.
No, it converts the probe signal directly into a 4-20 mA output for direct connection to PLCs or DCS frameworks.
You must provide a stable DC input voltage ranging from +12 Vdc to +35 Vdc at the terminal block.
| Brand Name | |
| Model No. | 991-06-50-01-00 |
| Product Type | Probe Vibration Transmitter |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
