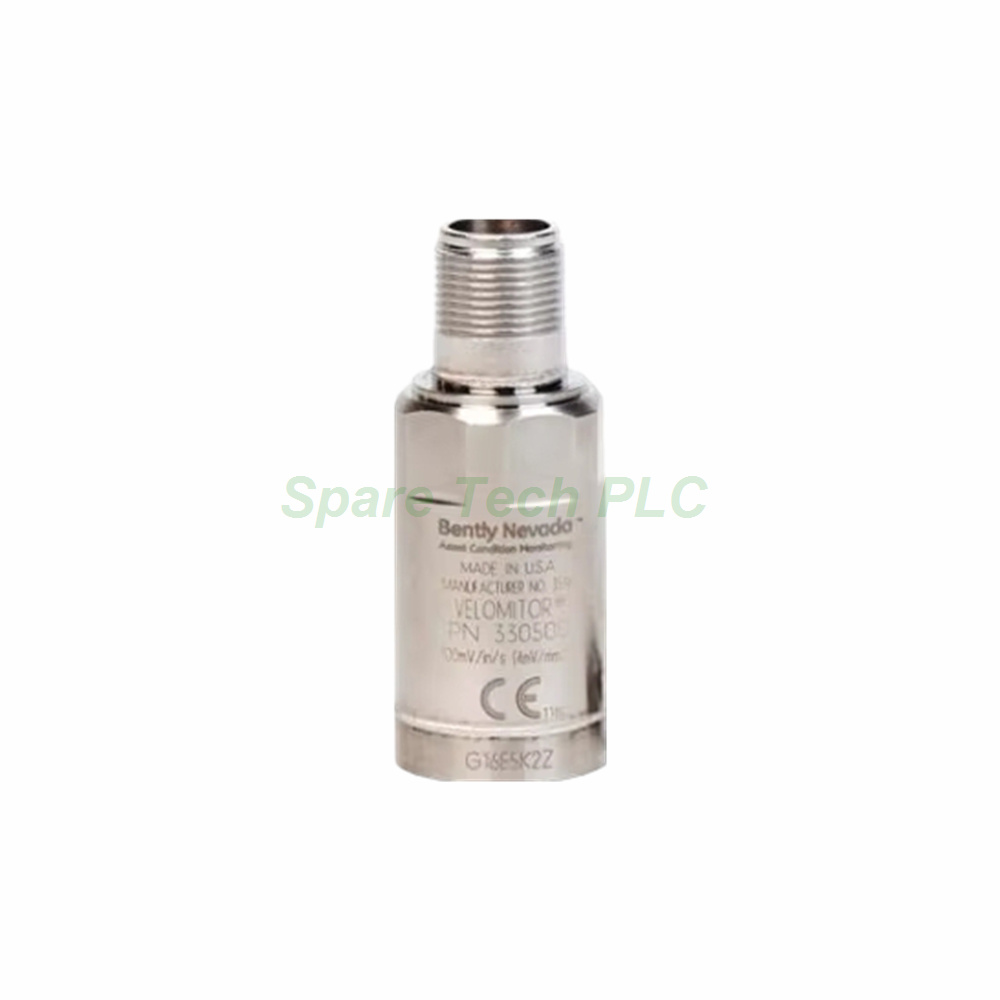

Additionally, industrial plants utilize this robust hardware component to detect critical structural vibrations in rotating machinery. Specifically, the heavy-duty 330500-02-01 measures absolute vibration velocity directly on casing covers or bearing housings. Engineers trust this specialized equipment because it offers exceptional signal processing clarity across harsh industrial environments.
First, the device features a standard electrical sensitivity of 3.94mV/mm/s (100 mV/in/s) ±5% for accurate data gathering. Furthermore, the electronic transducer maintains an impressive frequency response range spanning from 4.5 Hz to 5 kHz. Meanwhile, the internal circuitry supports a maximum peak velocity range of 1270 mm/s (50 in/s). Therefore, the device delivers highly linear amplitude readings with less than 5% transverse sensitivity during operation.
In addition, the unit requires a stable output bias voltage between -12 VDC and -15 VDC. Meanwhile, the dynamic output impedance stays below 2400 Ω to minimize overall signal degradation. Users can confidently extend the transmission line up to 305 meters using approved cabling systems. Consequently, the low broadband noise floor ensures crystal-clear monitoring output even at extreme measuring distances.
Moreover, the durable casing consists of high-grade 316L stainless steel to resist severe chemical corrosion. For instance, the hermetically-sealed construction withstands an operating temperature range from -55°C to 121°C. Besides, the rugged mechanical assembly provides excellent shock survivability up to 5,000 g peak forces. Finally, the physical dimensions include a 25.3 mm diameter and a total height of 63.2 mm.
Next, technicians must apply a precise mounting torque between 32-46 kg cm during the physical installation process. Specifically, this model utilizes an M8 x 1 threaded hole connection for secure mechanical coupling. Alternatively, operators should inspect the 2-pin Mil-C-5015 connector interface prior to attaching the external field wiring. Therefore, proper mounting orientation guarantees maximum tracking efficiency and prevents false diagnostic trip alarms.
Furthermore, we provide fast international shipping options for all global automation clients. Specifically, our logistics team dispatches orders safely through dependable freight carriers including Fedex, UPS, DHL.
Packaging List
1 x Bently Nevada 330500-02-01 Sensor Unit
1 x M8 x 1 Threaded Mounting Stud
What is the main function of the Bently Nevada 330500-02-01? The specialized sensor measures casing vibration velocity on critical rotating industrial machinery.
What mounting thread size does this specific model option include? This particular unit comes equipped with a metric M8 x 1 integrated mounting thread.
What is the standard dynamic sensitivity rating for this transducer? The device provides a precise calibrated sensitivity of 3.94mV/mm/s or 100 mV/in/s.
Can the 330500-02-01 handle hazardous environment installations safely? Yes, the product holds official CSA/US/C agency approvals for various classified hazardous areas.
Which shipping couriers do you use for delivering this hardware? We regularly ship our industrial automation components worldwide using reliable services from Fedex, UPS, DHL.
| Brand Name | |
| Model No. | 330500-02-01 |
| Product Type | Velomitor Piezo-velocity Sensor |
