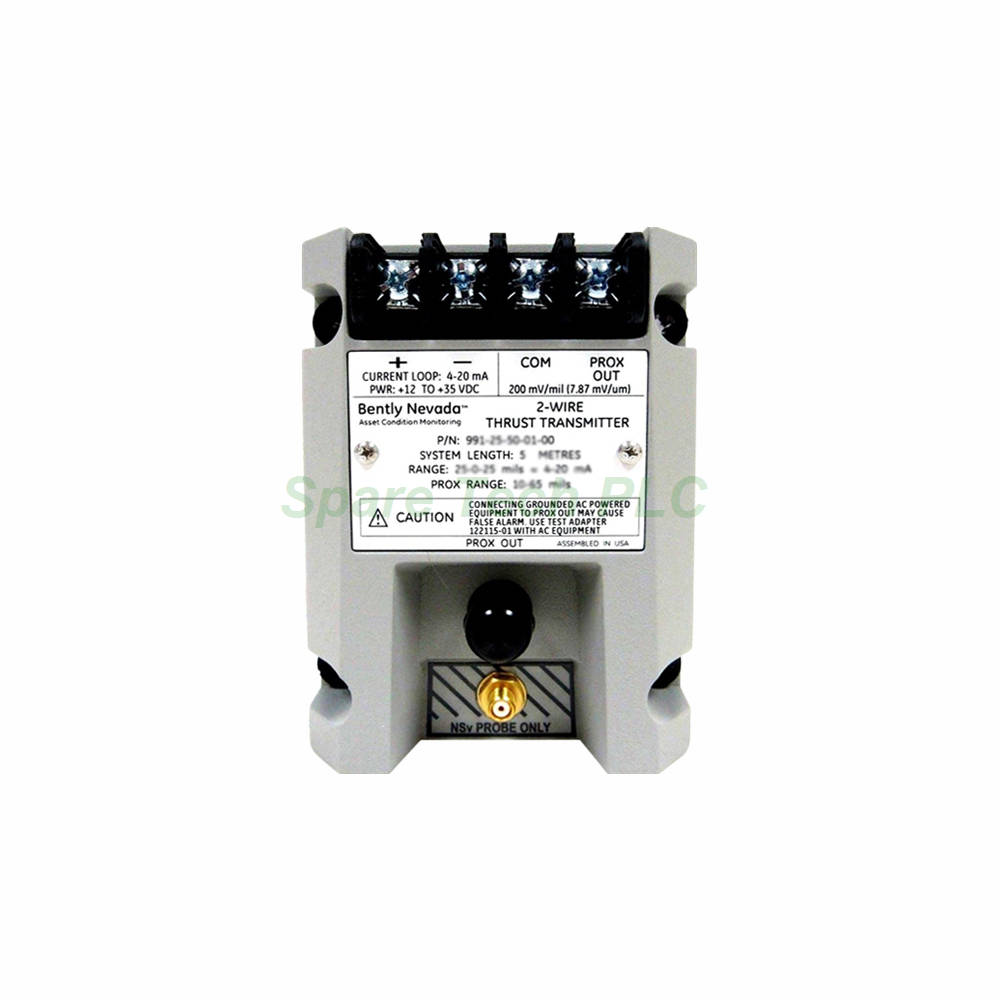

Bently Nevada 991-25-50-03-05 Vibration Transmitter

Buy Bently Nevada 991-25-50-03-05 Thrust Transmitter

Product Introduction

Industrial operators require dependable instrumentation to monitor critical machinery dynamics and safeguard capital assets against sudden failure. Specifically, the Bently Nevada 991-25-50-03-05 transmitter provides exceptional performance by accurately measuring the axial shaft displacement of high-speed rotating equipment. This highly specialized device interfaces with a non-contacting 3300 NSv proximity probe to capture precision real-time mechanical data.

Furthermore, the 991-25-50-03-05 converts raw eddy current signals into a continuous, linear current loop signal for plant networks. This internal conversion process eliminates the need for bulky external monitors, which saves valuable control cabinet space. Therefore, you can connect this rugged assembly directly into a distributed control system (DCS) or a programmable logic controller (PLC).

Advanced Technical Features

First, the internal design of the 991-25-50-03-05 guarantees accurate performance under severe electrical and environmental interference. The field-adjustable housing incorporates non-interacting external zero and span controls, which makes onsite calibration routines remarkably straightforward. Meanwhile, the device maintains a robust loop accuracy within ±1.5% across the full-scale range to ensure dependable machine diagnostics.

Additionally, a built-in safety circuit provides an immediate "Not OK" signal defeat response if a probe problem develops. The transmitter output automatically drops below 3.6 mA within 100 microseconds of an active system fault condition. Consequently, your safety system can instantly isolate sensor issues from genuine mechanical alerts, preventing false machinery trip sequences.

Electrical and Signal Specifications

Regarding power infrastructure, this high-performance instrument accepts an input voltage ranging from +12 Vdc to +35 Vdc. The transmitter operates using a convenient two-wire configuration, which reduces field wiring costs and simplifies overall loop layout design. For example, the maximum allowable loop resistance reaches 1,000 Ohms when the loop operates at a full 35 Vdc supply.

Moreover, the built-in linear range spans from 0.25 mm to 1.65 mm for the raw proximity output test signal. This particular configuration provides a full-scale measurement option of 25-0-25 mils, which is perfectly suited for imperial-based thrust tracking applications. Finally, internal current limiting caps the circuit at 23 mA to protect downstream input modules from unexpected electrical overloads.

Mechanical and Safety Parameters

Hardware longevity represents a major advantage when deploying the 991-25-50-03-05 thrust transmitter in harsh processing zones. Specifically, the compact, low-profile physical enclosure weighs just 0.43 kg (0.9 lbm), minimizing mechanical load on internal panel frames. This specific variant carries comprehensive CSA Division 2, ATEX Zone 0, ATEX Zone 2, and specialized ABS maritime agency approvals.

In addition, the transmitter maintains reliable thermal stability throughout an operational temperature range from -35°C to +85°C. If the device requires storage before deployment, it easily tolerates storage temperatures from -51°C to +100°C without damage. These extreme environmental ratings ensure flawless performance on offshore platforms, marine vessels, and remote chemical processing facilities worldwide.

Installation and Integration Guide

Flexible Mounting Configuration

Mounting the 991-25-50-03-05 is incredibly versatile since the ordering configuration includes standard DIN clips and screws. Installers can choose to snap the device onto a standard 35mm rail or screw-mount it directly onto flat plates. However, you must maintain appropriate physical spacing from hot surfaces to maintain the best heat dissipation during prolonged use.

Probe and Cable Setup

Next, link your 3300 NSv proximity probe and its matching extension lead to the input terminal block. This product configuration features a total system length option of 5.0 meters (16.4 feet) for optimal installation flexibility. For best signal clarity, always run the low-voltage sensor cables away from heavy motor lines or variable frequency drives.

Shipping Logistics

We manage your supply chain requirements efficiently by dispatching all factory orders through high-quality international express delivery partners. Specifically, we ship these critical machinery monitoring products across the globe using dependable networks like Fedex, UPS, and DHL. This premium fulfillment service provides expedited shipping timelines, secure package tracking, and professional handling for your automated parts.

Packaging List

• 1 x Bently Nevada 991-25-50-03-05 Probe Vibration Transmitter

• 1 x Dual-Option Mounting Kit (DIN Clips and Screws)

FAQ

What measurement range does the 991-25-50-03-05 offer?

This model is configured with a full-scale imperial measurement range of 25-0-25 mils for tracking shaft thrust.

What hazardous area certifications does this model carry?

It includes comprehensive approvals for CSA Division 2, ATEX Zone 0, ATEX Zone 2, alongside ABS maritime certification.

Can I connect this transmitter directly to my PLC?

Yes, it converts proximity probe signals into a standard 4-20 mA output that feeds directly into PLC analog cards.

How fast does the "Not OK" fault circuit respond?

The transmitter decreases the current loop output to less than 3.6 mA within 100 microseconds of a detected fault.

What is the required input voltage for this instrument?

The unit operates on an external DC power supply providing anywhere from +12 Vdc up to +35 Vdc.
