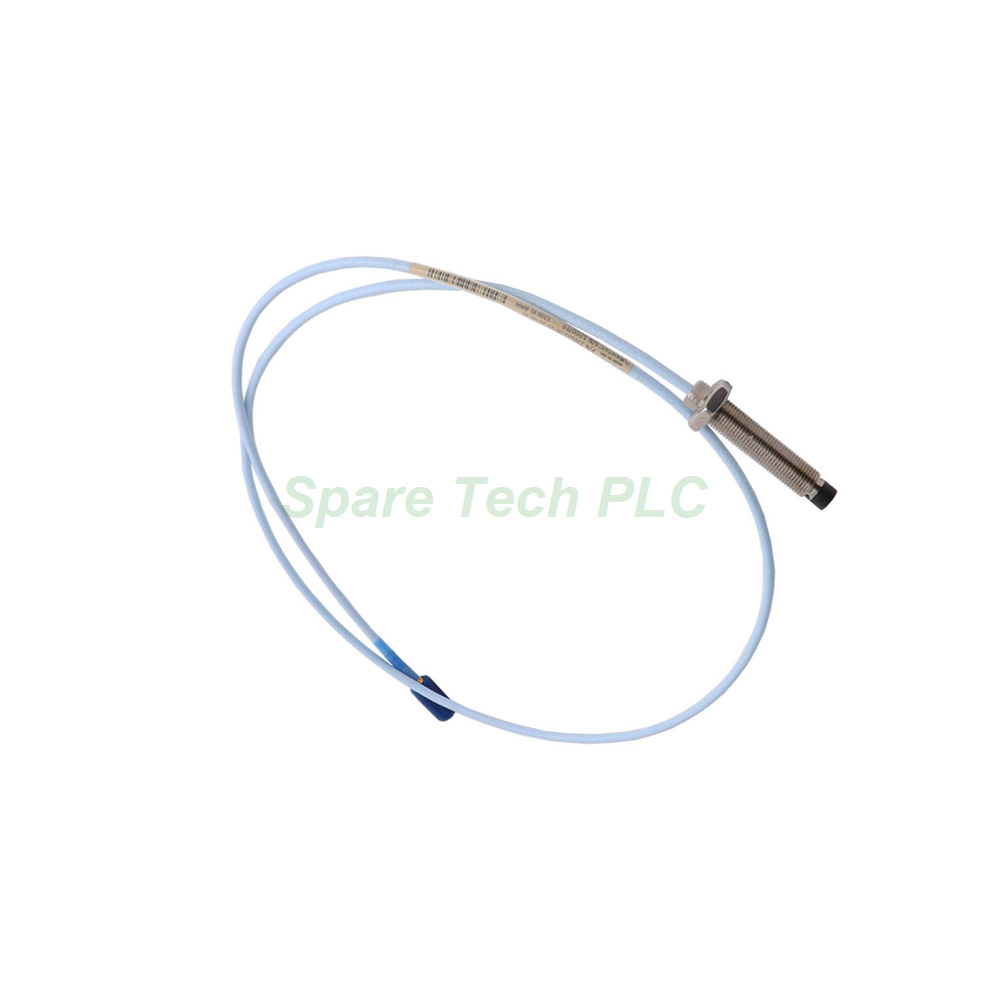

The 330707-00-10-90-12-05 is part of the Bently Nevada 3300 XL series. Specifically, it is an 11 mm proximity probe with a 5/8-18 UNF thread. This device measures shaft vibration and axial position in rotating machinery. Furthermore, it fits steam turbines, centrifugal compressors, and large motors. The model 330707-00-10-90-12-05 ships without armor and carries multiple agency approvals.
First, the probe tip uses Polyphenylene sulfide (PPS). The probe case is AISI 304 stainless steel (SST). Additionally, the cable is a 75 Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable. Its total length reaches 9.0 meters (29.5 feet).
Moreover, the connector option is a Miniature coaxial ClickLoc connector. This model includes a FluidLoc cable but no connector protector. The agency approval option is 05, which means multiple approvals. Meanwhile, the unthreaded length is 0 inches, and the overall case length is 1.0 inch.
The probe dc resistance from the center conductor to the outer conductor is 8.5 ± 1.1 ohms at 9.0 m. Besides, the probe operates with a standard 3300 XL transducer system.
The operating and storage temperature range is -51°C to +177°C (-60°F to +351°F). However, temperatures below -34°C (-30°F) may cause premature failure of the pressure seal. The probe case thread is 5/8-18 UNF. Its maximum thread engagement length is 0.938 inches.
For torque, the maximum rated value is 45.2 N•m (400 in•lb). The recommended torque is 15.2 N•m (133 in•lb). The connector-to-connector torque is finger tight, with a maximum of 0.565 N•m (5 in•lb). In addition, the minimum bend radius is 25.4 mm (1.0 in), with or without SST armor.
The probe pressure seal uses a Viton O-ring. Therefore, it seals differential pressure between the probe tip and case. However, probes are not pressure tested before shipment. For a pressure seal test, contact the custom design department.
Next, mount the probe using the 5/8-18 UNF thread. Apply the recommended torque of 15.2 N•m (133 in•lb). Do not exceed 45.2 N•m (400 in•lb). Meanwhile, keep the minimum bend radius at 25.4 mm (1.0 in). Connect the ClickLoc connector by hand. Finally, tighten it to no more than 0.565 N•m (5 in•lb).
1 x Bently Nevada 330707-00-10-90-12-05 Proximity Probe
1 x FluidLoc Cable (9.0 m)
We ship via Fedex, UPS, and DHL.
Q1: What is the cable length of the 330707-00-10-90-12-05 probe?
A: The cable length is 9.0 meters (29.5 feet).
Q2: Does this probe come with armor?
A: No, the 330707-00-10-90-12-05 comes without armor.
Q3: What agency approval does this model carry?
A: It carries multiple approvals under option 05.
Q4: What connector type does this probe use?
A: It uses a Miniature coaxial ClickLoc connector.
Q5: What is the probe tip material?
A: The tip uses Polyphenylene sulfide (PPS).
| Brand Name | |
| Model No. | 330707-00-10-90-12-05 |
| Product Type | Proximity Probes |
