Bently Nevada 3300 XL 11 mm Probe 330707-00-10-50-12-00

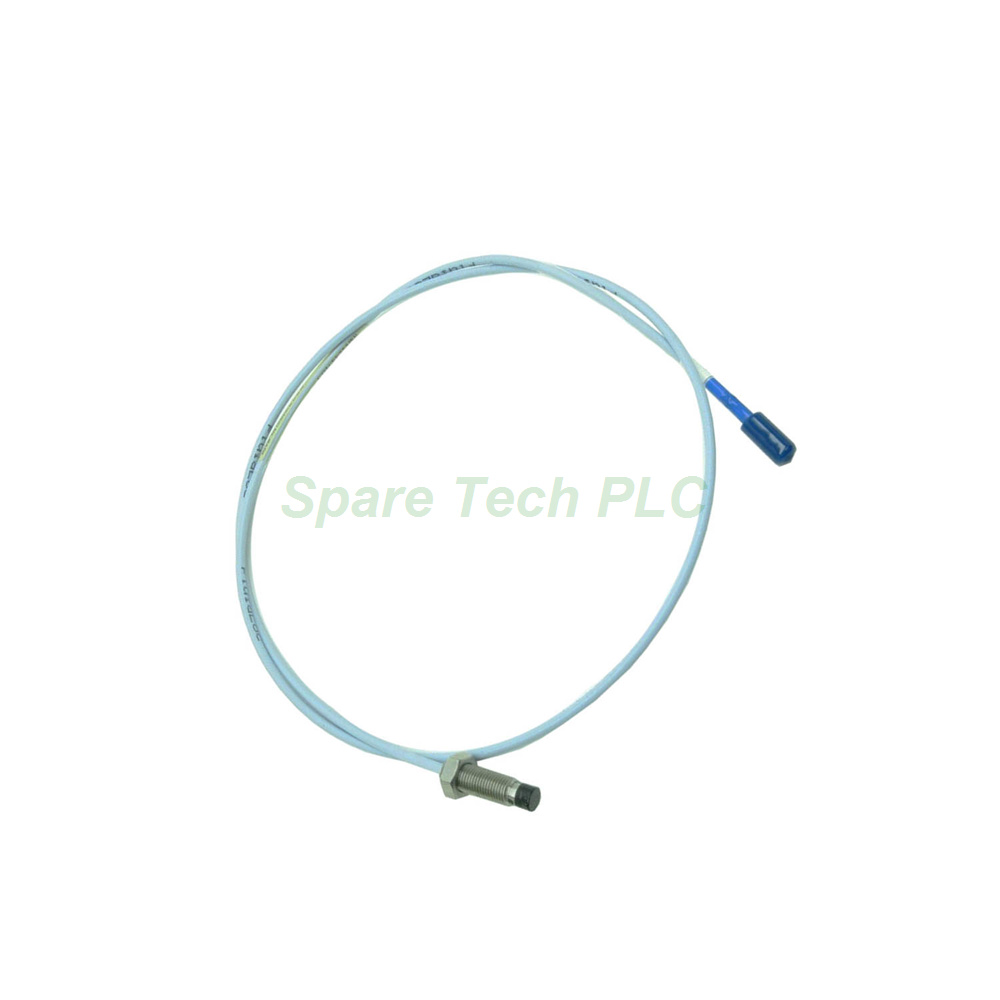

Bently Nevada 330707-00-10-50-12-00 Proximity Probe

Product Introduction

The 330707-00-10-50-12-00 comes from the Bently Nevada 3300 XL series. Specifically, it is an 11 mm proximity probe with a 1/2-20 UNF thread and armor. This probe measures shaft vibration, radial position, and axial displacement in rotating machines. Furthermore, it suits steam turbines, compressors, and large industrial motors. The model 330707-00-10-50-12-00 uses a 5.0 meter cable and works only with a five meter Proximitor Sensor.

Technical Specifications

First, the probe tip is made of Polyphenylene sulfide (PPS). The probe case uses AISI 304 stainless steel (SST). Additionally, the cable is a 75 Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable. Its total length is 5.0 meters (16.4 feet).

Moreover, the connector option is a Miniature coaxial ClickLoc connector. This model includes a FluidLoc cable and armor. The agency approval option is 00, which means no approval is required. Meanwhile, the unthreaded length is 0 inches, and the overall case length is 1.0 inch.

The probe dc resistance from the center conductor to the outer conductor is 7.2 ± 0.8 ohms at 5.0 m. Besides, this probe must pair with the five meter Proximitor Sensor only. Using a different sensor length will cause measurement errors.

Mechanical and Environmental Parameters

The operating and storage temperature range is -51°C to +177°C (-60°F to +351°F). However, temperatures below -34°C (-30°F) may cause premature failure of the pressure seal. The probe case thread is 1/2-20 UNF. Its maximum thread engagement length is 0.750 inches.

For torque, the maximum rated value is 45.2 N•m (400 in•lb). The recommended torque is 15.2 N•m (133 in•lb). The connector-to-connector torque is finger tight, with a maximum of 0.565 N•m (5 in•lb). In addition, the minimum bend radius is 25.4 mm (1.0 in), with or without SST armor.

The probe pressure seal uses a Viton O-ring. Therefore, it seals differential pressure between the probe tip and case. However, probes are not pressure tested before shipment. For a pressure seal test, contact the custom design department.

Installation Guide

Next, mount the probe using the 1/2-20 UNF thread. Apply the recommended torque of 15.2 N•m (133 in•lb). Do not exceed 45.2 N•m (400 in•lb). Meanwhile, keep the minimum bend radius at 25.4 mm (1.0 in). Connect the ClickLoc connector by hand. Finally, tighten it to no more than 0.565 N•m (5 in•lb). Always match this probe with a five meter Proximitor Sensor.

Packaging List

• 1 x Bently Nevada 330707-00-10-50-12-00 Proximity Probe

• 1 x FluidLoc Cable (5.0 m)

• 1 x Armor Sleeve

Shipping

We ship via Fedex, UPS, and DHL.

FAQ

Q1: What is the cable length of the 330707-00-10-50-12-00 probe?
A: The cable length is 5.0 meters (16.4 feet).

Q2: Does this probe include armor?
A: Yes, the 330707-00-10-50-12-00 comes with armor.

Q3: Which Proximitor Sensor should I use with this probe?
A: Use a five meter Proximitor Sensor only.

Q4: What is the probe case thread size?
A: The thread size is 1/2-20 UNF.

Q5: What is the dc resistance of this probe?
A: The resistance is 7.2 ± 0.8 ohms at 5.0 m.
