Bently Nevada 330701-00-25-10-02-00 Proximity Probe
Product Introduction

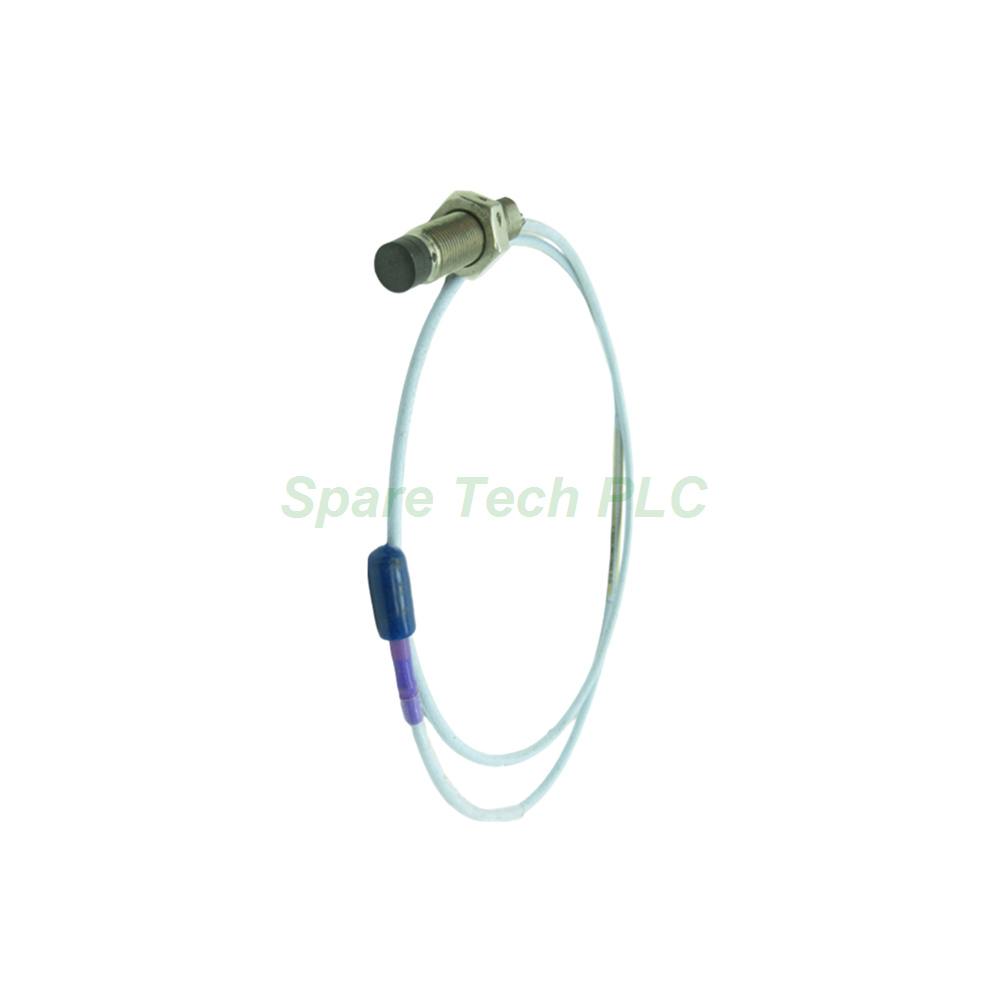

The 330701-00-25-10-02-00 belongs to the Bently Nevada 3300 XL series. Specifically, it is an 11 mm proximity probe with a 1/2-20 UNF thread and no armor. This probe measures shaft vibration, radial position, and axial displacement in rotating machinery. Furthermore, it fits small turbines, pumps, and compressors where space is limited. The model 330701-00-25-10-02-00 uses a short 1.0 meter cable and a longer 2.5 inch case.
Technical Specifications
First, the probe tip uses Polyphenylene sulfide (PPS). The probe case is AISI 304 stainless steel (SST). Additionally, the cable is a 75 Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable. Its total length is 1.0 meter (3.3 feet).
Moreover, the connector option is a Miniature coaxial ClickLoc connector with a standard cable. This model does not include FluidLoc cable or armor. The agency approval option is 00, which means no approval is required. Meanwhile, the unthreaded length is 0.0 inches, and the overall case length is 2.5 inches.
The probe dc resistance from the center conductor to the outer conductor is 5.9 ± 0.5 ohms at 1.0 m. Besides, this short cable length suits installations close to the Proximitor Sensor.
Mechanical and Environmental Parameters
The operating and storage temperature range is -51°C to +177°C (-60°F to +351°F). However, temperatures below -34°C (-30°F) may cause premature failure of the pressure seal. The probe case thread is 1/2-20 UNF. Its maximum thread engagement length is 0.750 inches.
For torque, the maximum rated value is 45.2 N•m (400 in•lb). The recommended torque is 15.2 N•m (133 in•lb). The connector-to-connector torque is finger tight, with a maximum of 0.565 N•m (5 in•lb). In addition, the minimum bend radius is 25.4 mm (1.0 in), with or without SST armor.
The probe pressure seal uses a Viton O-ring. Therefore, it seals differential pressure between the probe tip and case. However, probes are not pressure tested before shipment. For a pressure seal test, contact the custom design department.
Installation Guide
Next, mount the probe using the 1/2-20 UNF thread. Apply the recommended torque of 15.2 N•m (133 in•lb). Do not exceed 45.2 N•m (400 in•lb). Meanwhile, keep the minimum bend radius at 25.4 mm (1.0 in). Connect the ClickLoc connector by hand. Finally, tighten it to no more than 0.565 N•m (5 in•lb). The 2.5 inch case offers extra reach in deep mounting holes.
Packaging List
Shipping
We ship via Fedex, UPS, and DHL.
FAQ
Q1: What is the cable length of the 330701-00-25-10-02-00 probe?
A: The cable length is 1.0 meter (3.3 feet).
Q2: Does this probe include armor?
A: No, the 330701-00-25-10-02-00 comes without armor.
Q3: What is the overall case length of this probe?
A: The overall case length is 2.5 inches.
Q4: What connector type does this probe use?
A: It uses a Miniature coaxial ClickLoc connector with a standard cable.
Q5: What is the dc resistance of this probe?
A: The resistance is 5.9 ± 0.5 ohms at 1.0 m.
