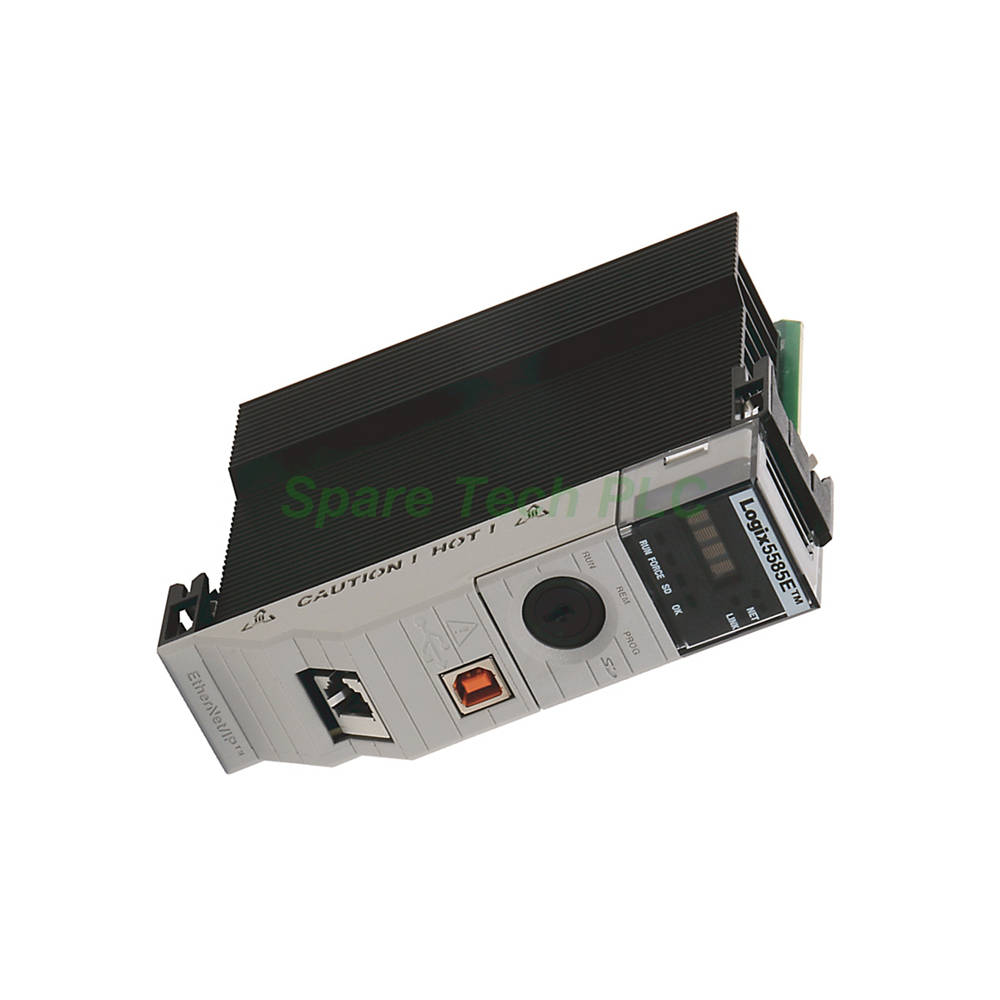

1756-L84E Allen-Bradley ControlLogix 5580 Controller
Product Introduction
The 1756‑L84E from Allen‑Bradley is a premium ControlLogix 5580 controller built for complex, high‑demand manufacturing environments. It offers a substantial 20 MB of user memory, providing ample space for large programs, data tables, and complex logic routines. This controller features an integrated 1 GB Ethernet port that supports 10/100/1000 Mbps link speeds, enabling seamless communication with HMIs, SCADA systems, and other controllers. Additionally, a USB 2.0 port delivers 12 Mbps transfer rates for local programming and diagnostics. The 1756‑L84E supports up to 128,000 discrete I/O and 4,000 analog I/O points, making it ideal for extensive distributed I/O architectures. It eliminates the need for batteries by incorporating a modern energy storage module, reducing maintenance and environmental impact.
Technical Specifications
The Allen‑Bradley 1756‑L84E offers a robust set of technical features tailored for advanced industrial applications.
User Memory: 20 MB for standard control logic, data tables, and application programs.
Non‑volatile Memory: Supports 1784‑SD2 2 GB Secure Digital card for expanded program storage and long‑term data retention.
Communication Ports: One 1 GB Ethernet/IP port (10/100/1000 Mbps) and one USB 2.0 port (12 Mbps).
Maximum Digital I/O: Supports up to 128,000 discrete I/O points for large‑scale systems.
Maximum Analog I/O: Handles up to 4,000 analog I/O channels.
Supported Networks: EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink, and third‑party networks.
Ethernet Nodes: Supports up to 250 nodes on the embedded Ethernet network.
Tasks: Unlimited task capacity via local I/O event triggers.
Programming Software: Requires Studio 5000 Logix Designer Application Version 3.0 or later.
Integrated Motion: Supports integrated motion control over the EtherNet/IP network.
Electrical & Power Parameters
Understanding the power characteristics of the 1756‑L84E ensures reliable integration into your ControlLogix system.
Current Draw (1.2V DC): 5.0 mA – minimal load on the backplane.
Current Draw (5.1V DC): 1.20 mA – exceptionally low consumption for a high‑performance controller.
Power Dissipation: 6.2 W – moderate heat output suitable for standard cabinets.
Thermal Dissipation: 21.2 BTU/hr – easily managed within typical industrial enclosures.
Isolation Voltage: 50 V continuous – provides basic insulation between USB port‑to‑backplane, Ethernet port‑to‑backplane, and USB‑to‑Ethernet. Tested at 1000V AC for 1 minute.
Enclosure Type: Open‑style (none) – designed for installation inside a protected ControlLogix chassis.
Energy Storage: Utilizes a built‑in capacitor‑based energy storage module, eliminating battery replacement.
Mechanical & Environmental Parameters
The 1756‑L84E is engineered to withstand harsh industrial conditions while maintaining exceptional performance.
Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F) – operates without de‑rating.
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) for safe warehousing.
Relative Humidity: 5% to 95% non‑condensing – suitable for humid factory floors.
Shock Resistance: 30 g peak acceleration for 11 ms – meets rigorous industrial standards.
Vibration Resistance: 2 g at 10‑500 Hz – ensures stable operation near heavy machinery.
Weight: Approximately 0.394 kg (0.87 lbs) – lightweight and easy to handle.
Slot Width: Occupies exactly one slot in any 1756 series chassis.
Temperature Code: T4 rating for safe operation in various environments.
Compatible Chassis: Fits all ControlLogix 1756 chassis, including A4, A7, A10, A13, A17, and their K‑versions (Series B and C).
Supported Power Supplies
The 1756‑L84E is compatible with a wide range of standard and redundant power supplies:
Standard Power Supplies: 1756‑PA50, PA72, PA72K, PA75, PA75K, PB50, PB72, PB72K, PB75, PB75K, PH75, PC75.
Redundant Power Supplies: 1756‑PA75R, PA75RK, PB75R, PB75RK, PSCA2, PSCA2K.
Installation Guidelines
Proper installation of the Allen‑Bradley 1756‑L84E ensures optimal performance and system reliability.
Chassis Slot: Insert the controller into any available slot within a ControlLogix 1756 chassis. The module is exactly one slot wide.
Backplane Connection: The controller automatically interfaces with the chassis backplane for high‑speed data exchange with I/O modules and communication adapters.
SD Card: For expanded non‑volatile memory, install a 1784‑SD2 2 GB SD card into the dedicated slot. This provides long‑term program storage and data backup.
Ethernet Wiring: Use shielded CAT5e or CAT6 cables for the 1 GB Ethernet port to maintain signal integrity at gigabit speeds.
USB Access: The front USB 2.0 port allows direct connection to a programming workstation for online editing and firmware updates.
Grounding: Ensure the chassis is properly grounded to prevent electrical noise interference.
Power Supply Selection: Choose a compatible power supply from the list above, verifying that total backplane load does not exceed the supply capacity.
Software Requirement: Use Studio 5000 Logix Designer Version 3.0 or higher for configuration and programming.
Packaging List
Each new 1756‑L84E unit includes the following items in the box:
1 x Allen‑Bradley 1756‑L84E ControlLogix 5580 controller module
1 x Built‑in energy storage module (pre‑installed, non‑removable)
1 x Bus lever assembly for chassis installation
1 x Product documentation quick‑start guide (printed)
1 x Anti‑static protective packaging bag
Note: SD cards (1784‑SD2), communication cables, power supplies, and mounting hardware are sold separately.
