Product Introduction

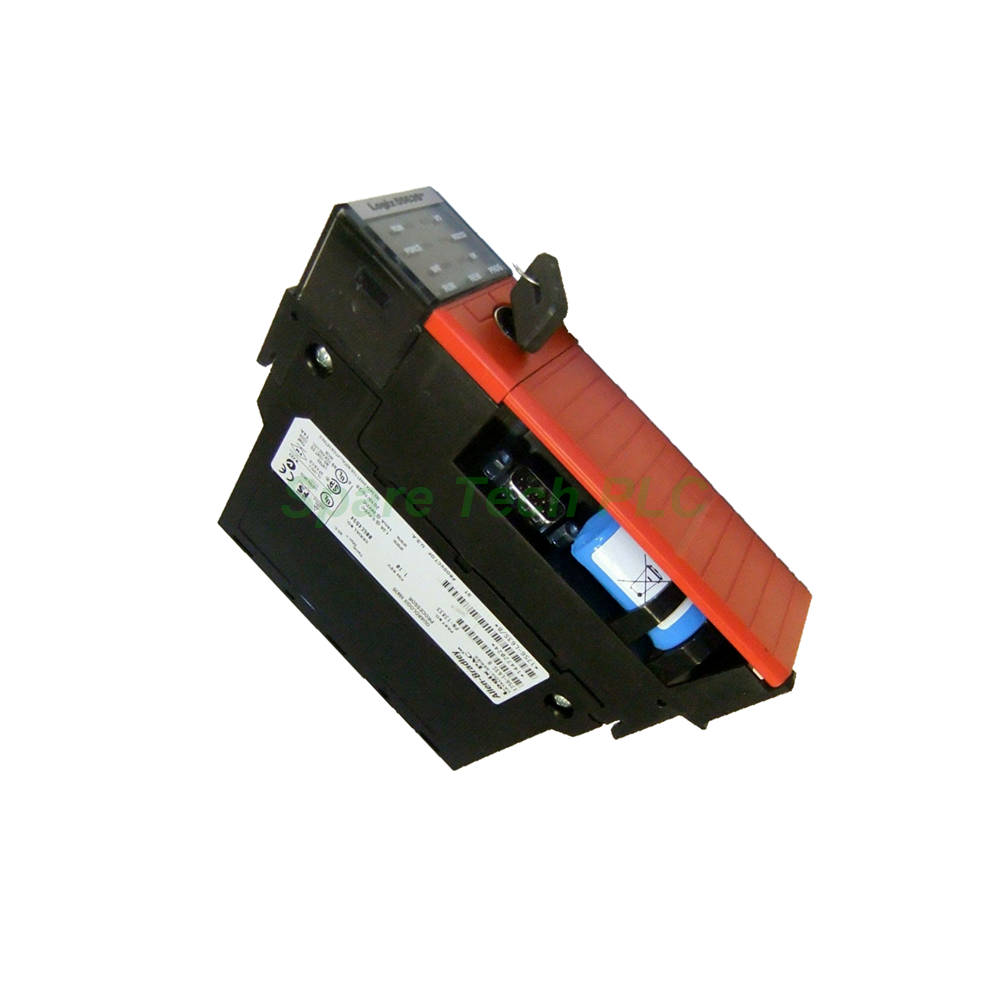

The Allen-Bradley 1756-L62S GuardLogix controller delivers a unique integration of standard and safety control within a single platform. This processor module is specifically designed for applications requiring rigorous functional safety standards, including SIL3 and PLe. It provides a dedicated 4 MB memory for standard operations alongside a separate 1 MB memory reserved for safety tasks. This architecture ensures that safety-critical logic operates independently without interference from standard control processes. Furthermore, the 1756-L62S module is a key component for building a safety system, often paired with a safety partner for redundant functionality. It fits directly into a ControlLogix chassis, providing a physical and electrical connection to other modules.
Technical Specifications & Parameters
This controller is built to manage demanding applications and extensive I/O counts. The 1756-L62S supports a maximum of 128,000 digital I/O points and up to 4,000 analog I/O points, making it suitable for large-scale automation systems. For memory allocation, it provides 478 KB dedicated to I/O handling, ensuring smooth data exchange between the processor and field devices. Its power consumption is rated at 3.5 Watts, with a thermal dissipation of 11.9 BTU per hour, which is a key consideration for cabinet cooling. Additionally, the current draw at 5.1V DC is 1,200 milliamperes, while at 24V DC it draws only 14 milliamperes. The isolation voltage rating is 30 volts continuous, providing a basic level of protection against electrical noise. This GuardLogix processor uses an open-style enclosure, so it must be installed inside a suitable control cabinet for environmental protection.
Mechanical & Environmental Specifications
The physical design of the 1756-L62S follows the standard ControlLogix form factor. It occupies a single slot within the 1756 chassis, allowing for efficient use of backplane space. The front panel includes a convenient keyswitch that allows operators to select between run, program, and remote operating modes. This switch provides a manual method for changing controller states without needing a programming terminal. The module operates reliably within a temperature range of 0 to 60 degrees Celsius and can withstand humidity levels from 5% to 95% non-condensing. Moreover, it is designed to meet stringent shock and vibration standards, making it suitable for industrial environments with mechanical stress.
Installation Guidelines
Installing the 1756-L62S is a straightforward process when following standard ControlLogix practices. First, ensure that the chassis is properly mounted and grounded according to the manufacturer’s recommendations. Next, insert the module into an available slot and press firmly until the locking mechanism engages securely. After insertion, connect any necessary communication cables and verify that the keyswitch is in the desired position. For safety applications, you must pair this processor with a compatible safety partner module to achieve full SIL3 certification. Always power down the system before inserting or removing the controller to prevent damage. Finally, use the programming software to configure the I/O mapping and download your safety and standard logic programs.
Packaging List
Your shipment for the 1756-L62S will include the following items:
One Allen-Bradley 1756-L62S GuardLogix processor module
One front panel keyswitch assembly (pre-installed)
One quick-start installation guide (printed)
One anti-static protective bag for safe handling
All products are carefully packaged to prevent damage during transit. We ship using reliable carriers such as FedEx, UPS, and DHL to ensure fast and traceable delivery worldwide. Please inspect the package immediately upon receipt and report any discrepancies within 24 hours.
Frequently Asked Questions (FAQ)
1. What is the difference between standard memory and safety memory on the 1756-L62S?
The standard memory (4 MB) handles normal control logic, while the safety memory (1 MB) is exclusively dedicated to safety-certified functions. This separation ensures that safety tasks remain protected from faults in standard code.
2. Can the 1756-L62S operate without a safety partner module?
Yes, it can run standard logic independently, but for SIL3 or PLe safety applications, you must pair it with a certified safety partner module to achieve full redundancy and fault detection.
3. What programming software is required for the 1756-L62S?
You will need Rockwell Automation’s Studio 5000 Logix Designer software, which supports both standard and safety programming for this controller series.
4. How do I know if the 1756-L62S is in run or program mode?
The front keyswitch clearly indicates the current operating state. Additionally, the module’s status LEDs provide visual confirmation of the controller’s mode and health.
5. Is the 1756-L62S compatible with older ControlLogix chassis?
Yes, it is designed to fit all standard 1756 series chassis, but always verify firmware compatibility with your existing system components before installation.
