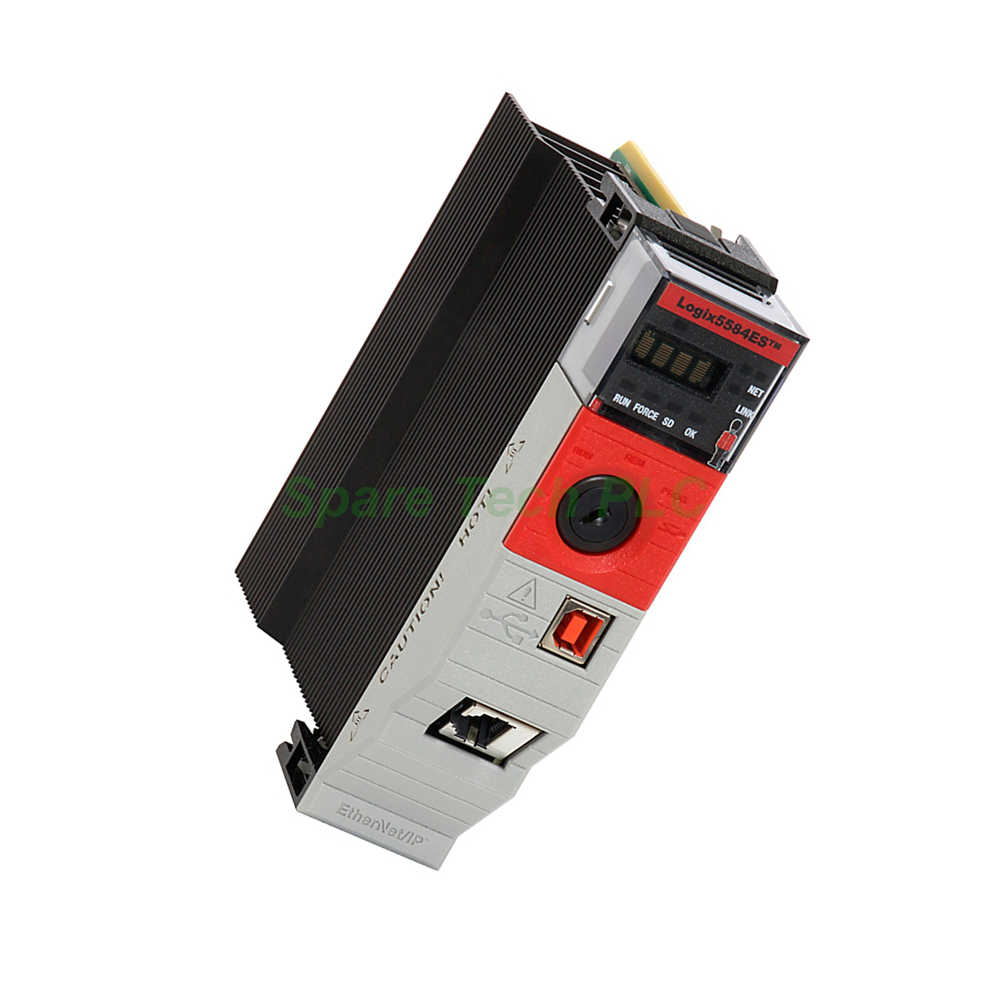

Allen-Bradley 1756-L82ES GuardLogix5580 Safety Controller

1756-L82ES Allen-Bradley GuardLogix 5580 Safety Controller

Product Introduction

The 1756-L82ES from Allen‑Bradley is a high‑performance GuardLogix 5580 controller built for safety‑critical automation environments. It delivers 7.5 MB of total memory, split into 5 MB for user applications and 2.5 MB for safety‑related logic. This processor supports link speeds of 10 Mbps, 100 Mbps, and 1 Gbps, ensuring flexible network integration. With a built‑in USB 2.0 port and a 1 GB Ethernet port, the 1756‑L82ES enables fast programming, diagnostics, and data exchange. It is fully compatible with the Studio 5000 environment, supporting Ladder Diagram, Function Block, and Structured Text languages. This controller is an excellent choice for applications requiring up to SIL 3 safety integrity levels.

Technical Specifications

The Allen‑Bradley 1756‑L82ES offers a robust set of technical features tailored for demanding industrial tasks.

• User Memory: 5 MB standard memory for general control logic and data storage.

• Safety Memory: 2.5 MB dedicated safety memory, physically separated from standard memory for enhanced reliability.

• Ethernet Port: Single 1 GB Ethernet port supports 10/100/1000 Mbps link speeds for high‑speed communication.

• USB Port: USB 2.0 port (12 Mbps) simplifies local programming and firmware updates.

• Device Support: Manages up to 175 EtherNet/IP devices, including I/O modules, drives, and HMIs.

• Task Capacity: Supports 1 safety task and 31 standard tasks concurrently.

• Programs Per Task: Each task can host up to 1000 programs, offering immense flexibility for complex applications.

• Display: 4‑character alphanumeric display for local status indication and fault diagnostics.

• Programming Languages: Fully supports Ladder Diagram, Function Block Diagram, and Structured Text within Studio 5000.

Mechanical & Environmental Parameters

Understanding the physical and environmental limits of the 1756‑L82ES ensures proper deployment.

• Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F) for reliable performance in factory floors.

• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) for safe warehousing.

• Relative Humidity: 5% to 95% non‑condensing, suitable for varying climatic conditions.

• Shock Resistance: 30 g peak acceleration for 11 ms, meeting industrial durability standards.

• Vibration Resistance: 2 g at 10‑500 Hz, ensuring stable operation in high‑vibration environments.

• Enclosure Rating: Open‑type chassis, designed for installation inside a ControlLogix cabinet.

• Power Dissipation: Approximately 5.1 W, contributing to low heat generation.

• Isolation Voltage: 30 V continuous, providing basic electrical isolation between ports.

Installation Guidelines

Proper installation of the Allen‑Bradley 1756‑L82ES is straightforward when following these steps.

• Chassis Slot: Insert the controller into any slot of a 1756‑A series chassis, but slot 0 is recommended for system consistency.

• Backplane Connection: The processor connects automatically to the ControlLogix backplane for high‑speed data exchange with I/O modules.

• Grounding: Ensure the chassis is properly grounded to prevent electrical noise interference.

• Ethernet Wiring: Use shielded CAT5e or CAT6 cables for the Ethernet port to maintain signal integrity at 1 Gbps.

• USB Access: The USB port is located on the front face; keep it accessible for programming laptops.

• Power Supply: Pair the controller with a 1756‑PA or 1756‑PB series power supply; verify that the total backplane load does not exceed the supply capacity.

• Firmware Update: Before commissioning, update the firmware via ControlFlash or Studio 5000 to the latest revision for optimal security and features.

Packaging List

Each new 1756‑L82ES unit ships with the following items included in the box:

• 1 x Allen‑Bradley 1756‑L82ES GuardLogix 5580 processor module

• 1 x Removable terminal block (RTB) for user connections

• 1 x Product documentation quick‑start guide (printed)

• 1 x Bus lever assembly for chassis installation

• 1 x Anti‑static protective packaging bag

Note: Cables, power supplies, and mounting hardware are sold separately.

Shipping & Delivery

All orders for the 1756‑L82ES are dispatched within 24 hours of payment confirmation. We ship globally using FedEx, UPS, or DHL depending on your regional preference. Tracking numbers are provided via email once the package leaves our warehouse. Standard delivery time is 3‑7 business days for most destinations, with expedited options available upon request.

Frequently Asked Questions (FAQ)

1. Can the 1756‑L82ES be used as a standard Logix controller without safety functions?
Yes, the 1756‑L82ES can run standard logic tasks alongside safety tasks. You may simply leave the safety memory unused if your application does not require safety functions.

2. Is the 1756‑L82ES compatible with older 1756 I/O modules?
Absolutely. This controller supports all 1756 series I/O modules through the ControlLogix backplane, regardless of their revision, as long as the firmware matches.

3. What is the maximum number of safety I/O points the 1756‑L82ES can handle?
The Allen‑Bradley 1756‑L82ES supports up to 175 EtherNet/IP nodes. Each node can host multiple safety I/O points; the total is limited by the node count and available safety memory.

4. Can I connect this processor directly to a PC without a network switch?
Yes. You can use a standard Ethernet crossover cable or a direct USB cable to connect your PC to the 1756‑L82ES for programming and diagnostics.

5. Does the 1756‑L82ES support redundancy or hot‑swap?
This model does not support hardware redundancy. However, it can be swapped offline after disconnecting power. For redundant safety systems, consider the 1756‑L8xSP series.
