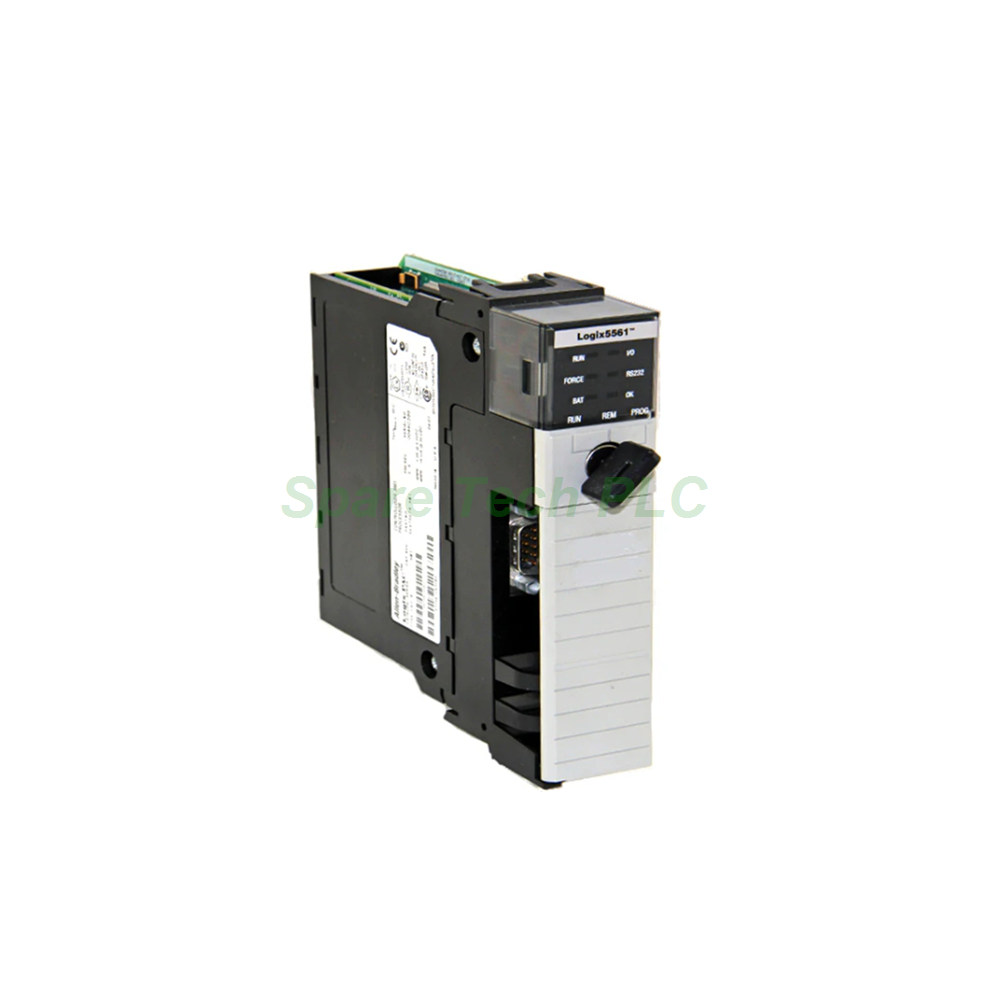

Allen-Bradley 1756-L63 ControlLogix Processor 8MB

Allen-Bradley 1756-L63 ControlLogix Processor

Product Introduction

The 1756-L63 processor module belongs to the renowned ControlLogix family from Allen‑Bradley. This programmable automation controller offers substantial memory resources for demanding logic applications. Its 8 MB user memory accommodates large programs with ease. Additionally, the controller provides 478 KB of dedicated I/O memory for efficient data handling. Engineers often choose this model for its robust performance and versatile communication options. It also supports up to 32 tasks with 100 programs per task, offering flexibility for complex control strategies. Moreover, the built-in RS‑232 serial port simplifies connections to legacy devices. You can further expand its connectivity using optional communication adapters. This processor fits seamlessly into various ControlLogix chassis, ensuring easy integration.

Technical Specifications of the 1756-L63 PAC

The 1756-L63 controller features a powerful Logix5563 engine. It processes logic at a program scan time of just 0.08 milliseconds. This speed ensures rapid response to input changes. Furthermore, the unit supports a maximum of 128,000 discrete I/O points. It also handles up to 4,000 analog I/O points, covering a wide range of field devices. Its built-in USB port offers convenient local access for programming and troubleshooting. For redundant systems, the 1756-L63 provides full support. This feature enhances system availability in critical processes. The controller uses battery-backed RAM to retain programs during power outages. Compatible batteries include the 1756-BA1 and 1756-BATM models. Additionally, you can add non-volatile memory via the 1784-CF64 CompactFlash card. This optional storage provides 128 MB of extra capacity for data logging or firmware updates.

Communication and Networking Capabilities

The Allen-Bradley 1756-L63 includes a single RS‑232 serial port as standard. This port supports multiple protocols, including DF1 full/half-duplex, DH‑485, and ASCII. Moreover, the controller can communicate over Modbus via logic programming. For high-speed networking, you can install various communication adapters. Supported networks include EtherNet/IP, ControlNet, and DeviceNet. Additionally, it offers Data Highway Plus and Remote I/O connectivity. It even supports SynchLink for high-speed data sharing between controllers. This extensive networking ability makes the 1756-L63 suitable for integrated manufacturing systems. It can connect to third-party process and device networks as well. Therefore, you can integrate it into almost any industrial environment.

Memory Architecture and I/O Handling

This controller provides 8 MB of user memory for logic and configuration. Its I/O memory of 478 KB manages real-time data efficiently. The 1756-L63 supports up to 32 simultaneous tasks. Each task can contain up to 100 separate programs. This structure allows for organized and modular programming. The processor handles both discrete and analog signals effectively. It supports a maximum of 128,000 discrete I/O and 4,000 analog I/O. These capacities are ideal for large-scale automation projects. Furthermore, the event task feature responds to all trigger types. This ensures that critical events receive immediate attention. The battery-backed RAM preserves all data safely. For permanent storage, consider using the optional 1784-CF64 memory card.

Mechanical and Environmental Specifications

The 1756-L63 module operates reliably in industrial conditions. Its weight is just 0.71 pounds (0.32 kilograms). It draws 1.2 A at 5.1 V DC and 14 mA at 24 V DC from the backplane. Power dissipation is rated at 3.5 W. Additionally, thermal dissipation is 11.9 BTU/hour. This module operates within a temperature range of 0°C to 60°C. Its non-operating temperature range is -40°C to 85°C. Furthermore, it withstands vibration of 2 g at 10 to 500 Hz. It also tolerates operating shocks of 30 g and non-operating shocks of 50 g. The unit functions properly in humidity levels from 5% to 95%. Its continuous isolation voltage is 30 V, with basic insulation type. It has passed a dielectric test at 720 V DC for 60 seconds. These ratings ensure durability in harsh factory environments.

Installation Guidelines for ControlLogix Chassis

Installing the 1756-L63 requires a compatible ControlLogix chassis. Supported chassis include the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. First, ensure the chassis backplane provides sufficient power. Then, align the module with the slot guides. Slide it firmly into place until the locking mechanism clicks. Next, connect any required communication cables to the RS‑232 port. For redundant systems, use appropriate power supplies like the 1756-PA75R or 1756-PB75R. Standard power supplies such as the 1756-PA50 and 1756-PB72 are also compatible. After physical installation, configure the controller using Logix Designer software. Then, download your application program. Finally, test all I/O connections and communication links. This process ensures a reliable startup.

Packaging and Delivery Information

Each Allen-Bradley 1756-L63 unit ships in a protective anti-static package. The package includes the processor module and a product information sheet. You will also receive the necessary mounting instructions. However, batteries are not included in the standard package. You must order them separately if needed. We ensure secure packaging to prevent damage during transit. All shipments are fully insured for your protection. The package dimensions are compact to minimize shipping costs. Please retain the original packaging for any future returns or storage.

Shipping Options

We ship all orders via reliable couriers. Our standard shipping partners include FedEx, UPS, and DHL. These carriers provide fast and trackable delivery worldwide. We typically dispatch orders within 1-2 business days. Express shipping options are available for urgent requirements. You can choose your preferred carrier at checkout. All shipments include tracking numbers for your convenience. International orders may require additional customs clearance time.

Frequently Asked Questions

1. What is the user memory capacity of the 1756-L63?
The 1756-L63 offers 8 MB of user memory for logic and configuration data. This memory is ample for most medium to large-scale automation applications.

2. Can the 1756-L63 support redundant systems?
Yes, the Allen-Bradley 1756-L63 fully supports controller redundancy. You can implement it using compatible redundant power supplies and chassis.

3. What communication ports are built into this processor?
The 1756-L63 includes one RS‑232 serial port as standard. It also has a USB port for local programming access. Additional network adapters can expand connectivity.

4. What type of battery does the 1756-L63 require?
This controller uses either the 1756-BA1 or 1756-BATM battery. These batteries back up the RAM memory during power loss.

5. Is the 1756-L63 compatible with ControlNet or EtherNet/IP?
Yes, you can install optional communication adapters to support these networks. This makes the 1756-L63 versatile for different industrial networks.
