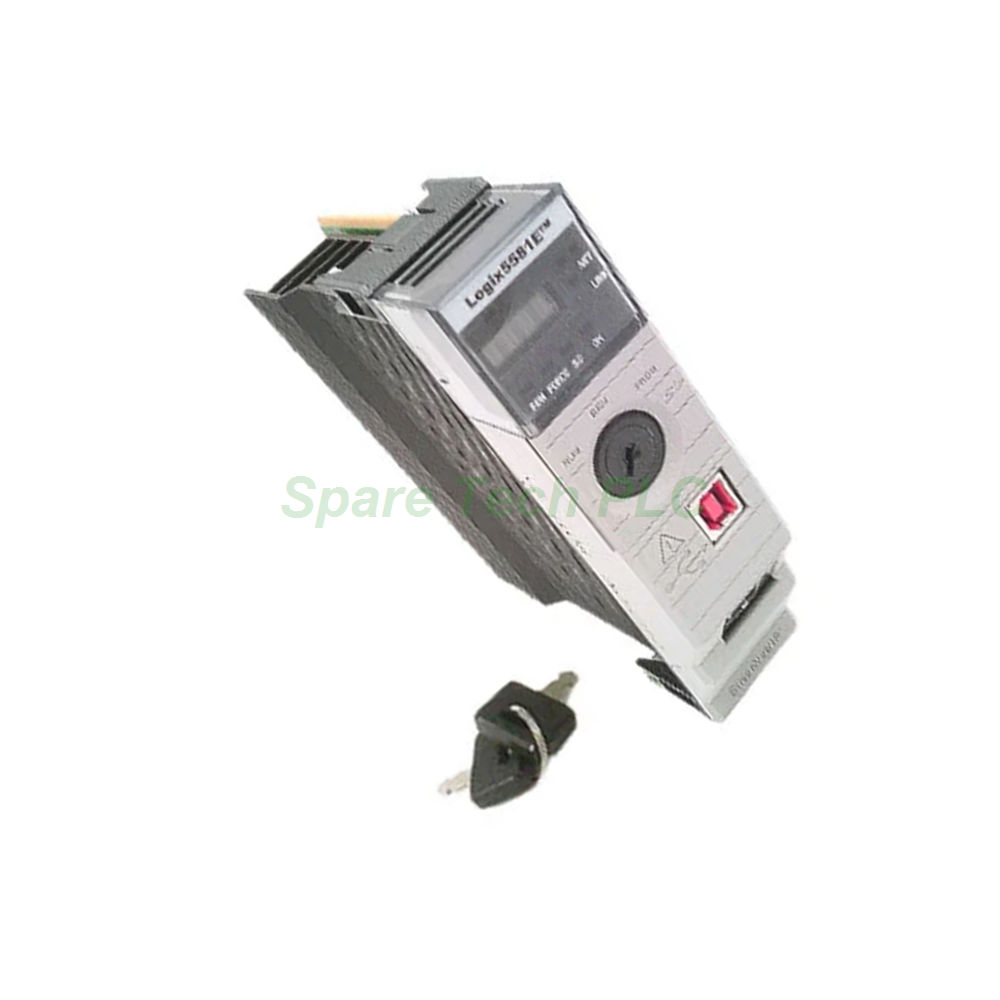

Allen-Bradley 1756-L81E ControlLogix 5580 3MB CPU

Allen-Bradley 1756-L81E ControlLogix 5580 Controller

Product Introduction

The 1756-L81E is a modern entry-level controller from the ControlLogix 5580 family. Allen‑Bradley designed this module for applications requiring reliable control with moderate memory requirements. Its 3 MB of user memory handles standard logic and process control tasks effectively. Moreover, the embedded 1 GB Ethernet port enables high-speed network connectivity. The controller also includes a USB 2.0 port for convenient local programming access. Up to 60 EtherNet/IP devices can connect directly to this processor. Furthermore, it supports 32 tasks with 1,000 programs per task, offering substantial flexibility. The integrated 4-character alphanumeric display provides immediate status feedback. This controller operates within the Studio 5000 engineering environment. Its battery-free design reduces maintenance overhead significantly.

Technical Specifications of the 1756-L81E Controller

The 1756-L81E offers impressive capabilities within its compact footprint. Its 3 MB user memory accommodates medium-sized automation projects. The controller manages up to 128,000 digital I/O points and 4,000 analog I/O points. This capacity suits a wide range of industrial applications. Furthermore, the module supports 32 independent tasks. Each task can contain up to 1,000 programs for structured code organization. The processor's scan time ensures responsive control execution. Power dissipation is rated at 6.2 W, with thermal dissipation of 21.2 BTU/hour. The 1756-L81E draws 1.2 A at 5.1 V DC and 5.0 mA at 1.2 V DC from the backplane. Its isolation voltage is 50 V continuous, ensuring reliable signal separation.

Communication and Networking Features

This controller includes versatile communication options for modern systems. The built-in Ethernet port supports 10/100/1000 Mbps link speeds. Consequently, it integrates seamlessly into high-speed industrial networks. Specifically, the 1756-L81E supports up to 60 EtherNet/IP nodes. This capacity works well for medium-sized distributed control systems. Additionally, the USB 2.0 port operates at 12 Mbps. It provides a direct connection for programming laptops and diagnostic tools. The Allen‑Bradley 1756-L81E eliminates the need for separate communication modules in many cases. Its integrated networking reduces hardware costs and panel space. Furthermore, it serves as an excellent migration platform for legacy PLC‑5 and SLC‑500 systems. This compatibility simplifies system upgrades significantly.

Memory Architecture and Data Storage

The 1756-L81E features a battery-free memory design for reduced maintenance. It uses an energy storage solution instead of traditional batteries. This approach is more environmentally friendly and reliable. The controller ships with a 1784-SD2 Secure Digital card providing 2 GB of non-volatile memory. This SD card stores programs, data logs, and firmware updates securely. Furthermore, the controller's 3 MB user memory is sufficient for most standard applications. Its I/O memory handles real-time data efficiently. The processor supports various data types and structures. It also offers advanced instructions for process control and motion applications. Therefore, the 1756-L81E balances performance with cost-effectiveness.

Mechanical and Environmental Specifications

The 1756-L81E operates reliably in diverse industrial conditions. Its operating temperature ranges from 0°C to 60°C (32°F to 140°F). The module functions within 5% to 95% non-condensing relative humidity. It withstands vibration of 2 g at 10 to 500 Hz. Shock tolerance is rated at 30 g for both operating and non-operating conditions. The controller features an open-style enclosure without built-in protection. It holds a T4 temperature code rating for ATEX, IECEx, and North American hazardous locations. Additionally, the module carries CSA, c-UL-us, and IECEx certifications. Its emission rating meets IEC 61000-6-4 standards. These robust specifications ensure dependable operation in demanding environments.

Chassis Compatibility and Installation Guidelines

Installing the 1756-L81E requires a compatible ControlLogix chassis. Supported models include the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 series. Both Series B and Series C chassis are compatible. The controller occupies a single slot in the chassis. It draws power directly from the backplane. Compatible power supplies include standard models like the 1756-PA50, 1756-PB72, and 1756-PH75. For redundant systems, use redundant power supplies such as the 1756-PA75R or 1756-PB75R. The module mounts vertically in any available slot. Ensure adequate airflow around the unit for proper cooling. Also, verify that the chassis backplane provides sufficient current capacity. Following these guidelines ensures reliable controller operation.

Packaging and Delivery Information

Each Allen‑Bradley 1756-L81E controller arrives in factory-sealed packaging. The package includes the processor module and a 1784-SD2 Secure Digital card. You will also find a quick-reference installation guide. Product information leaflets are included for easy reference. Batteries are not required for this model. The packaging protects against electrostatic discharge and physical impacts. We ensure secure packing for all international shipments. Please retain the original packaging for future transport needs.

Shipping Options

We utilize trusted global carriers for all deliveries. Our shipping partners include FedEx, UPS, and DHL. These providers offer reliable tracking and timely delivery. Orders typically ship within 1-2 business days. Express delivery is available for urgent requirements. Choose your preferred shipping option at checkout. All shipments include tracking numbers for your convenience. International orders may experience customs clearance delays.

Frequently Asked Questions

1. What is the user memory size of the 1756-L81E?
The 1756-L81E provides 3 MB of user memory. This capacity supports medium-scale automation applications effectively.

2. Does the 1756-L81E require a battery for memory backup?
No, the Allen‑Bradley 1756-L81E features a battery-free design. It uses an energy storage solution instead of traditional batteries.

3. How many EtherNet/IP devices can the 1756-L81E support?
This controller supports up to 60 EtherNet/IP devices directly. This suits most medium-sized networked systems.

4. What software is required to program the 1756-L81E?
The 1756-L81E is programmed using the Studio 5000 environment. This software provides comprehensive engineering tools.

5. Is the 1756-L81E suitable for redundant system configurations?
Yes, you can configure the 1756-L81E in redundant systems using compatible redundant power supplies and chassis.
