ABB CI630 AF100 Communication Interface
Product Introduction

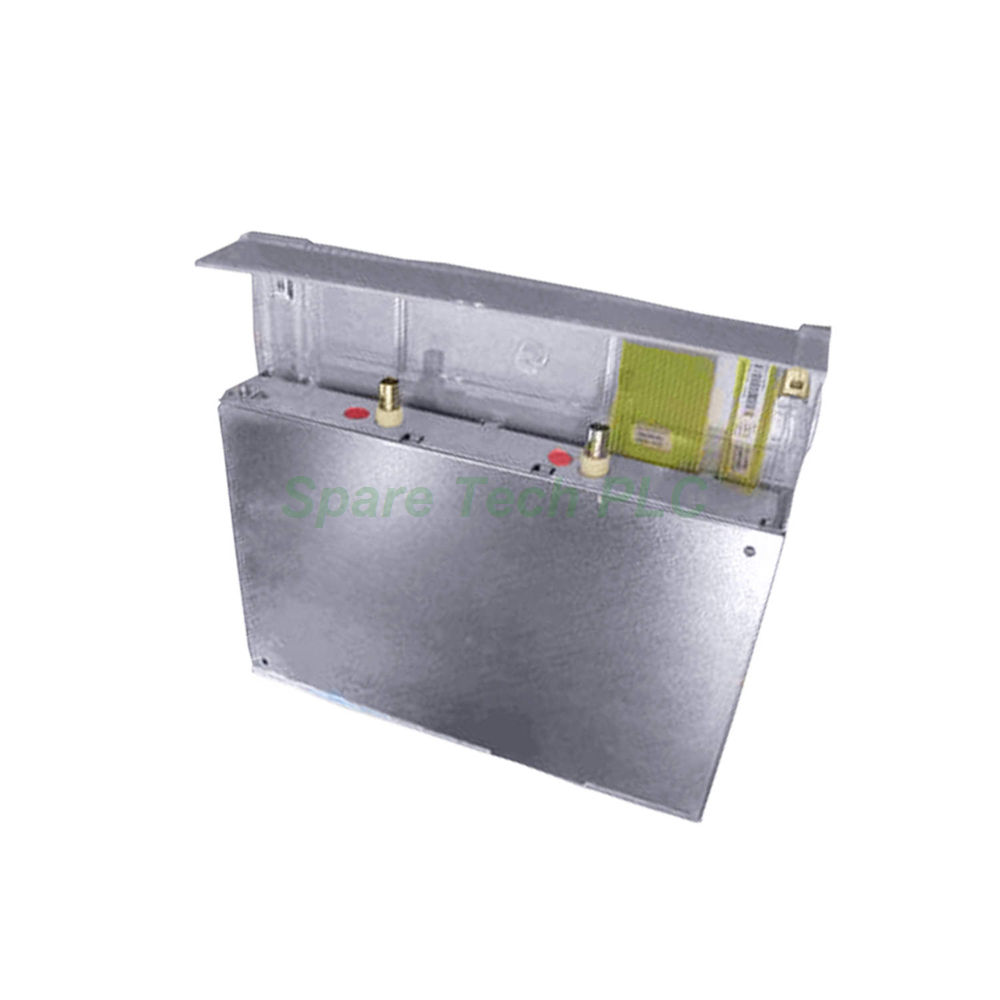

The ABB CI630 (3BSE011000R1) brings stable AF100 network connectivity to your Advant Master system. This communication interface uses coaxial connectors for physical links. It also includes an integrated modem to handle longer distances. Many industrial facilities rely on this module for fieldbus communication.
Therefore, the CI630 is a smart choice when upgrading or repairing legacy automation lines. Additionally, ABB designed this unit to work in harsh environments. It carries a RoHS exemption under EU Directive 2011/65/EU (Article 2(4)(c, e, f, j)). Consequently, you can use it in existing systems without compliance concerns.
Technical Specifications
Communication Protocol: AF100
Connector Type: Coaxial (two ports)
Integrated Modem: Yes, for extended range
Exchange Part Number: EXC3BSE011000R1
Power Dissipation: Typically 5 W
Indicators: LED status for power and communication
The module supports baud rates up to 187.5 kbps. Moreover, it handles redundant communication paths if your system requires high availability. The CI630 communicates with master controllers and remote I/O stations. Specifically, it works inside ABB Advant Master 100 series cabinets.
For signal integrity, the coaxial interface reduces electrical noise. The internal modem also compensates for cable attenuation. As a result, you get stable data transfer even in electrically noisy plant floors.
Mechanical & Environmental Ratings
These ratings make the CI630 suitable for industrial control cabinets. Additionally, WEEE Category 5 applies (Small Equipment <50 cm). The SCIP number is 49171402-7fce-4636-b843-f3fe06cb80f9 (Sweden).
Frequently Asked Questions (FAQ)
1. Is the ABB CI630 compatible with newer ABB systems?
No, the CI630 is designed specifically for Advant Master 100 series. For newer systems like 800xA, please use different communication modules.
2. Can I use this module without the integrated modem?
The modem is built-in and always active. However, you can still use short coaxial cables. The modem does not interfere with normal AF100 signals.
3. Why does this product have a RoHS exemption?
Because it is a spare part for legacy process control systems (2011/65/EU Article 2(4)). ABB confirmed this in declaration 3BSE088609.
4. How do I verify if my CI630 is working correctly?
Check the green "Power" LED and the yellow "Comm" LED. If both are steady, the module is operational. Blinking red indicates a cable fault.
5. What is the exchange part number EXC3BSE011000R1?
That is the remanufactured or exchange version of the same CI630 module. It has identical specifications and is fully tested by ABB.
