3300 NSv Proximity Probe 330902-00-40-05-01-00 Bently Nevada

Product Introduction

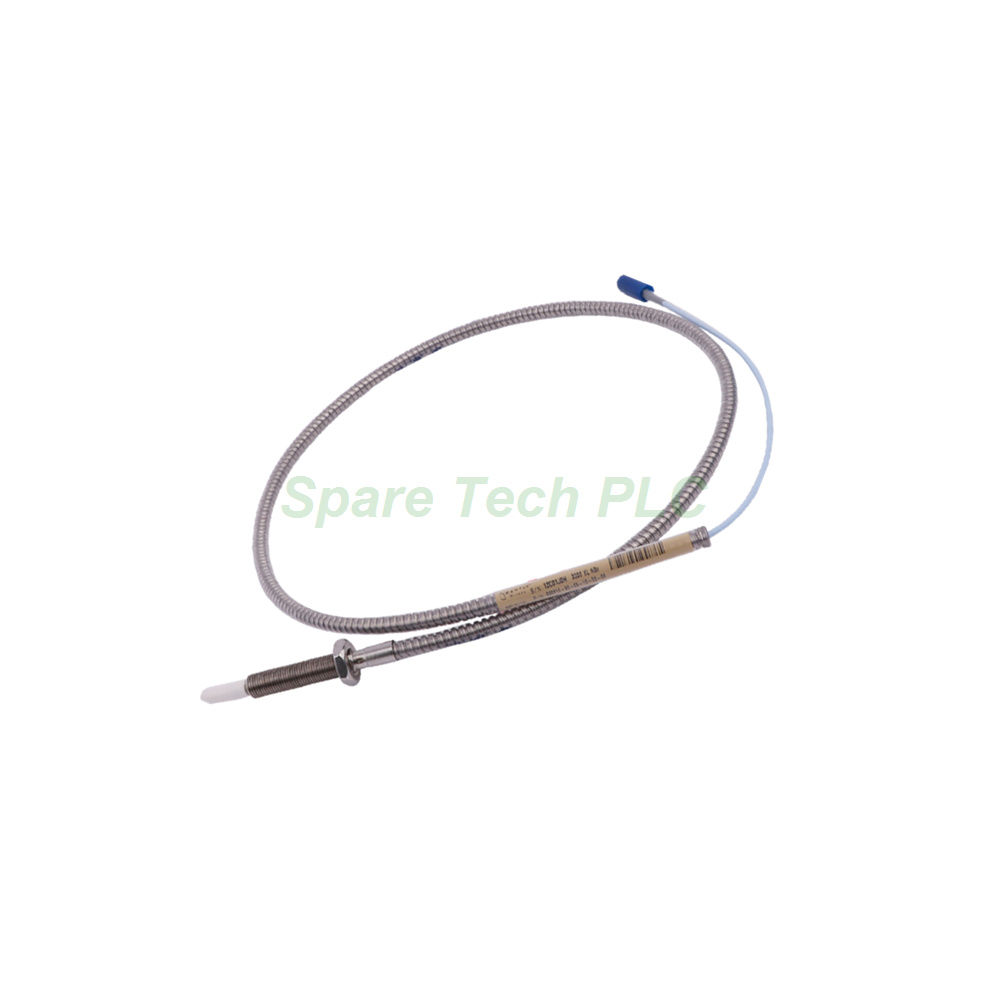

The 330902-00-40-05-01-00 is a high-performance sensor from Bently Nevada's renowned 3300 NSv series. This proximity probe provides precise, non-contact measurement of shaft vibration, displacement, and position in critical rotating machinery. Its robust construction, featuring an AISI304 stainless steel case and a PPS tip, ensures durability and accurate data acquisition. This model comes with a standard 0.5-meter FEP-insulated coaxial cable and a protective ClickLoc connector. Furthermore, its design includes a Viton O-ring to effectively seal differential pressure, making it a suitable choice for various turbine and compressor applications.

Technical Specifications

Probe Configuration
The 330902-00-40-05-01-00 model has a specific set of factory-set options. Its unthreaded length is 0.0 inches (Option 00). The overall case length is 4.0 inches (Option 40). Moreover, the total probe length is 0.5 meters (20 inches, Option 05). This configuration is standard for many common mounting scenarios. The connector option (01) is a miniature coaxial ClickLoc type, complete with a connector protector on a standard cable. Therefore, it offers a secure and reliable connection.

Electrical & Material Properties
This sensor is engineered for accuracy. Specifically, its probe DC resistance between the center and outer conductors is 4.0 ± 0.5 ohms. The probe cable is a specialized 75 Ω coaxial type with fluoroethylene propylene (FEP) insulation. This material choice ensures signal integrity and protects against harsh environmental factors. Consequently, the probe operates effectively within its specified parameters. The tip material is Polyphenylene sulfide (PPS) , which provides excellent resistance to wear and chemicals.

Mechanical & Environmental Limits
The Bently Nevada 3300 NSv probe is built to withstand tough conditions. Its operating and storage temperature range is a wide -52°C to +177°C (-62°F to +351°F) . However, sustained exposure below -34°C (-30°F) can potentially cause premature failure of the pressure seal, so this is a critical factor to consider. The probe case material is AISI304 stainless steel (SST) , offering good corrosion resistance and structural integrity. The total weight of the probe is approximately 14 to 150 g (0.5 to 5.3 oz), making it relatively lightweight for easy installation.

Mechanical Installation and Torque

Thread Engagement
Proper installation is crucial for accurate readings and long sensor life. The probe case features a 1/4-28 UNF thread. The maximum length of thread engagement is 0.375 inches. Therefore, ensure the mounting hole is prepared correctly to achieve this depth without over-torquing. This precise engagement ensures the probe is held securely and at the correct gap setting.

Torque Requirements
When installing the 330902-00-40-05-01-00, it is essential to follow the specified torque guidelines. The recommended torque for the probe case is 5.1 N•m (45 in•lb) . The maximum rated torque is 7.3 N•m (65 in•lb) . Applying too much torque can damage the probe case or the internal components. For this reason, always use a calibrated torque wrench and follow the recommended value. Additionally, ensure the connector-to-connector torque is applied correctly to maintain a solid electrical connection.

Pressure and Environmental Sealing

Pressure Rating
The 3300 NSv probes are engineered to seal differential pressure between the probe tip and case. This is accomplished using a Viton O-ring as the sealing material. It is important to note that while designed for this purpose, the probes are not pressure tested prior to shipment. Users should perform a pressure test upon installation to confirm system integrity, particularly in critical applications where pressure retention is paramount.

Temperature Considerations
As previously mentioned, the operating temperature range is broad, but the low-temperature limitation is a key detail. For a sustained period, exposing the probe to temperatures below -34°C (-30°F) could damage the seal. Therefore, in cold start-ups or outdoor installations in frigid climates, consider pre-heating or using a different probe variant if the environmental conditions are a concern.

Installation Guide

Step 1: Pre-Installation Inspection
Before beginning the installation, carefully inspect the Bently Nevada 330902 probe. First, check the PPS tip for any cracks or damage. Next, examine the cable and the miniature coaxial ClickLoc connector for any signs of wear or fraying. Finally, ensure that all materials and tools, including a torque wrench and cleaning supplies, are ready.

Step 2: Mounting the Probe
Using the correct thread depth (max 0.375 inches), carefully thread the 3300 NSv Proximity Probe into the designated mounting hole. The recommended torque is 5.1 N•m (45 in•lb). For this reason, tighten it smoothly and avoid cross-threading. Once hand-tight, use your torque wrench to achieve the final recommended torque setting.

Step 3: Connecting the Cable
With the probe securely mounted, it's time to connect the cable. The miniature coaxial ClickLoc connector provides a positive lock. Simply align the connector and push it into place until you hear a "click." This confirms a secure connection. The connector protector will then help safeguard this connection from dirt and moisture.

Step 4: Post-Installation Check
After the mechanical installation is complete, perform a final inspection. Verify that the cable is routed with a service loop and is not under tension. Additionally, check that the cable is not kinked or touching any hot or moving parts. Finally, you can proceed with the system power-up and gap voltage verification.

Packaging List

The standard shipment for this product includes:

1. 330902-00-40-05-01-00 Bently Nevada 3300 NSv Proximity Probe (1 Unit)

2. Connector Protector (Pre-installed)

3. Installation Instructions (Quick Start Guide)

Note: The shipment does not include any additional mounting hardware, cables, or accessories beyond what is listed above.

Frequently Asked Questions (FAQ)

Q1: What is the primary application for the 330902-00-40-05-01-00 probe?
A1: This 3300 NSv model is primarily used for non-contact vibration and displacement measurement on rotating machinery. Specifically, it monitors shaft movement in turbines, compressors, and pumps to provide critical data for predictive maintenance.

Q2: What are the torque requirements for installing this 330902 probe?
A2: For the 330902-00-40-05-01-00, the recommended installation torque for the probe case is 5.1 N•m (45 in•lb) . The maximum rated torque is 7.3 N•m (65 in•lb) . Always use a calibrated torque wrench to avoid damaging the sensor.

Q3: Can this 3300 NSv probe be used in a high-pressure environment?
A3: The probe is designed to seal differential pressure using a Viton O-ring. However, it is not pressure tested prior to shipment. It is recommended to perform a pressure test after installation to verify the seal, especially in critical applications.

Q4: What is the total cable length for this specific model?
A4: The total length option for this model (Option 05) is 0.5 meters, which is equivalent to 20 inches. This is the length of the coaxial, FEP-insulated cable from the probe tip to the connector.

Q5: What is the temperature limitation for the Bently Nevada 330902?
A5: The operating and storage range is -52°C to +177°C. However, exposing the probe to temperatures below -34°C (-30°F) for a sustained period may cause premature failure of the pressure seal.
