1784-U2CN Allen-Bradley USB to ControlNet Programming Cable

1784-U2CN Allen-Bradley USB to ControlNet Programming Cable

Product Introduction

The 1784-U2CN is a specialized programming cable manufactured by Allen-Bradley/Rockwell Automation. Its primary function is to bridge the gap between a modern computer and a legacy ControlNet network. Using a standard USB port, this cable allows you to connect a laptop or desktop PC directly to ControlNet devices. This connection is essential for programming, configuring, and monitoring industrial automation units. Furthermore, the cable includes a built-in node address switch for flexible network setup.

Technical Specifications

Electrical Characteristics

The 1784-U2CN operates with a supply voltage of 5.25 Volts DC. It draws a current of 225 mA from the USB port. Additionally, the ControlNet side operates with a current of 70 mA at 24 Volts. The isolation voltage is rated at 30 Volts continuous, providing basic insulation. These electrical specifications ensure stable and safe operation.

Environmental Ratings and Compliance

This cable is rated for an operating temperature range of 0 to 55 degrees Celsius. It can be used at altitudes up to 2000 meters without derating. The enclosure has an IP 30 protection rating. Therefore, it is protected against solid objects larger than 2.5 mm but is not water-resistant. The 1784-U2CN complies with several international standards, including CE, cULus, RCM, KCC, and CI. Consequently, it meets global regulatory requirements.

Node Address Switch and LED Indicators

A distinctive feature of the 1784-U2CN is its integrated node address switch, located in the center of the cable. This switch allows you to change the network node address without additional hardware. Three LED indicators provide clear status information:

• USB Status (Green): Solid when configured but idle; blinking when active traffic is present.

• Module Status: Indicates the operational state of the cable itself.

• ControlNet Network Status: Shows the health and activity of the ControlNet connection.

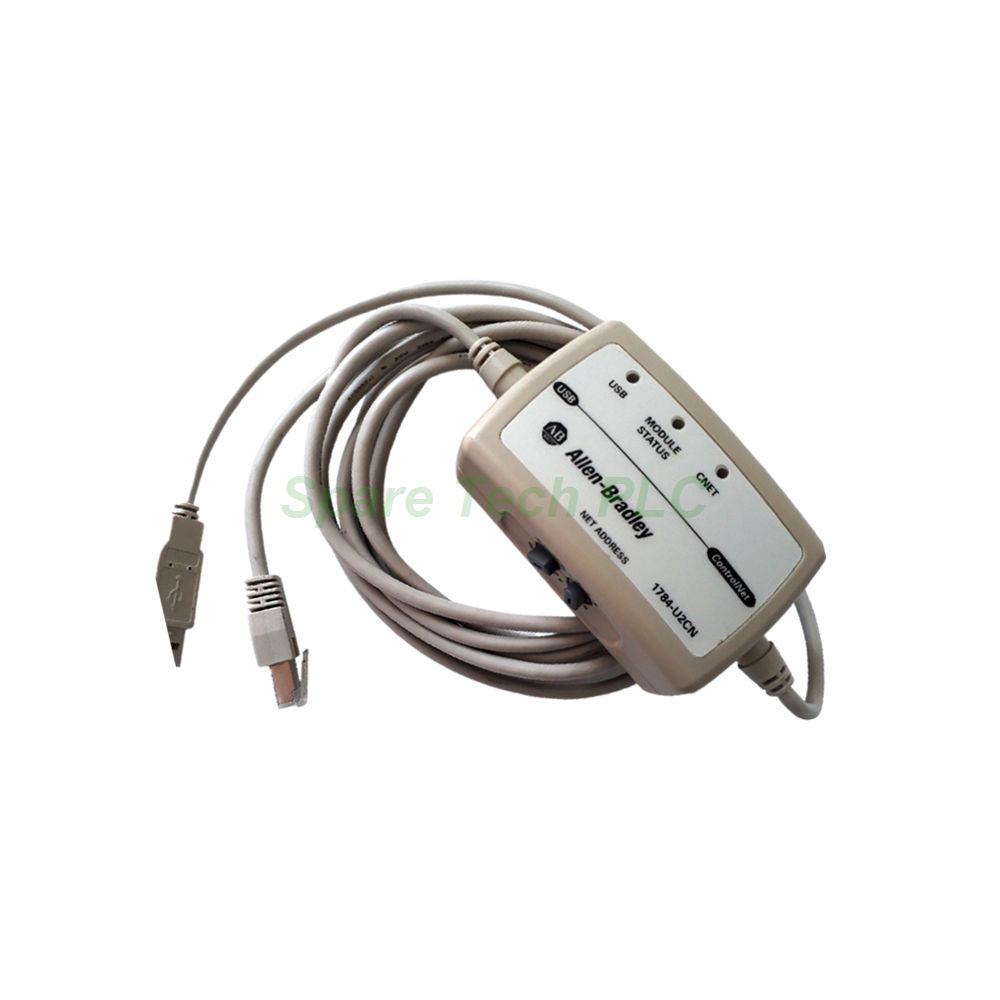

Physical Design and Cable Composition

The 1784-U2CN consists of three main components: a USB connector on one end, a ControlNet connector on the other, and the node address switch in the middle. This design offers convenience and ease of use. The total cable length is optimized for industrial programming applications.

Installation and Usage Guidelines

Connecting to Your System

First, ensure your computer is powered on and running a compatible operating system. Then, plug the USB end of the 1784-U2CN into an available USB port. Next, connect the ControlNet end to your device or network tap. The operating system should recognize the cable automatically.

Setting the Node Address

Use the central switch to set the desired ControlNet node address before establishing a connection. Proper addressing is crucial for avoiding network conflicts. After setting the address, power cycle the connected device to ensure the new address is recognized.

LED Status Monitoring

Observe the LED indicators during operation. A solid green USB LED indicates proper configuration. Blinking LEDs indicate active communication. If the LEDs do not light up, check the USB connection and driver installation.

ESD Precautions

The 1784-U2CN is sensitive to electrostatic discharge (ESD). Therefore, handle the cable with care. Always ground yourself before touching the connectors. Failure to do so could cause internal damage to the cable components.

Compatibility and Application

Supported Controllers and Networks

The 1784-U2CN is primarily used with ControlNet networks. It is compatible with systems such as PLC-5 and other ControlNet-enabled devices. This cable is ideal for field technicians and engineers needing a reliable programming connection.

Software and Driver Support

This cable typically requires specific drivers to function correctly with Rockwell Automation software, such as RSLinx. We recommend installing the latest drivers from the Rockwell Automation support website. Proper driver installation ensures stable communication.

Packaging List

• 1784-U2CN USB to ControlNet Programming Cable (1 unit)

• Node address switch (integrated into the cable)

• LED status indicators (built-in)

• Packaging excludes software CDs, certificates, and warranty documents

Shipping and Delivery

All orders are processed quickly and shipped securely. We partner with FedEx, UPS, and DHL for global deliveries. The 1784-U2CN is packed in anti-static packaging to protect against ESD. Additionally, we provide tracking numbers for all shipments, allowing you to monitor your order in real-time.

Frequently Asked Questions (FAQ)

1. What is the primary use of the 1784-U2CN cable?
The 1784-U2CN connects a computer to a ControlNet network via USB. It is used for programming and configuring industrial automation devices, such as PLC-5 processors.

2. How do I set the node address on the 1784-U2CN?
Use the central node address switch on the cable. Rotate or slide it to the desired address. Remember to cycle power on the connected device to apply the new setting.

3. What do the LED indicators on the 1784-U2CN tell me?
The USB LED indicates host connection status. The module LED shows the cable's internal state. The ControlNet LED reports network activity. Blinking normally means active communication.

4. Is the 1784-U2CN compatible with Windows 10?
It can work with Windows 10 if the correct legacy drivers are installed. Please check Rockwell Automation's official website for the latest driver support.

5. What precautions should I take when using this cable?
The 1784-U2CN is ESD-sensitive. Always wear a grounded wrist strap or touch a grounded metal object before handling the cable connectors to prevent damage.
