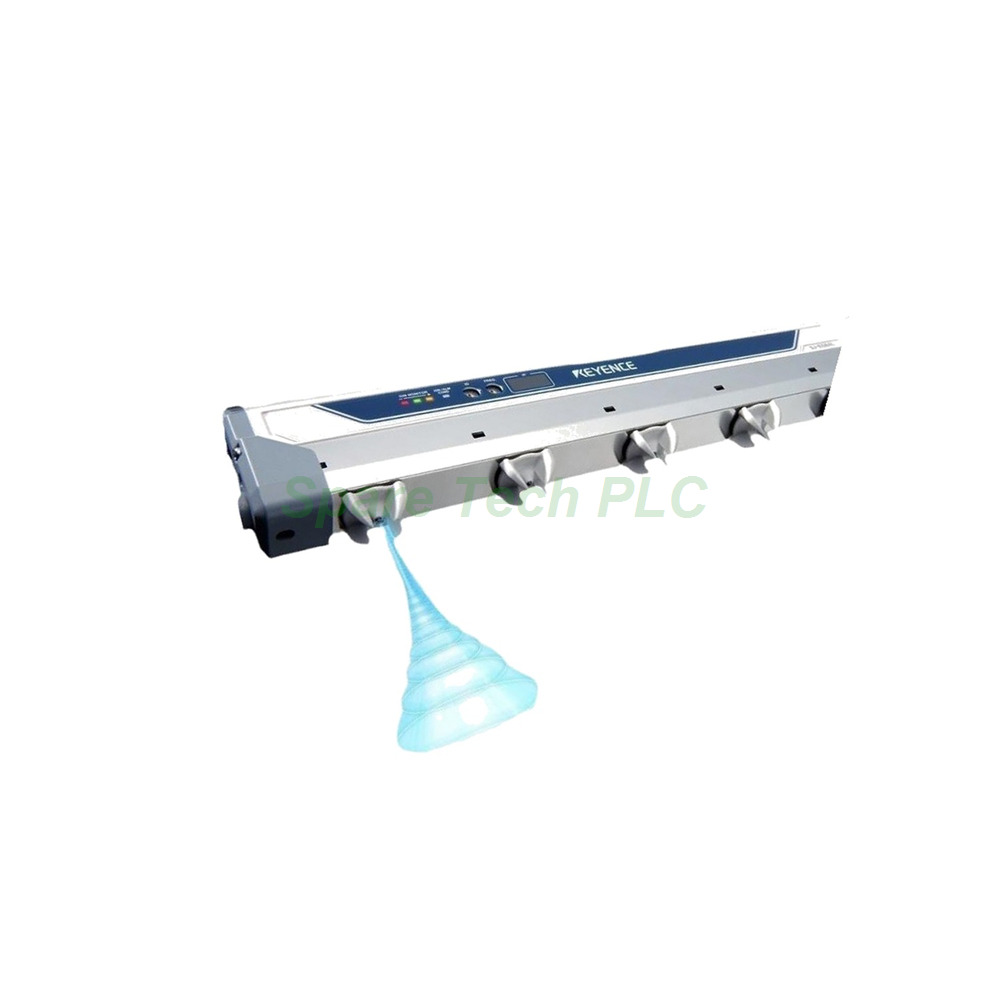

Keyence SJ-E108L Bar-Type Static Eliminator
Product Introduction
The SJ-E108L extends the Keyence SJ-E series with a longer bar for wide production lines. This low-flow model pairs a shockless resistive coupling structure with a pulse AC method running at ±8000 V. Furthermore, the Hi-Power I.C.C. ion balance control system keeps performance stable as ambient conditions shift.
Specifically, the unit carries 17 tungsten electrode probes along a 1040 mm total body length. Meanwhile, the effective static elimination range reaches 1160 mm when the bar sits 50 mm from the target. The Keyence SJ-E108L therefore fits wide web, film, and sheet handling lines that need broad coverage with modest compressed air use.
Technical Specifications
The SJ-E108L runs on a 24 to 36 VDC ±10% supply. Current draw is 700 mA at 24 V and falls to 500 mA at 36 V. Ion balance is rated at ±30 V when measured at 300 mm or more with 0.2 MPa air pressure. Additionally, the recommended air supply pressure is 0.2 MPa, while the unit accepts 0.1 to 0.5 MPa.
Control inputs include a static elimination stop input that works with NPN open collector or dry contact signals. Outputs deliver ion level warning, condition warning, and alarm signals through NPN open collector circuits rated at 100 mA maximum (40 VDC or less). The air connection port uses an Rc 1/8 thread, and communication runs through remote control communication.
Mechanical and Environmental Parameters
The SJ-E108L body uses ABS, PBT, PP, LCP, PPS, SPS, and SUS materials. Electrode probes are tungsten for long service life. The unit weighs 1,270 g. Operating temperature spans 0 to +40 °C, and relative humidity is tolerated from 35 to 85% RH without condensation. The overvoltage category is I, and the pollution degree is 2.
Installation Guidelines
First, mount the Keyence SJ-E108L between 50 and 2,000 mm from the target surface. Best balance performance occurs at 300 mm or greater. Next, connect the air supply to the Rc 1/8 port and regulate pressure to the recommended 0.2 MPa.
Furthermore, wire the 24 to 36 VDC power supply according to the polarity markings. Connect control input and output signals to the correct NPN open collector or contact interfaces. Finally, confirm that the installation environment stays within the specified temperature and humidity limits.
Packaging List
1 × Keyence SJ-E108L Static Eliminator Bar
1 × Standard Mounting Bracket Set
1 × Instruction Manual (English)
FAQ
Q1: What is the effective static elimination length of the SJ-E108L?
A: The effective length is 1160 mm when the installation distance is set to 50 mm.
Q2: How many electrodes does this model have?
A: The Keyence SJ-E108L contains 17 tungsten electrode probes along its 1040 mm body.
Q3: What air pressure does the SJ-E108L require?
A: The recommended supply pressure is 0.2 MPa, and the accepted range is 0.1 to 0.5 MPa.
Q4: What is the power requirement for the SJ-E108L?
A: It operates on 24 to 36 VDC ±10% and draws 700 mA at 24 V or 500 mA at 36 V.
