Keyence SJ-E060L Bar-Type Static Eliminator

Keyence SJ-E060L Bar-Type Static Eliminator

Product Introduction

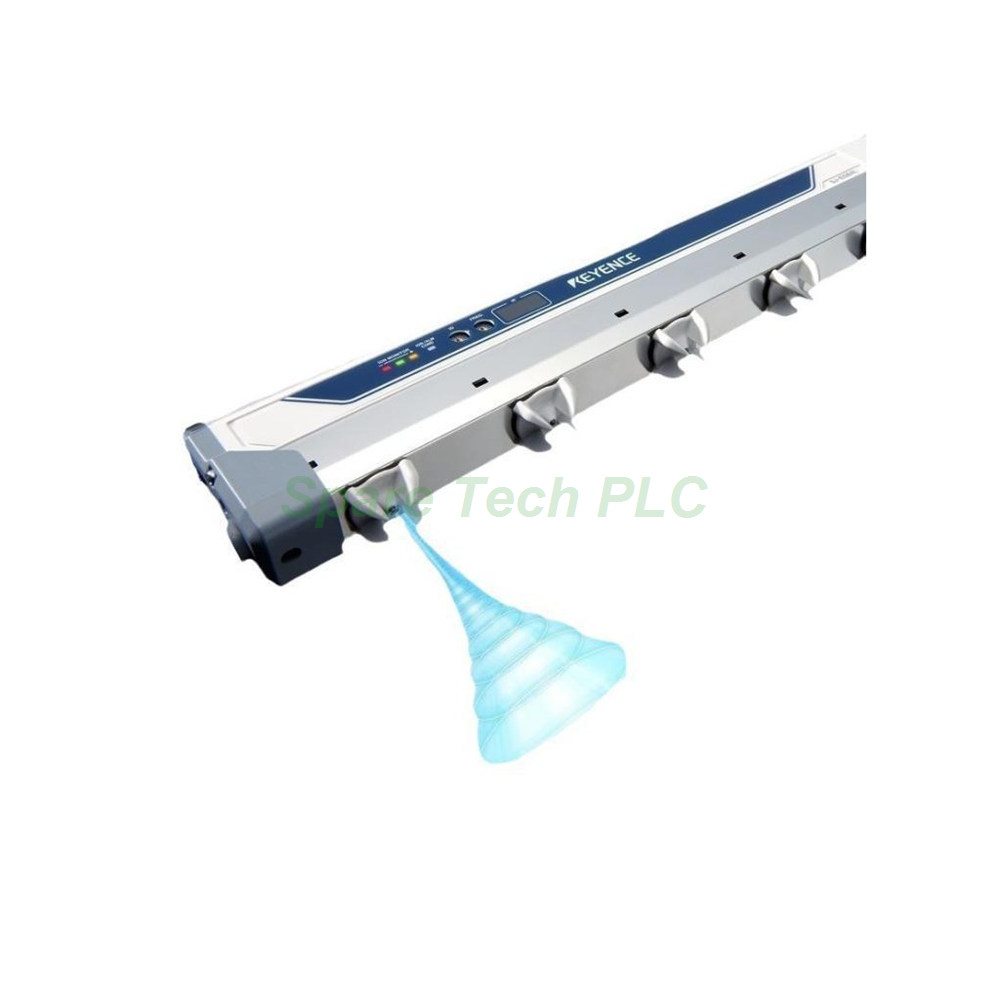

The SJ-E060L belongs to the Keyence SJ-E series of bar-type static eliminators. Specifically, this unit is the small flow model, which cuts compressed air use while keeping strong static elimination. Corona discharge generates ions, and a pulse AC method applies ±8000 V to the electrode probes. Therefore, the bar neutralizes both positive and negative charge quickly. Meanwhile, the Hi-Power I.C.C. method continuously corrects ion balance. This ionizer suits wide film converting, packaging, printing, and electronics assembly lines where dust attraction causes defects.

Technical Specifications

The SJ-E060L uses a shockless resistive coupling structure for safe operation. Its pulse AC method applies ±8000 V, and ion balance stays within ±30 V when measured at 300 mm or more with 0.2 MPa air pressure. Installation distance ranges from 50 to 2000 mm, which gives layout flexibility. Additionally, nine tungsten electrodes sit along a 560 mm total length, and the effective static elimination range at 50 mm reaches 680 mm. Supply voltage is 24 to 36 VDC ±10%. Current consumption is 700 mA at 24 V and 500 mA at 36 V. Outputs include NPN open collector signals for ion level warning, condition warning, and alarm. Moreover, a static elimination stop input accepts NPN open collector or contact point signals. The air port is Rc 1/8, and supply pressure runs 0.1 to 0.5 MPa with 0.2 MPa recommended.

Mechanical and Environmental Parameters

The unit weighs 0.85 kg, and the body uses ABS, PBT, PP, LCP, PPS, SPS, and SUS materials. Electrode probes are tungsten for wear resistance. Operating temperature ranges from 0 to +40 °C, and relative humidity must stay between 35 and 85 % RH without condensation. Overvoltage category is I, and pollution degree is 2. Furthermore, the shockless resistive coupling design limits current through the probes, so operators can work near the bar safely. Compared with the shorter SJ-E036L, this model covers wider webs without adding a second bar.

Installation Guide

First, mount the bar parallel to the charged surface at a distance between 50 and 2000 mm. Next, connect the 24 to 36 VDC supply and confirm the polarity is correct. Then, wire the NPN open collector outputs to your controller for ion level warning, condition warning, and alarm. Connect the static elimination stop input if your line needs remote shutdown. After that, attach the air line to the Rc 1/8 port and set pressure near 0.2 MPa. Finally, power the unit and verify ion balance with a charged plate monitor before production starts.

Packaging List

• SJ-E060L static eliminator unit × 1

• Instruction manual × 1

• Mounting bracket set × 1

FAQ

Q1: What is the effective static elimination range?
At a 50 mm installation distance, the SJ-E060L covers a 680 mm effective length. The total bar length is 560 mm. Adjust mounting height to match your web or part width.

Q2: How does this model differ from the SJ-E036L?
The SJ-E060L carries nine electrodes and a 680 mm effective range. The SJ-E036L uses five electrodes and covers 440 mm. Choose based on your web width.

Q3: What does the Hi-Power I.C.C. method do?
Hi-Power I.C.C. continuously monitors and corrects ion balance. Consequently, the bar holds balance within ±30 V even as electrodes wear. This reduces drift-related defects over long runs.

Q4: Can I stop static elimination remotely?
Yes. The SJ-E060L accepts a static elimination stop input via NPN open collector or contact point. This supports interlocking with machine safety or maintenance sequences.
