Yaskawa SGDM-08ADA Servo Drive - Torque, Speed, Position Control

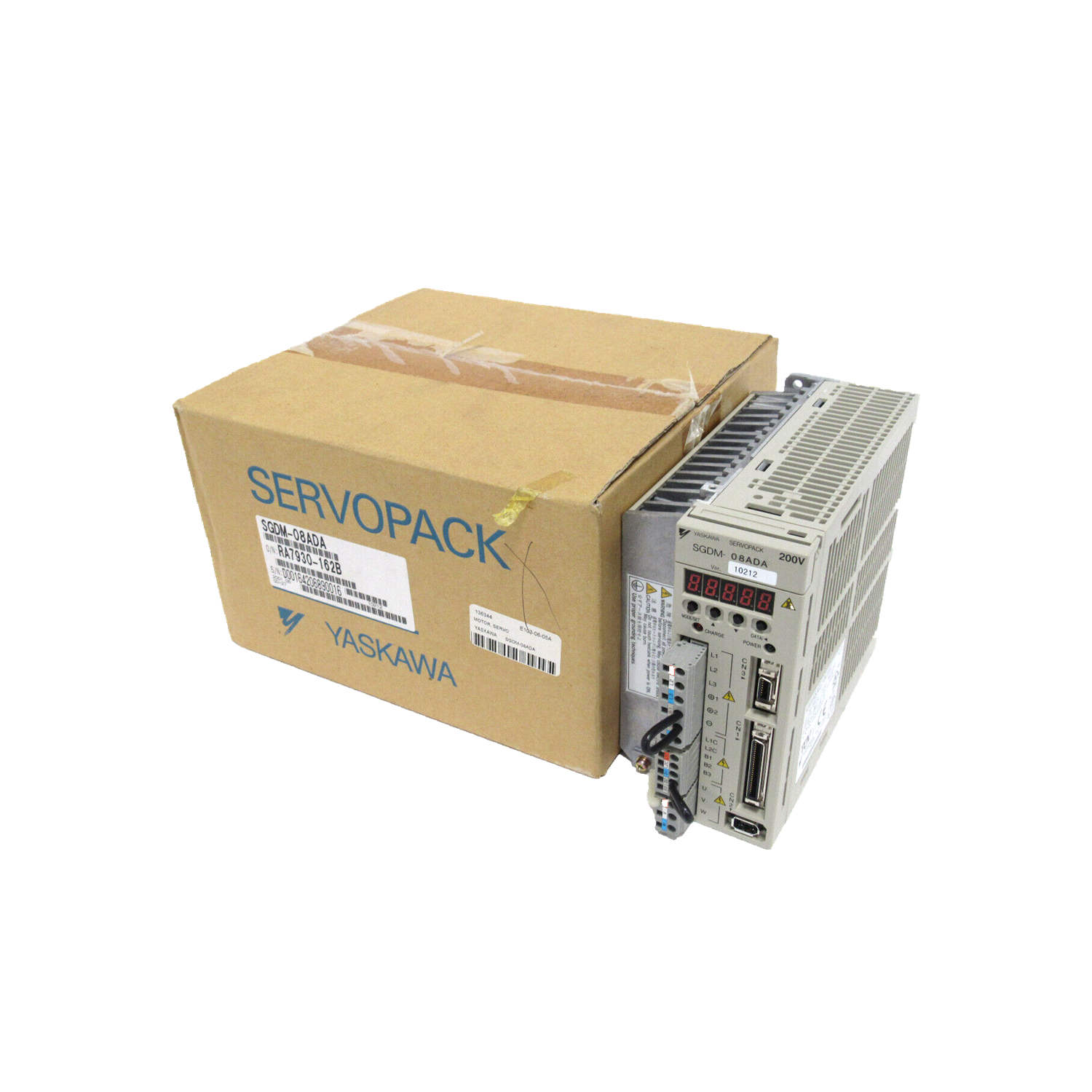

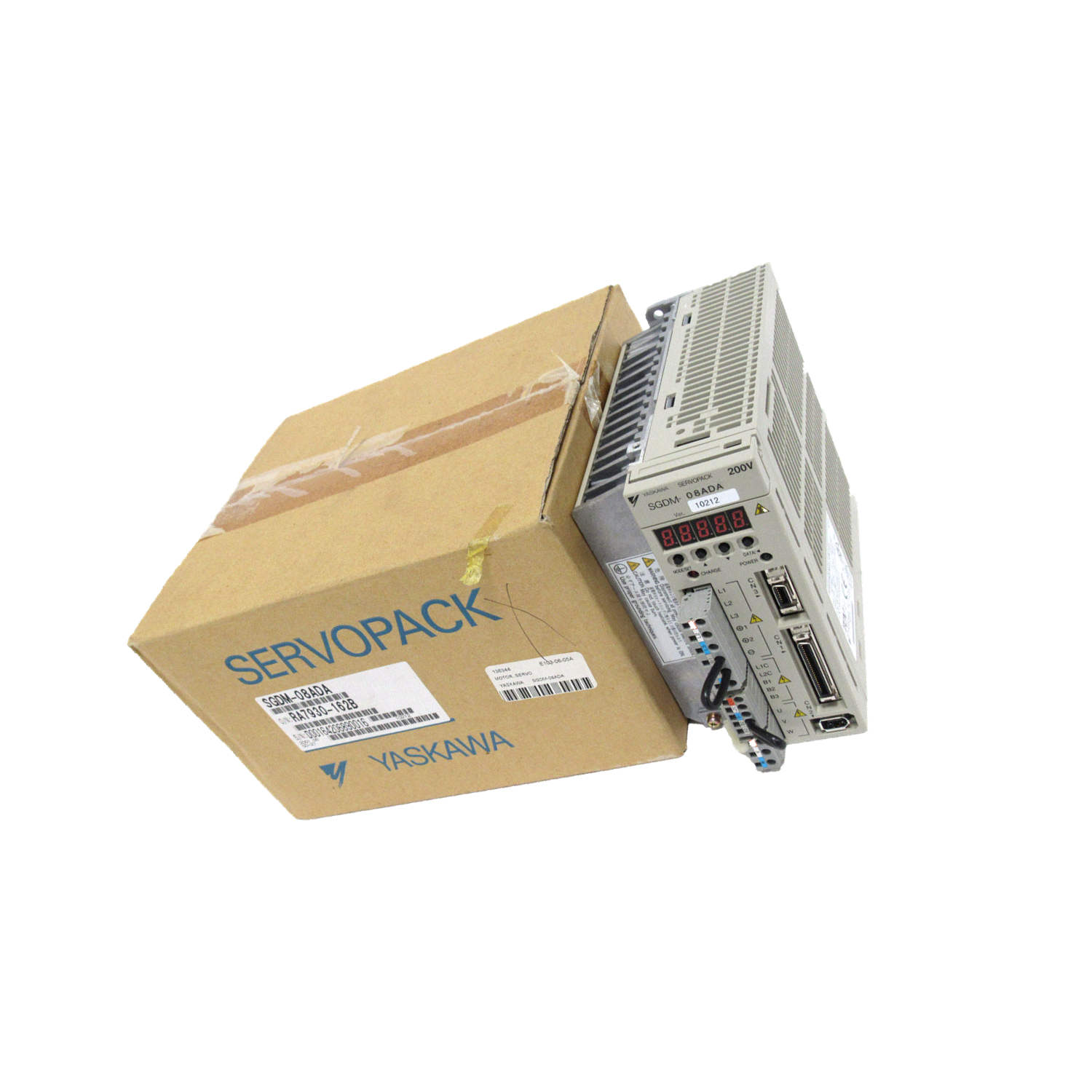

## Yaskawa SGDM-08ADA Servo Drive

The Yaskawa SGDM-08ADA is a high-performance servo drive from the SG Series. It delivers precise control for torque, speed, and position applications. This module operates on a three-phase 200V power supply and provides a current rating of 5.4 A. Engineers rely on this drive for robust and efficient motion control in industrial automation.

### Technical Specifications Analysis

The SGDM-08ADA offers an output voltage range of 0 to 230 VAC. It accepts input frequencies of 50/60 Hz and supports output frequencies from 0 to 400 Hz. When paired with a compatible servomotor, it delivers a rated output of 0.75 kW (1 HP). These specifications ensure reliable performance in demanding environments.

### Application Scenarios & Usage Methods

This servo drive excels in applications requiring accurate torque, speed, or position control. Common uses include CNC machinery, packaging equipment, robotics, and conveyor systems. Operators can integrate the drive with a PLC or motion controller for closed-loop feedback. The SGDM-08ADA supports both analog and digital command signals for flexible system design.

### Installation Guide & Packing List

Mount the drive in a clean, dry cabinet with proper ventilation. Ensure the three-phase 200V supply matches the drive's input requirements. Connect the servomotor according to the wiring diagram. The packing list includes the SGDM-08ADA drive unit and a quick-start manual. Additional cables and connectors may be ordered separately.

### Purchasing Advice

Verify your system voltage and current needs match the SGDM-08ADA specifications. This drive works best with Yaskawa servomotors rated for 0.75 kW. For applications requiring higher power, consider the SGDM series with larger current ratings. SpareTechPLC offers genuine Yaskawa products with warranty support.

### Repair & Maintenance Tips

Regularly inspect the drive for dust buildup and ensure cooling fans operate freely. Check all electrical connections for tightness. If the drive displays fault codes, consult the manual for troubleshooting steps. Avoid exposing the unit to moisture or extreme temperatures.

### Frequently Asked Questions

**Q1: What is the input voltage requirement for the SGDM-08ADA?**
A1: The drive requires a three-phase 200V power supply.

**Q2: What is the current rating of this servo drive?**
A2: The SGDM-08ADA has a current rating of 5.4 A.

**Q3: Can this drive control torque, speed, and position?**
A3: Yes, the model is designed for torque, speed, and position control.

**Q4: What is the maximum output frequency?**
A4: The output frequency ranges from 0 to 400 Hz.

**Q5: What servomotor power rating matches this drive?**
A5: It is rated for a 0.75 kW (1 HP) servomotor.

Attention: The above product information is sourced from the internet and cannot be guaranteed to be authentic. For specific product parameters and prices, please contact SpareTech PLC professionals in a timely manner.
