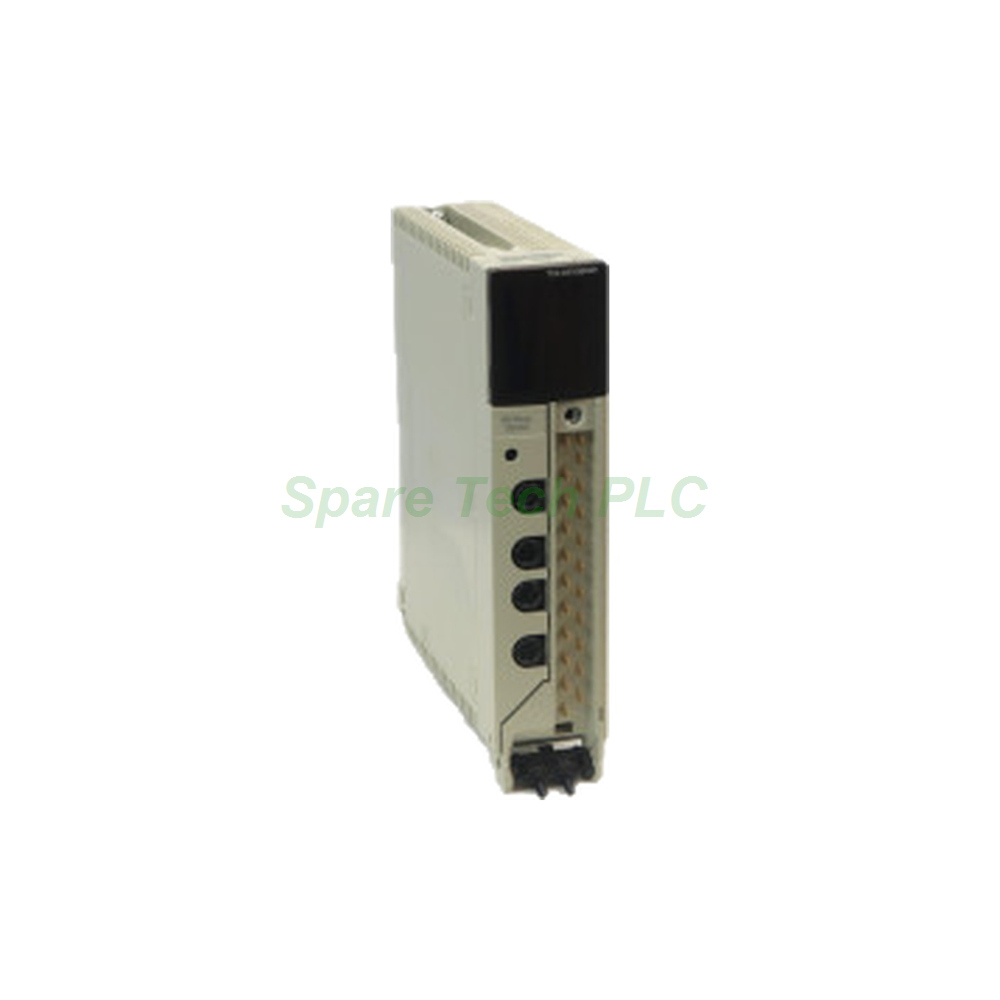

Schneider TSXDSY08T2 Discrete Output Module

Schneider TSXDSY08T2 Discrete Output Module for Modicon Premium

Product Introduction

The TSXDSY08T2 serves as a discrete output module within the Modicon Premium automation platform. This Schneider Electric unit drives field devices such as relays, contactors, and pilot lamps. Specifically, it offers 8 transistor outputs in a single group of eight channels. The module switches 24 V DC loads using PNP source logic for positive switching. Therefore, engineers apply it in fast machine cycles and process control cabinets.

Technical Specifications

The TSXDSY08T2 delivers 8 DC output channels built on transistor technology. Each channel supports up to 0.5 A, covering most small solenoid and relay loads. Additionally, the output voltage targets 24 V DC for common industrial field devices. The module needs only 1 slot on the Modicon Premium backplane. This single-slot footprint leaves room for extra I/O or communication cards in the rack.

Protection and Response Behaviour

Electronic overload and short-circuit protection safeguard every output against field faults. Moreover, the module trips automatically and recovers on reactivation after the fault clears. Response time reaches 0.5 ms typical, which supports very fast switching tasks. Channel-to-bus isolation holds 1500 V AC dielectric strength, blocking transients from the backplane. Besides, isolation resistance exceeds 10 MΩ at 500 V for reliable signal separation.

Electrical Parameters

Field supply for the TSXDSY08T2 runs at 24 V DC, while the backplane provides 5 V DC. Bus current consumption equals 55 mA at 5 V DC, which stays modest for an 8-point card. Power dissipation follows 1.0 W plus 0.75 W per output, depending on connected load. Consequently, cabinet thermal planning remains straightforward and predictable. First, confirm that your 24 V DC supply can feed the total load current.

Physical and Environmental Data

The module measures 140 × 35 × 80 mm in height, width, and depth. Besides, its weight is only 0.15 kg, which simplifies handling and spare-part storage. The TSXDSY08T2 carries an IP20 protection rating for indoor cabinet mounting. Meanwhile, it follows the same Modicon Premium environmental family standards. For detailed temperature and humidity limits, please contact our team directly.

Installation Guide

First, confirm that the Modicon Premium rack has one free slot for this TSXDSY08T2 module. Next, slide the unit into the backplane connector until it seats completely. After that, tighten the retaining screws to secure the module body. Then, wire the 24 V DC field loads to the screw terminals with correct PNP source polarity. Finally, assign the output addresses in Unity Pro and test all channels before startup.

Packaging List

• 1 x Schneider TSXDSY08T2 Discrete Output Module

• 1 x Anti-static Protective Bag

• 1 x Carton Packaging

Frequently Asked Questions

Q1: What output type does the TSXDSY08T2 provide?
A: The TSXDSY08T2 provides 8 transistor PNP source outputs rated at 24 V DC.

Q2: How much current can each channel handle?
A: Each output channel carries up to 0.5 A, enough for small solenoids and relays.

Q3: Does this module protect against short circuits?
A: Yes, electronic overload and short-circuit protection trip each output automatically.

Q4: How fast does the TSXDSY08T2 switch?
A: Response time reaches 0.5 ms typical, which suits very fast machine control sequences.
