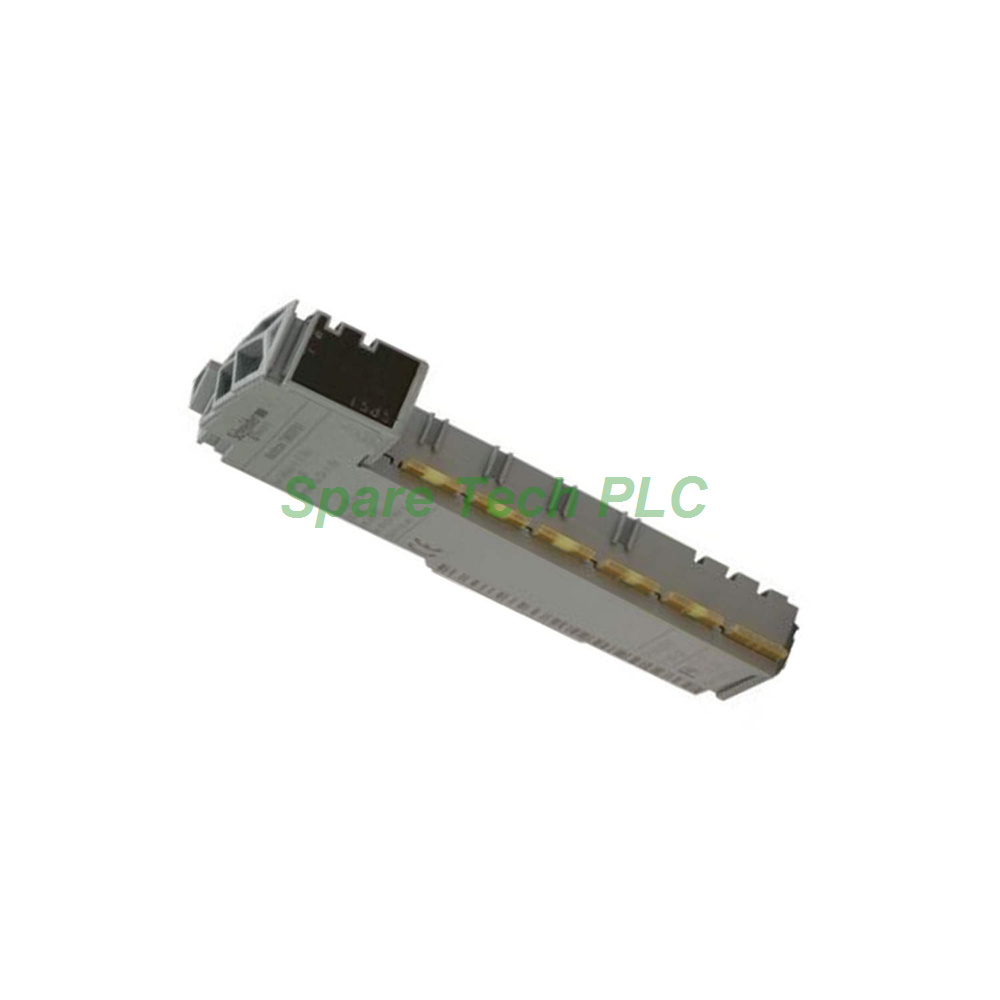

The TM5SPS1 power distribution module from Schneider Electric is a fundamental component for building a robust and efficient control system. As part of the Modicon TM5 range, this unit serves a critical role by distributing a stable 24V DC power supply to all connected I/O modules. Its compact, grey housing is engineered for standard DIN-rail mounting, making it an ideal choice for new installations and system upgrades. The TM5SPS1 is compatible with both logic controllers and motion controllers, providing the necessary power backbone for complex automation tasks.
The TM5SPS1 is designed for a rated supply voltage of 24V DC. It can supply a continuous current of 10A for the I/O power segment, guaranteeing ample power for multiple modules. Moreover, its internal power dissipation is a minimal 0.8W, making it highly energy-efficient. The module's own current consumption is ≤ 25 mA at 24V DC. To ensure system safety, the unit requires a 10A external fuse for short-circuit protection. Furthermore, the module is CE marked and complies with major international standards, including UL 508, CSA C22.2 No 142, and IEC 61131-2, ensuring global acceptance and reliability.
Durability is a key feature of the TM5SPS1. It operates reliably across a wide temperature range. For horizontal installation, it works from -10…55 °C without derating and up to 60 °C with a derating factor. For vertical installation, the operating range is -10…50 °C. Additionally, it withstands storage temperatures from -25…70 °C and relative humidity from 5% to 95% without condensation.
The module is built to handle industrial environments with high vibration resistance (3.5 mm at 5…8.4 Hz and 1 gn at 8.4…150 Hz) and shock resistance (15 gn for 11 ms). It also exhibits strong electromagnetic compatibility, featuring robust resistance to electrostatic discharge, fast transients, and surges, conforming to EN/IEC 61000-4-2, -4-4, and -4-5 standards. Consequently, the TM5SPS1 provides a stable power distribution solution even in harsh industrial settings.
Installing the TM5SPS1 is straightforward and follows standard Modicon TM5 procedures. Primarily, you must mount the unit onto a standard DIN rail. Begin by clipping the top of the module onto the rail and then snapping the bottom into place. After mounting, the module connects to the internal bus via its connector. Specifically, you need to supply a 24V DC power source to the designated terminals. Remember to install a 10A external fuse in the power line as a protective measure.
Here are the key steps for installation:
First, securely mount the TM5SPS1 module onto the DIN rail.
Next, connect the external 24V DC power supply to the input terminals.
Finally, integrate the module with the rest of the Modicon TM5 system by connecting the I/O modules to the power distribution bus.
When you purchase the TM5SPS1, the package includes the following items:
1x Schneider Electric TM5SPS1 Power Distribution Module
Quick Start Guide (if applicable)
We are committed to providing fast and reliable shipping for the TM5SPS1. Therefore, we offer worldwide shipping using leading courier services. The available shipping options are:
Fedex
UPS
DHL
These trusted carriers ensure your order arrives safely and on time, minimizing any potential downtime for your operations.
1. What is the primary function of the TM5SPS1 module?
The TM5SPS1 supplies and distributes a 24V DC power supply to all I/O modules within a Modicon TM5 automation system.
2. Which controllers are compatible with the TM5SPS1?
This power distribution module is fully compatible with Modicon M258 logic controllers and LMC058 motion controllers.
3. What external protection does the TM5SPS1 require?
For safe operation, you must always install a 10A external fuse in the 24V DC power circuit for short-circuit protection.
4. What are the mounting options for this power distribution module?
The TM5SPS1 is exclusively designed for standard DIN-rail mounting, a common and efficient method in industrial control cabinets.
5. What is the operating temperature range for the TM5SPS1?
In horizontal installation, it operates from -10…55 °C without derating. It can function up to 60 °C with a derating factor.
| Brand Name | |
| Model No. | TM5SPS1 |
| Product Type | Power Distribution Module |
