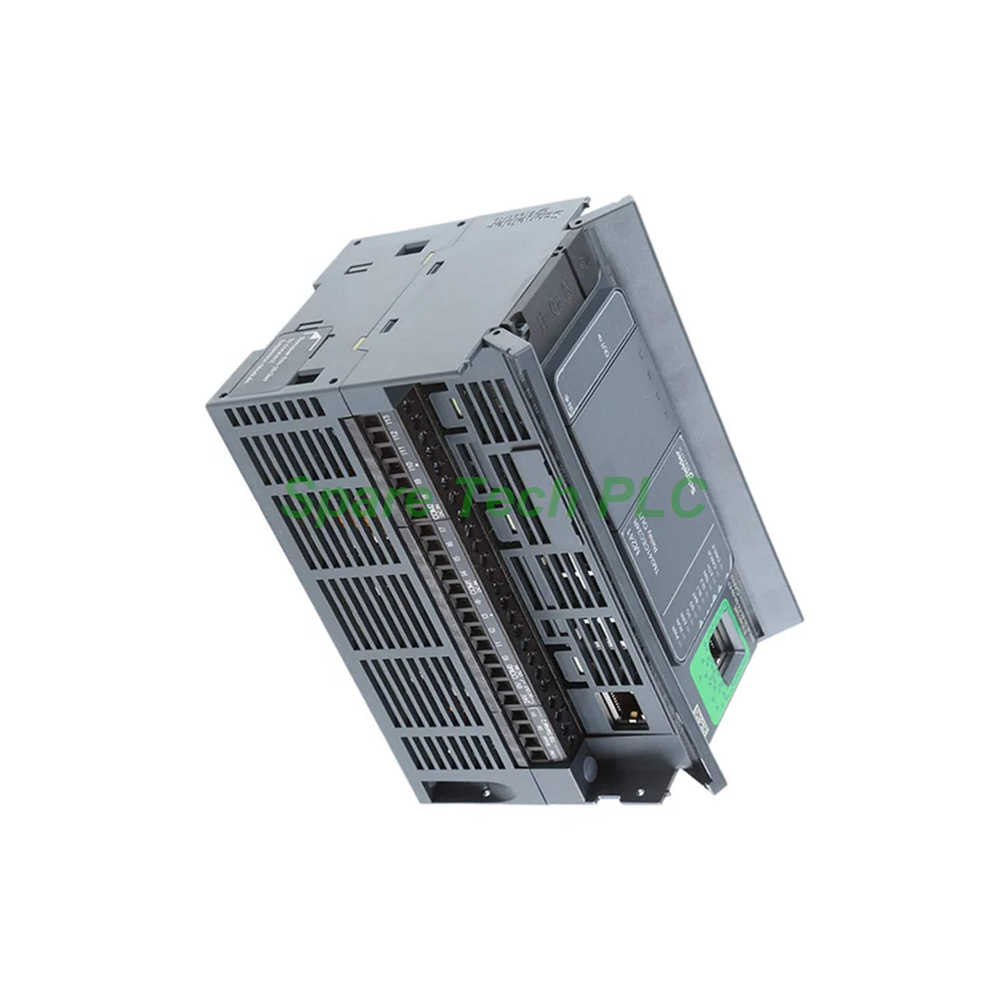

The TM241CEC24R controller represents a significant advancement in the Modicon M241 series. It serves as a compact yet powerful logic controller designed for complex machine control and motion applications. This unit offers a versatile mix of 24 discrete I/O points, including both relay and transistor outputs. Additionally, it features built-in Ethernet and CANopen master capabilities. Consequently, the TM241CEC24R provides a comprehensive solution for modern industrial automation.
The TM241CEC24R operates on a rated supply voltage of 100...240 V AC with a tolerance of 85 to 264V. Its robust I/O configuration includes 14 discrete inputs and 10 discrete outputs. Specifically, the outputs consist of 6 relay outputs and 4 fast transistor outputs. For precise motion control, the fast outputs support a 100 kHz frequency in Pulse/PLS mode. Meanwhile, the relay outputs can switch up to 2A at voltage ratings of 5...125 V DC or 5...250 V AC.
Furthermore, this controller has a substantial memory capacity. It includes 64 MB of system RAM and 128 MB of built-in flash memory for data backup. An optional SD card expands the data storage up to 16 GB. Finally, the TM241CEC24R incorporates a real-time clock, ensuring accurate time-stamping for event logs and scheduled tasks.
Connectivity is a key strength of the TM241CEC24R. First, it includes a built-in Ethernet port for high-speed networking, supporting Modbus TCP, Ethernet/IP, and web server functions. Next, the integrated CANopen master interface enables communication with up to 63 slave devices. Additionally, the controller provides two non-isolated serial links with RS232/RS485 support. For easy programming and diagnostics, it also features a USB port.
The TM241CEC24R supports a wide range of communication protocols, including Modbus client/server, OPC UA server, and SQL client. This versatility ensures seamless integration into most industrial networks. Consequently, the controller serves as a reliable central hub for data exchange and device control in a distributed automation system.
The TM241CEC24R excels in high-speed applications. It features 4 fast inputs capable of operating in HSC (High-Speed Counter) mode up to 200 kHz. These inputs support single-phase, pulse/direction, and A/B signal types. Moreover, the controller includes 4 fast outputs for PTO (Pulse Train Output) functions. These outputs can generate frequencies up to 100 kHz for precise axis control.
The integrated high-speed capabilities make the TM241CEC24R particularly suitable for positioning and servo control tasks. For instance, it can manage applications involving servo drives, stepper motors, and encoder feedback. Additionally, the controller offers high accuracy with a ±0.1% deviation at lower frequency ranges. Thus, it delivers reliable performance for demanding motion control requirements.
The TM241CEC24R is built for industrial environments with wide operating temperatures. It functions from -10…55 °C for horizontal installation and -10…50 °C for vertical mounting. The unit also withstands storage temperatures from -25 to 70 °C. Vibration resistance reaches 3.5 mm at 5…8.4 Hz and 3 gn at 8.4…150 Hz, demonstrating its durability in demanding settings.
This controller is fully compliant with international standards including UL 508, CSA C22.2, and EN/IEC 61131-2. It also holds marine certifications from LR, ABS, and DNV-GL. Moreover, its IP20 protection rating ensures safe operation within a control cabinet. These characteristics make the TM241CEC24R a robust choice for a wide range of industrial environments.
Installing the TM241CEC24R is a straightforward process. Primarily, the unit supports mounting on a standard DIN rail (TH35-15 or TH35-7.5) conforming to IEC 60715. Alternatively, you can mount it on a panel using a dedicated fixing kit.
Here are the key steps for installation:
First, secure the TM241CEC24R onto the DIN rail or mounting panel.
Next, connect the 100...240V AC power supply to the designated terminals.
Finally, wire the I/O devices to the removable screw terminal blocks for inputs and outputs.
When you purchase the TM241CEC24R, the package includes the following items:
1x Schneider Electric TM241CEC24R Logic Controller
Product documentation (quick start guide)
We provide fast and reliable shipping for the TM241CEC24R worldwide. Our shipping partners ensure your order arrives safely and promptly. We utilize the following courier services:
Fedex
UPS
DHL
1. What is the difference between the TM241CEC24R and other M241 models?
The TM241CEC24R specifically offers 24 mixed I/O with a combination of relay (6) and transistor (4) outputs. It also includes Ethernet and CANopen master, distinguishing it from lower-end variants.
2. Can the TM241CEC24R control servo drives directly?
Yes, the TM241CEC24R features fast outputs supporting PTO mode at 100 kHz. This capability allows direct control of servo drives and stepper motors.
3. What programming software is compatible with the TM241CEC24R?
You can program the TM241CEC24R using Schneider Electric's EcoStruxure Machine Expert software (formerly known as SoMachine). It supports the IEC 61131-3 programming languages.
4. How many expansion modules can the TM241CEC24R support?
The TM241CEC24R supports up to 7 expansion modules for local I/O architecture. For remote I/O architecture, it can handle up to 14 modules.
5. Does the TM241CEC24R support a web server for remote access?
Absolutely. The TM241CEC24R includes an integrated web server that supports remote visualization and system monitoring via a standard web browser.
