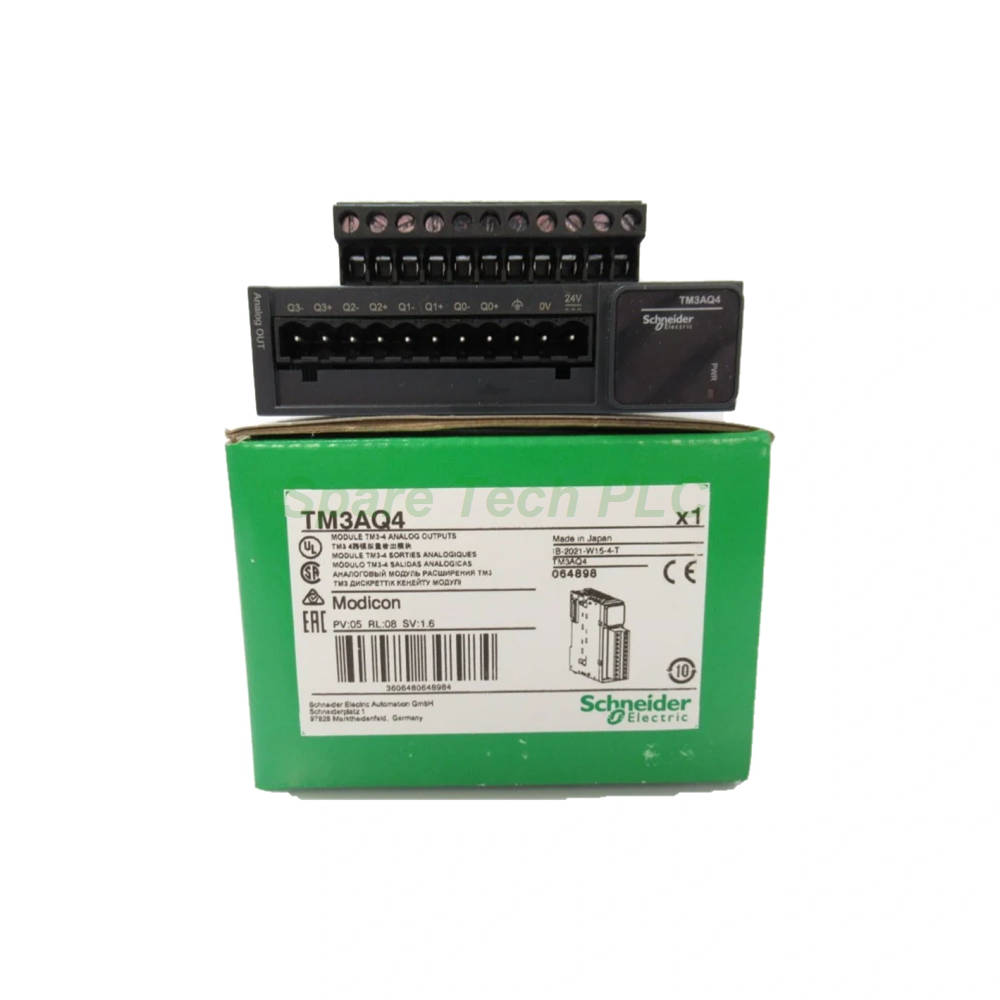

Schneider TM3AQ4 Analog Output Module 4-Channel

Product Introduction

The TM3AQ4 extends Schneider Electric's Modicon TM3 family with four analog output channels. This module delivers precise control signals to valves, drives, and positioners. Engineers choose it when compact PLC systems require multiple accurate current or voltage outputs. The unit supports 0–10 Vdc, ±10 Vdc, 0–20 mA, and 4–20 mA signals. Each channel configures independently through software.

Technical Specifications

Specifically, the TM3AQ4 provides 12-bit resolution across all output ranges. Accuracy reaches ±0.2% of full scale at 25 °C. Temperature drift stays within ±1% of full scale across the operating range. Conversion takes 1 ms plus 1 ms per channel plus one controller cycle. Output stabilization requires 1 ms. Isolation delivers 1500 V AC between output and supply, plus 500 V AC between output and internal logic. Diagnostics cover module status and bus status. The removable screw terminal block uses 5.08 mm pitch.

Mechanical and Environmental Parameters

Furthermore, the TM3AQ4 measures 90 × 23.6 × 70 mm (H×W×D). It weighs 0.115 kg. Operating temperature ranges from 0 to +55 °C. Storage temperature spans −25 to +70 °C. Protection rating is IP20. The module mounts on standard DIN rail (TH35-15 or TH35-7.5). A green PWR LED confirms bus power.

Installation Guide

First, mount the TM3AQ4 onto a DIN rail. Next, connect the expansion bus to the controller. Then, wire output signals using twisted-pair shielded cable. After wiring, configure each channel via EcoStruxure Machine Expert software. Finally, verify the PWR LED illuminates green. The module draws 50 mA at 5 V DC under full load. At 24 V DC, consumption reaches 80 mA under full load. Use a stable 24 Vdc supply through the TM3 bus.

Packaging List

• 1 × Schneider TM3AQ4 Analog Output Module

• 1 × Removable Screw Terminal Block

• 1 × Product Documentation

Shipping methods: Fedex, UPS, DHL.

FAQ

Q1: How many channels does the TM3AQ4 have?
The module provides 4 analog output channels. Each channel supports voltage or current signals independently.

Q2: What is the resolution of the TM3AQ4?
It offers 12-bit resolution. This delivers 4,096 data points for smooth output control.

Q3: Which PLC controllers work with the TM3AQ4?
It pairs with Modicon M221, M241, M251, and M262 controllers. These platforms accept TM3 expansion modules directly.

Q4: What signal types does the TM3AQ4 support?
Voltage options include 0–10 Vdc and ±10 Vdc. Current options cover 0–20 mA and 4–20 mA.

Q5: What is the conversion time for the TM3AQ4?
Total conversion requires 1 ms plus 1 ms per channel plus one controller cycle. Output stabilization adds 1 ms.
