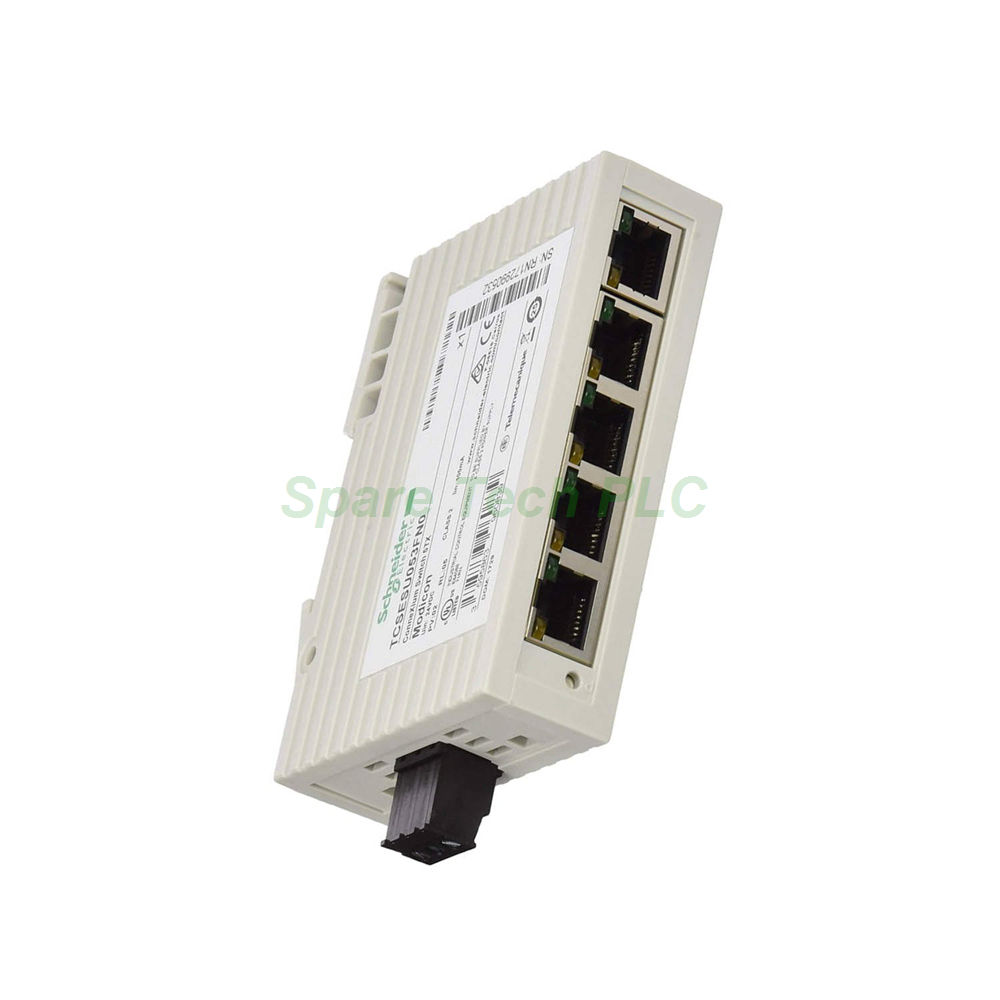

The TCSESU053FN0 belongs to the ConneXium product range. It is an Ethernet TCP/IP unmanaged switch designed for simple network connectivity. This model provides five 10BASE-T/100BASE-TX copper ports. It operates without any complex configuration requirements. Therefore, it suits small automation cells and distributed I/O applications perfectly. Additionally, this switch supports the Transparent Ready concept. Consequently, it ensures seamless communication between field devices. The device offers a cost-effective way to expand your industrial network.
The TCSESU053FN0 delivers essential networking functions reliably. First, it supports automatic negotiation of speed and duplex mode. This feature simplifies integration with various endpoint devices. Next, it includes Auto MDI/MDX on all ports. Therefore, you no longer need crossover cables for connections. The switch also performs automatic polarity change automatically. Thus, it minimizes installation errors significantly.
Furthermore, it handles storage and re-routing of received data efficiently. This ensures smooth and uninterrupted data transmission. All connections use shielded RJ45 connectors. The Schneider switch operates with CAT 5E twisted shielded pair cables. Its Ethernet services cover all basic switching needs. Meanwhile, the device supports unlimited cascading for network expansion. For this reason, it adapts easily to growing system requirements.
The power supply design offers both robustness and flexibility. Its rated supply voltage is 24 V DC. However, it accepts a wide range from 9.6 to 32 V DC (SELV). This flexibility allows integration with various industrial power sources. Power consumption is remarkably low at only 2.2 W. Consequently, it operates with excellent energy efficiency and minimal heat generation. The electrical connection uses a removable 3-way connector. For this reason, wiring and maintenance become quick and straightforward tasks.
The TCSESU053FN0 is engineered for dependable operation. Its ambient temperature range is 0 to 60 °C. Relative humidity can be 0 to 95% without condensation. This ensures consistent performance across diverse factory environments. The device carries an IP30 protection degree. Thus, it is protected against solid objects larger than 2.5 mm. Its compact dimensions save critical panel space. Specifically, it measures 25 mm wide, 114 mm high, and 79 mm deep. Product weight is just 0.113 kg. For this reason, the lightweight design simplifies DIN rail mounting considerably.
Mounting the unmanaged switch is quick and effortless. It is designed for standard 35 mm DIN rail installation. The compact 25 mm width offers a significant advantage. Indeed, it allows high-density mounting in crowded control cabinets. Local signalling aids diagnostics and troubleshooting efforts. One LED indicates the power supply status clearly. Additionally, each copper port has its own activity LED. There is also a dedicated LED for data rate indication (10 or 100 Mbit/s). Therefore, operators receive immediate visual feedback on network status.
Your package will contain the following items. Please verify the contents upon receipt.
TCSESU053FN0 Unmanaged Switch Unit
3-way Removable Power Connector
DIN Rail Mounting Hardware (Pre-attached)
Installation Instruction Sheet
Product Information Leaflet
Note: Cables and power supply units are not included. You must source these separately based on your application requirements.
We ensure fast and reliable delivery worldwide. All orders are shipped through our trusted logistics partners. Your shipment will be dispatched via Fedex, UPS, or DHL. We provide full tracking details upon shipment. This allows you to monitor your delivery in real time.
1. Can I use this switch in a daisy-chain topology?
Yes, absolutely. The TCSESU053FN0 supports unlimited cascading. You can connect multiple switches together to expand your network coverage.
2. Does this switch require any software configuration?
No, it does not. The Schneider TCSESU053FN0 is an unmanaged plug-and-play device. Simply connect power and network cables, and it starts working immediately.
3. What cable type should I use with this switch?
Use CAT 5E twisted shielded pair cables with shielded RJ45 connectors. This ensures optimal performance and noise immunity in industrial environments.
4. Is this switch suitable for power-sensitive applications?
Yes, it is highly suitable. With only 2.2 W power consumption, the TCSESU053FN0 is one of the most energy-efficient switches available. It is perfect for solar-powered or remote installations.
5. Can this switch handle full wire-speed forwarding on all ports?
Yes, it can. The device supports storage and re-routing of received data. It ensures non-blocking performance across all five ports simultaneously.
| Brand Name | |
| Model No. | TCSESU053FN0 |
| Product Type | Ethernet Unmanaged Switch |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
