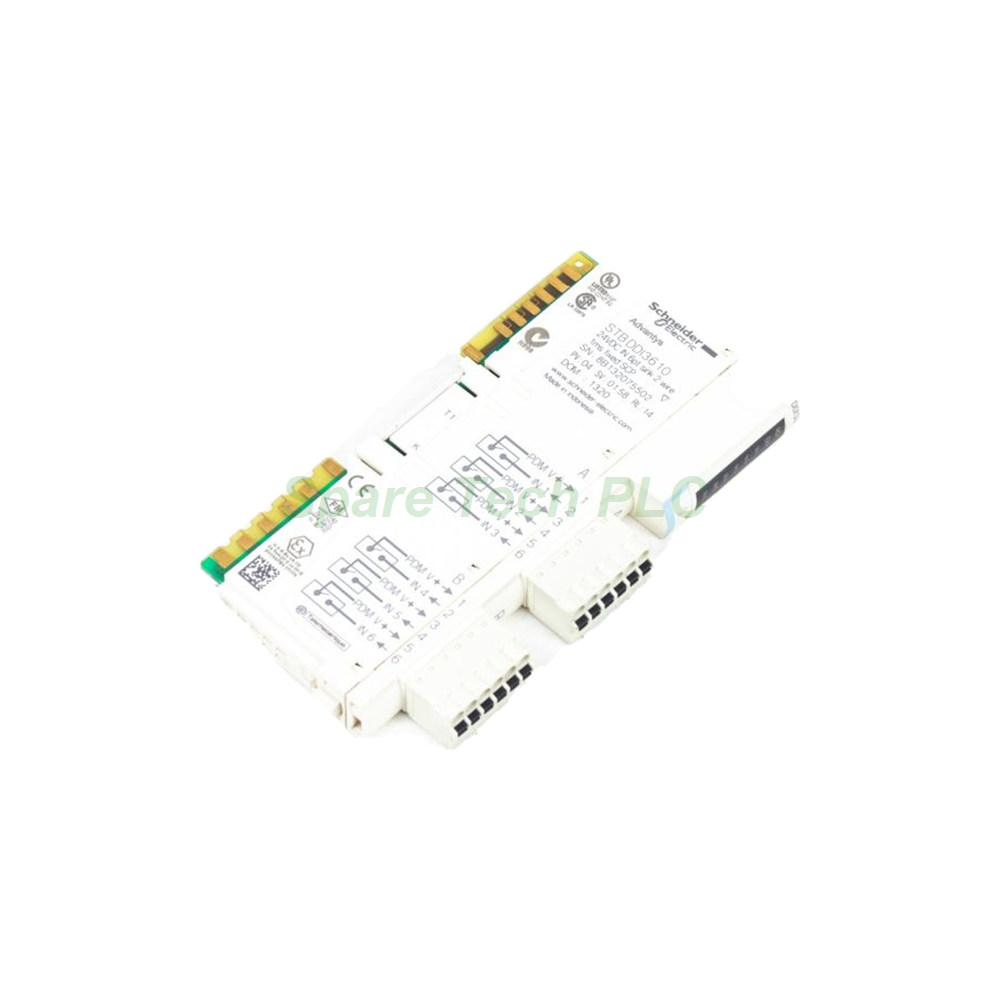

Schneider STBDDI3610 Advantys STB Input Module

Product Introduction

The STBDDI3610 belongs to Schneider Electric's Advantys STB distributed I/O family. This standard digital input module provides six sink-type channels for 24V DC signals. Engineers use it to connect two-wire sensors and switches to a fieldbus network through a network interface module. The module meets IEC/EN 61131-2 Type 1 specifications. Furthermore, it supports hot swapping so you can replace it without shutting down the system.

Technical Specifications

Input Characteristics

The STBDDI3610 offers six discrete input channels. Each channel accepts 24V DC nominal voltage. Specifically, the input logic is configurable for positive or negative operation. Moreover, the module uses two-wire field wiring for simple sensor connection. The fixed response time is 1 ms for both transitions. As a result, the module suits fast switching applications better than filtered alternatives.

Logic and Response

The input logic supports both positive and negative configurations. Additionally, the fixed 1 ms response time delivers consistent performance across all six channels. This fixed timing simplifies system design because you do not need to configure filters. Besides, the deterministic response helps with time-critical control loops. Meanwhile, all channels share the same response characteristics for predictable behavior.

Electrical Ratings

The STBDDI3610 draws 60 mA from the 5V DC logic bus. The module receives its 24V DC supply through a power distribution module. For instance, the STBPDT3100 is the recommended PDM for this setup. Furthermore, the field wiring accepts 0.5-1.5 mm² wire for flexible installation. This wire range covers most standard industrial sensor cables.

Isolation and Protection

Isolation between field wiring and the logic bus is rated at 1500V DC for one minute. In addition, the module offers reverse polarity protection. The input circuits feature resistor-limited protection. As a result, the STBDDI3610 handles field wiring faults more gracefully than unprotected modules.

Mechanical and Environmental Parameters

Physical Dimensions

The module uses the STBXBA1000 mounting base, which is 13.9 mm wide. The net weight is 0.112 kg. Additionally, the STBDDI3610 requires this base for installation. Specifically, the base provides the mechanical and electrical interface to the island.

Operating Conditions

The module operates within a temperature range of -25°C to 70°C. For storage, the range extends from -40°C to 85°C. The relative humidity tolerance reaches 95% at 60°C without condensation. Moreover, the module withstands vibration at 3 gn on a 35 x 7.5 mm DIN rail. Shock resistance is rated at 30 gn for 11 ms.

Protection Rating

The STBDDI3610 carries an IP20 protection rating per IEC 61131-2 class 1. Therefore, it suits installation inside control cabinets or protected enclosures. The pollution degree is 2 according to IEC 60664-1. Furthermore, the module operates at altitudes up to 2000 meters.

Installation Guide

Required Components

You need three items to install this module. First, use the STBXBA1000 mounting base. Next, connect a power distribution module such as the STBPDT3100. Finally, use field wiring connectors. The screw-type connector STBXTS1100 or spring clamp STBXTS2100 works well.

Mounting Steps

Begin by snapping the STBXBA1000 base onto a DIN rail. Next, seat the STBDDI3610 onto the base and press firmly until it locks. Then, wire your sensors to the connector terminals using 0.5-1.5 mm² wire. After that, attach the connector to the module. Finally, verify the green RDY LED illuminates to confirm proper power-up.

Hot Swapping Procedure

The module supports hot swapping with standard NIMs. However, you must follow safety procedures. First, ensure the system permits live module replacement. Next, release the module from the base. Then, slide the replacement unit into position. Finally, verify all channel LEDs respond correctly.

Packaging List

• 1 x STBDDI3610 Digital Input Module

• Standard protective packaging

FAQ

What does the STBDDI3610 do?

It provides six digital input channels for 24V DC sink signals in an Advantys STB island. The module converts two-wire field sensor signals into data for the network interface module.

Can I replace the STBDDI3610 while the system runs?

Yes, the module supports hot swapping with standard NIMs. However, you must follow your site's safety procedures for live equipment replacement.

What base and PDM does the STBDDI3610 need?

The STBDDI3610 requires the STBXBA1000 mounting base. Additionally, it works with the STBPDT3100 power distribution module.

How fast does the STBDDI3610 respond?

The module has a fixed 1 ms response time for both off-to-on and on-to-off transitions. This fixed timing simplifies system design without filter configuration.
