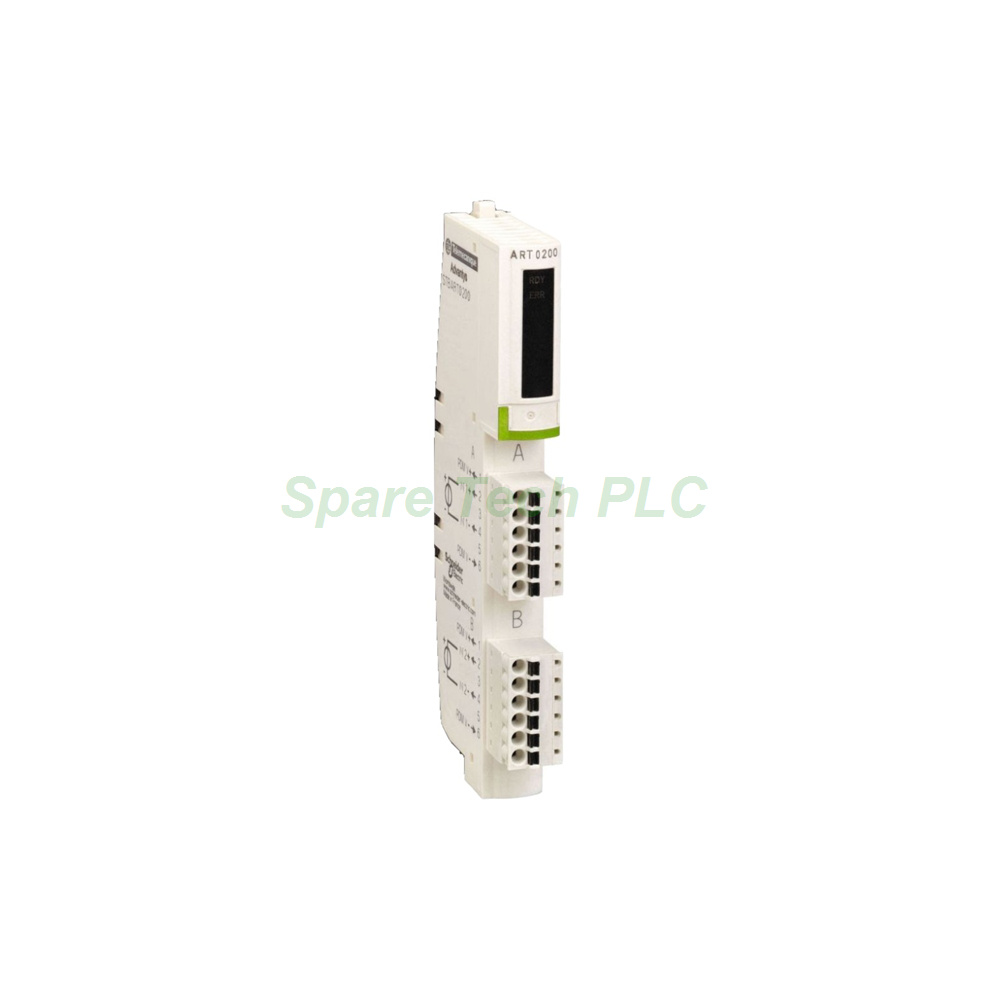

Schneider STBART0200 Advantys STB RTD/TC Analog Input Module
Product Introduction
The STBART0200 belongs to the Schneider Electric Advantys STB distributed I/O platform. This standard analog input module provides two individually configurable channels for temperature and low-level signals. Furthermore, it accepts RTD sensors, thermocouples, and ±80 mV sources on the same hardware. The module delivers 15-bit plus sign resolution, which suits precise process measurement tasks. Additionally, 1500V AC isolation between field and bus protects connected equipment from electrical noise. Because the product is discontinued and superseded by the Modicon X80 range, buyers should verify availability before ordering.
Technical Specifications
The STBART0200 module offers two input channels, each configurable on its own. Specifically, it supports RTD types Pt100, Pt1000, Ni100, Ni1000, and Cu10 in 2-wire, 3-wire, or 4-wire mode. Moreover, it reads thermocouple types B, E, J, K, R, S, and T. The same channel also accepts ±80 mV signals for direct millivolt measurement. Resolution reaches 15 bits plus sign, which supports fine signal discrimination. Additionally, the module tolerates up to ±7.5V DC without damage. Isolation reaches 1500V AC field-to-bus, protecting the bus side from field faults. Hot swapping is supported, so maintenance stays simple.
Electrical and Mechanical Parameters
The module receives 24V DC supply voltage through a PDM. The STBART0200 fits an STBXBA1000 I/O base with a 13.9 mm width. Besides, the compatible PDM is the STBPDT3100 (24V DC). The protection rating is IP20, so the module suits cabinet-mounted installations. Operating and storage temperature data are not available from the manufacturer. Therefore, users should confirm thermal limits with Schneider Electric or test under actual conditions.
Installation Guide
First, mount the STBXBA1000 base onto the DIN rail. Next, connect the STBPDT3100 PDM to supply 24V DC power. Then, wire the RTD, thermocouple, or mV signals to the two input channels. After that, insert the STBART0200 module into the base. Because hot swapping is supported, you can install or remove the module while the system runs. However, always follow local electrical codes and plant safety procedures. Finally, configure each channel in the Advantys configuration software and verify readings.
Packaging List
1 x STBART0200 RTD/TC Analog Input Module
1 x Protective Anti-Static Bag
1 x Carton Box with Foam Insert
1 x Quick Start Leaflet
Shipping is available via Fedex, UPS, and DHL.
FAQ
Q1: What sensor types does the STBART0200 support?
A: It supports RTD, thermocouple, and ±80 mV signals on two individually configurable channels.
Q2: Which thermocouple types work with this module?
A: It reads B, E, J, K, R, S, and T thermocouples.
Q3: Is the STBART0200 still in production?
A: No, Schneider Electric discontinued it and replaced it with the Modicon X80 range.
Q4: Can I replace the STBART0200 while the system runs?
A: Yes, hot swapping is supported, so online replacement is possible.
Q5: What base and PDM does this module need?
A: It requires the STBXBA1000 base and the STBPDT3100 PDM.
