Schneider BMXSDO1602 Safety Output Module 16-Ch

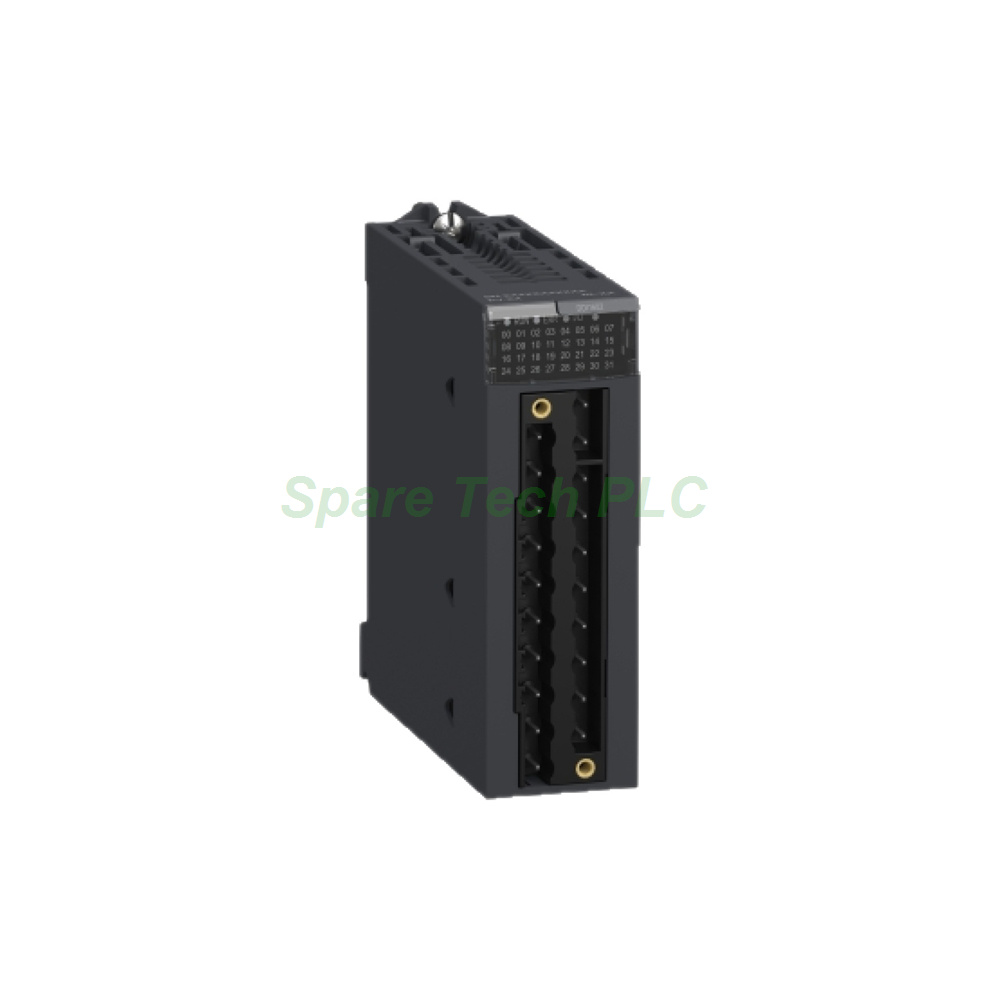

Schneider Electric BMXSDO1602 Safety Discrete Output Module

Product Introduction

The BMXSDO1602 belongs to the Modicon X80 platform from Schneider Electric. This module delivers 16 safety discrete output channels for industrial control systems. Furthermore, it carries a SIL3 rating under IEC 61508 and PLe under ISO 13849-1. As a result, engineers deploy it in demanding safety applications across many industries.

Technical Specifications

Channel Configuration and Signal Handling

First, the module provides 16 discrete output channels. Each channel switches a 24 V DC load. Meanwhile, channel-to-channel isolation protects against cross-talk and fault propagation. This design keeps independent circuits electrically separated. Therefore, a fault on one channel will not affect its neighbors.

Diagnostics and Safety Rating

Next, per-channel diagnostics give operators real-time status data. Specifically, the module reports open-circuit, short-circuit, and channel faults. Additionally, it meets SIL3 requirements under IEC 61508. Besides, it achieves PLe under ISO 13849-1. These ratings make the module suitable for emergency stop, interlock, and safety relay circuits.

Electrical Parameters

Moreover, the module draws 2.4 W of power. It also consumes 100 mA of bus current at 24 V DC. The supply voltage is 24 V DC, delivered through the backplane or the field. In addition, the design supports standard X80 rack power distribution.

Mechanical and Environmental Parameters

The module measures 100 × 28 × 93 mm (H×W×D). It weighs 0.16 kg, so it fits compact cabinet layouts. The operating temperature range spans 0°C to +60°C. Meanwhile, storage temperature ranges from -25°C to +70°C. Relative humidity tolerance sits between 5% and 95%, non-condensing. Finally, the protection rating is IP20.

Installation Guide

Mounting Steps

First, verify that the X80 rack has sufficient free slots. Next, align the module with the rack guides. Then, slide it into position until the connector seats fully. After that, tighten the retaining screw to secure the unit.

Wiring and Commissioning

Additionally, connect field wiring to the terminal block. Confirm that each output drives the correct 24 V DC load. Furthermore, configure the channel parameters in the M580 safety CPU project. Finally, run a functional test on every channel before startup. The BMXSDO1602 works only with X80 racks and M580 safety CPUs.

Packaging List

One Schneider Electric BMXSDO1602 safety discrete output module
One terminal block
One product documentation sheet

Shipping

We ship all orders through Fedex, UPS, and DHL. Delivery times vary by destination and service level.

FAQ

Q1: Which PLC platforms support the BMXSDO1602?
A: The module works with Modicon X80 racks and M580 safety CPUs. It does not operate with older Quantum or Premium systems.

Q2: What safety integrity level does this module achieve?
A: It reaches SIL3 under IEC 61508 and PLe under ISO 13849-1. Therefore, it suits high-risk safety functions.

Q3: Does the module offer channel-to-channel isolation?
A: Yes, every channel is isolated from its neighbors. This limits fault propagation between output circuits.

Q4: What is the power consumption of the BMXSDO1602?
A: The module consumes 2.4 W and draws 100 mA at 24 V DC.

Q5: How many channels does the module provide?
A: It provides 16 safety discrete output channels, each rated for 24 V DC operation.
