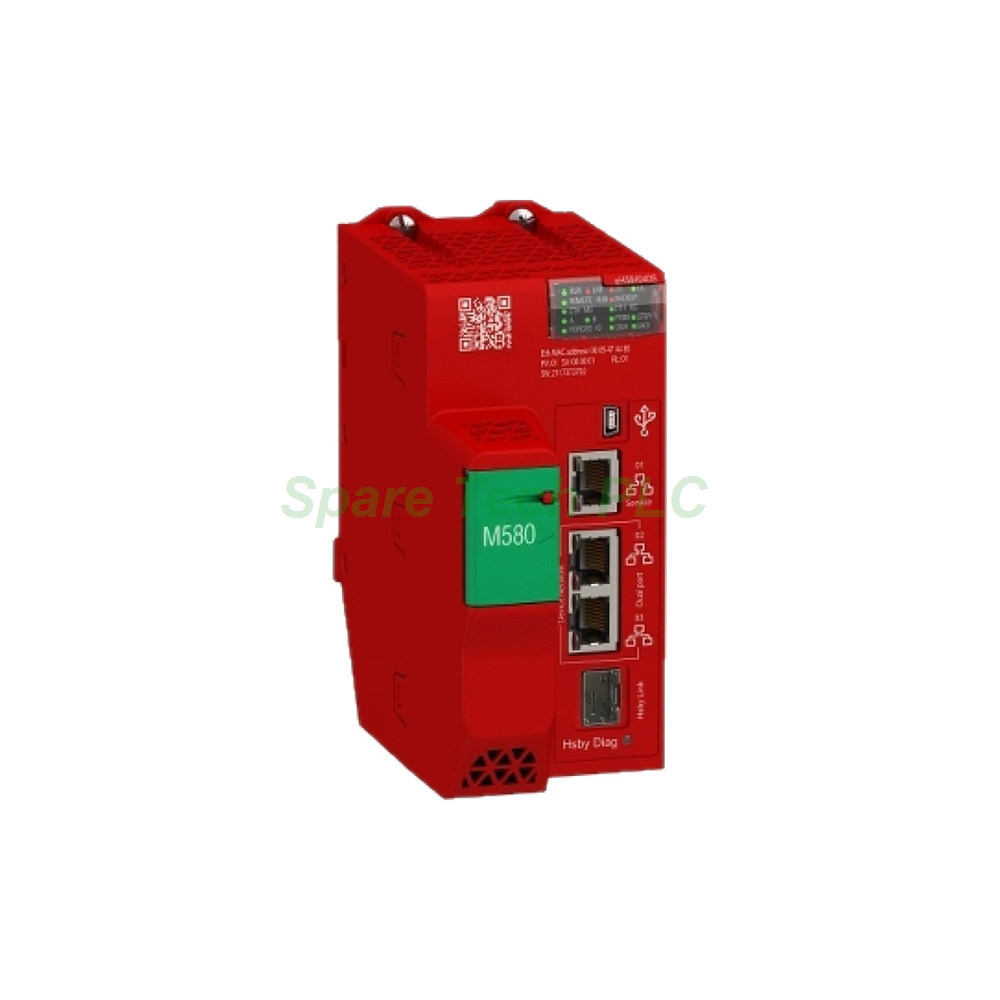

Schneider BMEH584040S Modicon M580 Safety CPU

Product Introduction

The BMEH584040S stands as a flagship redundant Hot Standby safety processor within the Schneider Electric Modicon M580 ePAC family. Specifically, this module achieves SIL3 certification according to IEC 61508 and IEC 61511 standards. It is engineered to handle both standard process control and critical safety functions simultaneously. As a result, system architects can consolidate separate safety and control systems into one unified architecture. This reduces spare parts inventory and simplifies engineering training requirements. Furthermore, the BMEH584040S provides a scalable solution for industries requiring high availability. Applications include oil and gas, water treatment, and pharmaceutical manufacturing.

Technical Specifications

Processing and Memory Architecture

The processor runs on an ARM dual-core architecture with a 600 MHz clock speed. Regarding program storage, the module provides 16 MB of integrated RAM for process programs. Additionally, it allocates 4 MB of dedicated RAM for safety programs. Data memory includes 2048 kB for process data and 1024 kB for safety data. For extended data storage, a 4 GB flash expansion slot supports optional SD cards. The execution performance reaches 40 Kinst/ms for Boolean instructions and 30 Kinst/ms for mixed Boolean and arithmetic operations.

I/O Capacity and Backplane Support

This CPU manages up to 16 remote I/O racks using the X80 or Quantum I/O platforms. It also supports 61 distributed devices via the Ethernet device network. The module occupies 2 slots on a compatible X80 Ethernet backplane. Compatible rack sizes include 4, 6, 8, and 12 slots. Installation requires slots 00 and 01 when paired with a coprocessor.

Communication Interfaces

Three Ethernet ports are integrated directly into the module. Two ports serve the RIO and DIO networks using Modbus TCP/IP and EtherNet/IP protocols. One dedicated Ethernet port handles Hot Standby synchronization between processors. A separate RJ45 service port and USB Mini-B port facilitate local programming and diagnostics. The CPU also supports PROFIsafe over PROFINET for safety device integration. X80 communication modules can be added for expanded network capabilities.

Mechanical and Environmental Parameters

The physical dimensions measure 100 × 56 × 93 mm (H × W × D). Power consumption is rated at 8.0 W with a bus current draw of 330 mA at 24 V DC. The operating temperature range spans 0°C to +60°C, while storage tolerates -25°C to +70°C. Relative humidity should remain between 5% and 95% without condensation. The module carries an IP20 protection rating and features conformal coating for harsh environments. Vibration resistance is rated at 3 gn and shock resistance at 15 gn.

Installation Guide

Step 1: Prepare the Rack

First, verify that all power sources are disconnected before beginning installation. Confirm that the X80 Ethernet backplane is properly mounted. Remove the protective covers from the target slot connectors.

Step 2: Position the Module

Next, align the positioning pins on the rear of the BMEH584040S with the corresponding holes on slots 00 and 01. Tilt the module slightly toward the top of the rack during insertion.

Step 3: Secure the Module

Once positioned, press the module firmly into the backplane connector. Tighten the two screws located at the top of the CPU. The recommended torque ranges from 0.4 to 1.5 N·m.

Step 4: Verify Connections

Finally, connect the Ethernet cables to the designated RIO, DIO, and Hot Standby ports. Confirm that any optional SD card is properly seated and the access door is closed before applying power.

Packaging List

• 1 × Schneider BMEH584040S Modicon M580 Safety CPU Module

• 1 × Protective connector cover set

• 1 × Quick start documentation (installation instructions)

Shipping via FedEx, UPS, or DHL.

FAQ

Q: What does the "S" suffix indicate on the BMEH584040S?

A: The "S" designation identifies this module as a certified safety processor. Specifically, it meets SIL3 requirements for safety integrity according to IEC 61508. Standard M580 processors without the "S" suffix do not carry this safety certification.

Q: Can the BMEH584040S operate as a standalone unit?

A: Yes, the module supports both standalone and Hot Standby configurations. In standalone mode, it functions as a safety processor without redundancy. For high-availability applications, two BMEH584040S modules pair together in a Hot Standby architecture.

Q: Which programming software is required?

A: Programming uses EcoStruxure Control Expert, formerly known as Unity Pro XL. This software handles both process control logic and safety application development within one environment.

Q: How many Ethernet communication modules can the CPU support?

A: The processor accommodates up to 4 Ethernet communication modules in the local rack. Additionally, 16 AS-Interface modules can be configured for distributed safety and control applications.

Q: What makes this module suitable for safety-critical applications?

A: The BMEH584040S features dual execution architecture with independent safety and process cores. It includes embedded cybersecurity functions such as IPSec, firewall, and Achilles Level 2 certification. These features protect against both operational failures and network-based threats.
