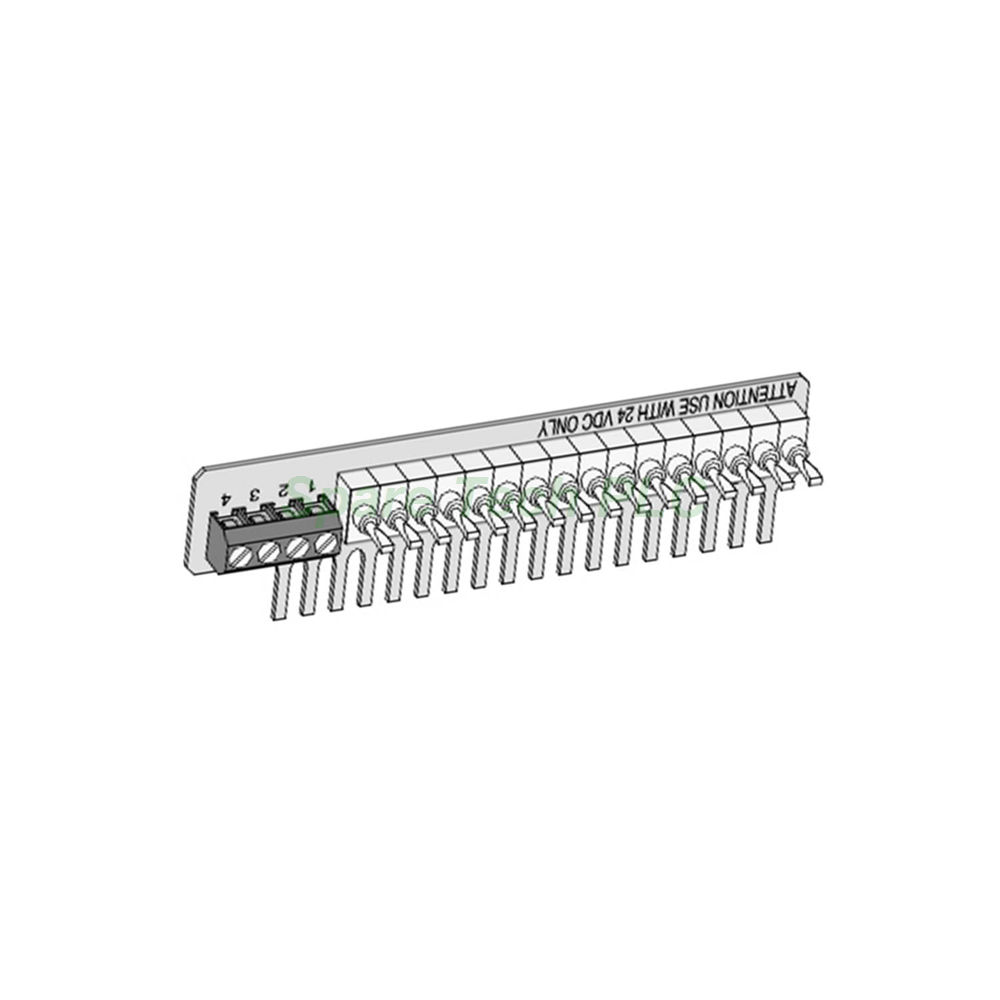

The 170BSM01600 from Schneider Electric serves as a dedicated input simulator for the Modicon Momentum automation platform. This accessory simplifies the testing and commissioning of discrete I/O bases by providing 16 simulated input channels. Each channel operates at a standard 24 V DC voltage, replicating real field device signals. Furthermore, its compact design and DIN rail mounting capability make it easy to integrate into existing control cabinets. The inclusion of LED indicators allows technicians to monitor channel activity at a glance. Therefore, this simulator proves invaluable for system validation and troubleshooting tasks.
This section details the core technical attributes of the Schneider Electric 170BSM01600. The unit functions as a discrete input simulator with a total of 16 channels. Its discrete input voltage is rated at 24 V DC, matching the standard voltage levels used across the Momentum series. Local signalling is provided by 7 LED indicators, which display channel status and overall operational health. The mounting method employs standard DIN rail installation, ensuring quick and secure attachment. Additionally, the device operates within an ambient temperature range of -20°C to 55°C. For storage, it withstands temperatures from -40°C to 75°C, offering excellent resilience for inventory and transport.
The 170BSM01600 demonstrates robust environmental adaptability for a testing accessory. It tolerates relative humidity levels of up to 95% (non-condensing) , allowing use in moderately humid plant environments. However, it is important to note that this simulator is not suitable for environments containing corrosive gases, as such conditions may compromise its long-term performance. The unit is constructed from materials that resist normal industrial contaminants, ensuring reliable operation in clean, dry automation cabinets. Therefore, users should assess their installation environment carefully before deployment. For optimal results, install this simulator in a well-ventilated area away from direct heat sources or chemical fumes.
The Schneider 170BSM01600 features a lightweight and space-efficient design that facilitates easy integration. It weighs just 0.45 kg (1 lb) , placing minimal stress on mounting rails. The unit's compact dimensions allow it to fit comfortably alongside other Momentum components in crowded panels. Its DIN rail mounting mechanism enables tool-less installation, significantly reducing setup time. The front panel provides clear labelling for each of the 16 channels, simplifying wiring and channel identification. Consequently, technicians can quickly configure this simulator for various test scenarios without complex assembly procedures.
Installing the 170BSM01600 follows a simple and logical process. First, ensure that the system power is turned off before beginning any installation work. Next, mount the simulator onto a standard DIN rail by clipping it securely into position. Then, connect the wiring from the simulator channels to the corresponding terminals on the discrete I/O base being tested. After that, power up the system and observe the LED indicators to confirm that all channels are functioning correctly. Finally, perform a channel-by-channel validation to ensure each simulated input triggers the expected response in the PLC program. For best results, use colour-coded wires to distinguish between different channels and maintain clear documentation of the test setup.
Your shipment of the 170BSM01600 includes the following items:
Input simulator unit (1 pc)
Product instruction sheet (paper copy)
All orders for the Schneider Electric 170BSM01600 are dispatched using premium courier services. We primarily ship via Fedex, UPS, or DHL to ensure fast and traceable delivery. Consequently, you can expect your package within 3 to 5 business days for most international destinations. Each parcel is securely packaged to prevent damage during transit.
1. What is the primary purpose of the 170BSM01600?
This input simulator is designed to test and validate discrete I/O bases within the Modicon Momentum system by generating simulated 24 V DC input signals.
2. How many channels does the 170BSM01600 provide?
The unit offers 16 discrete input channels, each operating at 24 V DC.
3. What type of mounting does the 170BSM01600 support?
It mounts directly onto a standard DIN rail, enabling quick and secure installation in control cabinets.
4. What are the operating temperature limits for the 170BSM01600?
The simulator operates reliably between -20°C and 55°C, with storage capability from -40°C to 75°C.
5. Can the 170BSM01600 be used in environments with corrosive gases?
No, this device is not suitable for locations containing corrosive gases, as they may damage its internal components and affect performance.
