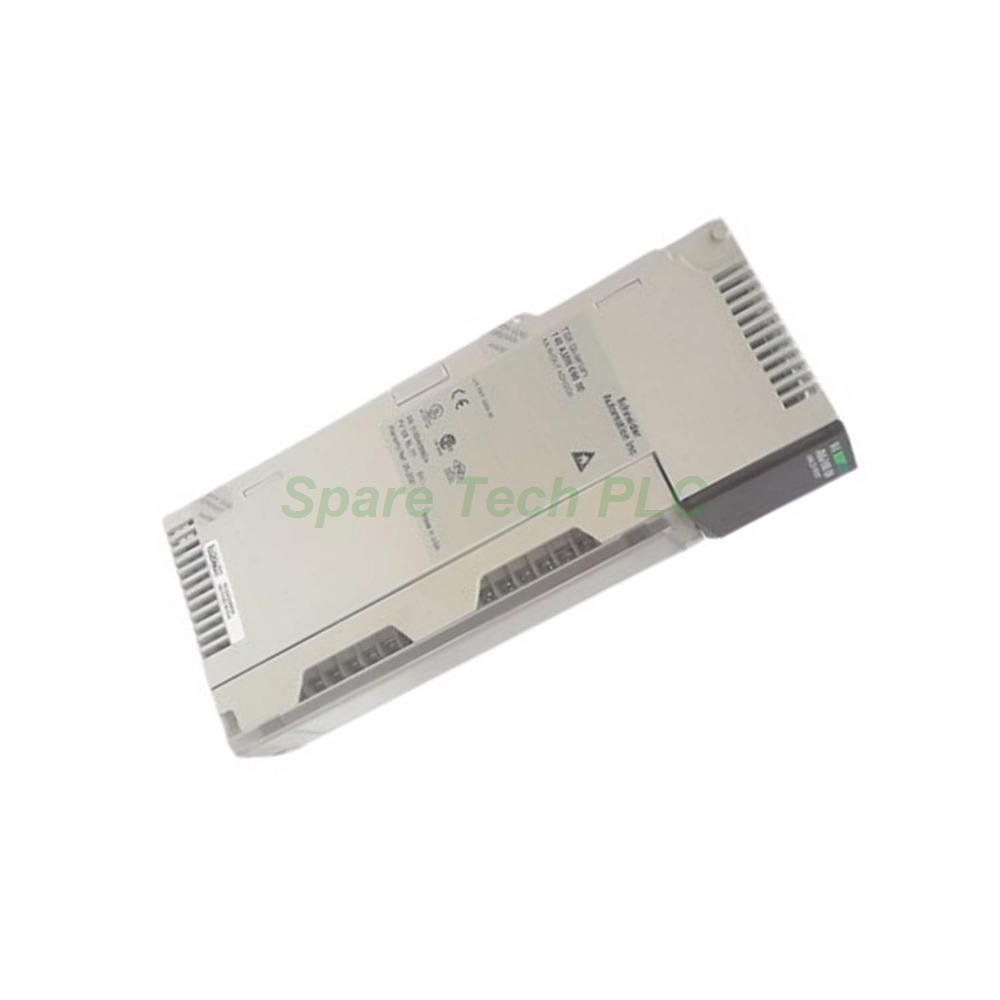

The 140AMM09000C is a high-quality analog input module. It works inside the Modicon Quantum automation platform. This module converts real-world analog signals into digital data. You can use it for temperature, pressure, or flow monitoring.
Its filter reduces high-frequency noise effectively. The filter type is a single pole low pass. It operates at 21 Hz. Therefore, the signal remains clean and stable. This module uses five input words for data processing. Additionally, it creates two output words for communication.
The 140AMM09000C requires a bus current of 350 mA. This ensures stable operation inside the rack. Many engineers trust this model for critical tasks. Its compact design saves space in the control cabinet.
Number of analog inputs: 4
Filter type: Single pole low pass
Frequency: 21 Hz
Input words: 5
Output words: 2
Bus current: 350 mA
Specifically, the four analog inputs support various sensors. Each channel processes signals with high accuracy. The built-in filter removes unwanted noise above 21 Hz. Meanwhile, the five input words store conversion results. The two output words send status or configuration data.
Moreover, the 140AMM09000C integrates seamlessly with Quantum backplanes. It does not require external power for signal conditioning. The module’s firmware handles all linearization internally.
The operating temperature ranges from 0°C to 40°C. This module performs reliably in most industrial rooms. It can also handle non-condensing humidity up to 80%. For storage, the same humidity limit applies.
Furthermore, the maximum operating altitude is 1000 meters above sea level. Do not use it above this height without derating. The module weighs only 0.3 kg. Its compact body allows easy handling.
1. What PLC series works with the 140AMM09000C?
This module is designed exclusively for the Modicon Quantum series from Schneider Electric. It does not fit other PLC families like Modicon M340.
2. Can I use this module at an altitude above 1000 meters?
Schneider recommends keeping operation below 1000 meters. Higher altitudes may reduce cooling efficiency and affect accuracy.
3. How do I clean the analog signal using this module?
The internal single pole low pass filter cuts noise above 21 Hz. For lower frequency noise, add external filtering or shielding.
4. What happens if the bus current exceeds 350 mA per slot?
The power supply may overheat or cause unexpected resets. Always calculate total rack current before adding the 140AMM09000C.
5. Does the module support both voltage and current inputs?
Yes, it accepts standard analog signals. You must configure the input type via wiring and software settings. Refer to the user manual for details.
| Brand Name | Schneider Electric |
| Model No. | 140AMM09000C |
| Product Type | Analog Input Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
